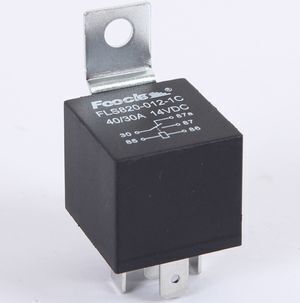

5 pin 12volt 40 amp with bracket auto relay

Supplier: Zhejiang Feileisi Electrical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ross Wang
Price: $0.30 / >=25 pieces
Min. Order: 25 pieces

Click here to contact

Product details

Mechanical Llife:	1000000 Cycles;	Contact Form:	1A, 1B, 1C, 1U, 2A;
Brand Name:	Foocles;	Rated Current:	40A;
Rated Voltage:	DC12V/24V;	Model Number:	FLS820-2;
Contact Material:	AgSno2;	Max,Operating Current:	40A;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Electrical Life:	100000 Cycles;
Nominal Operating Power:	1.6W, 1.8W;	Warranty:	1;
Operate/Release Time:	10ms/10ms;	Car Make:	universal;
Place of Origin:	Zhejiang China;	Max.Operating Voltage:	27VDC;
Supply Ability:	500000 Piece/Pieces per Month;	Port:	Ningbo;
Ambient Temperature:	-40°C~+85°C;	Packaging Detail:	25pcs/box 500pcs/ctn 32.532.529.5CM 19KG/21KG;
Voltage:	12V;

car vehicle auto 12v volt 40a 40amp relay 5pin

Product Description

Relay Features:

40A switching capability
1 form A,I form B,1 form C,
1 form U,2 form A contact form
Various mounting terminations available
Sealed IP67 and dust cover types available
Outline dimensions: 28.0 X28.0X25.0

Relay Specification:

Contact Form	1A, 1B, 1C, 1U, 2A
Contact Material	AgSno2
Max. Operating Current	40A
Max. Operating Voltage	27VDC
Insulation Resistance	100MΩ
Rated Load(Resistive load)	1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Dielectric Strength(Coil and Contact)	500VAC
Ambient Temperature	-40°C~+85°C
Operate/Release Time	10ms/10ms
Mechanical Life	1 X10⁶
Electrical Life(min)	1 X10⁵
Terminal Type	Terminal

Coil Ratings:

Normal voltage(VDC)	Pick-up voltage(VDC)	Drop-out voltage(VDC)	Coil resistance(Q±10%)	Parallel resistance(Q±5%)	Equivalent resistance(Q±10%)	Power consumption(W)	Max. allowable overdrive voltage(VDC)
Normal voltage(VDC)	Pick-up voltage(VDC)	Drop-out voltage(VDC)	Coil resistance(Q±10%)	Parallel resistance(Q±5%)	Equivalent resistance(Q±10%)	Power consumption(W)	20℃	85℃
12	8.4	1.2	90	-	-	1.6	20.2	15.7
12	8.4	1.2	80	680	79.5	1.8	20.2	15.7
24	16.8	2.4	360	-	-	1.6	40.5	31.5
24	16.8	2.4	320	2700	317.6	1.8	40.5	31.5

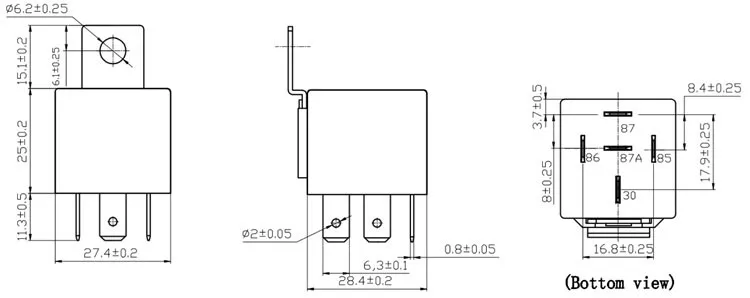

External Dimension:

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
