17 inch Industrial Waterproof AIO IP65 Touch Panel PC

Supplier: Shenzhen Touch Think Intelligence Co., Ltd.
Region: Guangdong, China
Contact: Ms Alice Yu
Price: $280.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Hard Disk:	32G SSD default,can choose 64G/128G/256G;	Certification:	FCC,ce,RoHS,CCC;
Color:	black or silver;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;
Packaging Detail:	Well packed in standard export cartons with innor foam;	Touch Type:	Capacitive touch screen;
Chipset:	Intel NW10 high speed chipset;	Port:	Shenzhen;
CPU:	Intel celeron J1900 fanless 2.0Ghz;	Screen Ratio:	4:3;
Products Status:	Stock;	RAM:	2G default,can choose 4G/8G;
Contrast Ratio:	1000:1;	Resolution:	1280*1024;
Supply Ability:	30000 Set/Sets per Month;	Brand Name:	TouchThink;
Place of Origin:	Guangdong China;	Type:	Panel PC;
Shell:	aluminum alloy;

Product Description

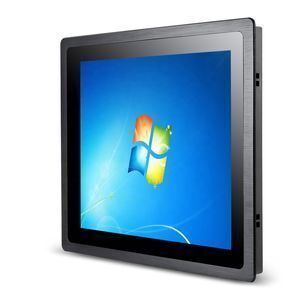

17 inch Industrial Waterproof AIO IP65 Touch Panel PC

Model:TPC170-W210
PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset	Intel ValleyView SSA-CUnit
Memory	2G DDR3 (4G, 8G optional)
Hard Drive Capacity	32G SSD
Hard Drive Optional	SSD: 64G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
I/O Interface	3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232
I/O Interface	1xVGA/H DMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Win7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size	17" (Aspect ratio:4:3)
Resolution	1280*1024
Support Color	16.7M colors
Brightness (cd/m²)	300+
Response time	5ms
Contrast ratio	1000:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points)/(5 wire resistive touch optional)
Touch Interface	USB (RS232 optional)
Working life	>50 million times
Power Supply
Power Supply	AC 100-240V
Working voltage	DC 12V
Power consumption	≤45W
Enclosure
Material	Aluminum Alloy
Color	Silver, Black, white, color can be customized
VESA mounting	75x75mm/100x100mm
IP grade	Front panel IP65 waterproof
Operating Environment
Temperature Range	operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Product Dimension	38.83x34.07x5.98cm
Packing size	53x47x18cm
Accessories	Power adapter, power cord, user manual, warranty card
Other
Mounting (options)	wall mounting brackets (optional)/desk stand holder (optional)
Warranty	3 years warranty
Certificate	CE, FCC, RoHS,CCC

Packaging & Shipping

Transport and Packing process
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.

Delivery Time
Samples: 1-5 working days
500PCS or More orders: 12-17 working days
