automatic high speed high quality Nut Tapping Machine
- 5000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Warranty: | 1 Year; | NO.OF SPINDLE: | 2 4; |
| Supply Ability: | 200 Set/Sets per Year; | Condition: | New; |
| Applicable Industries: | Manufacturing Plant; | Key Selling Points: | High-accuracy; |
| Machine Type: | nut tapping machine; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Port: | Shanghai; | Marketing Type: | New Product 2020; |
| Packaging Detail: | all kinds of containers.20HQ 40HQ; | Showroom Location: | India; |
| Video outgoing-inspection: | Provided; | Machinery Test Report: | Provided; |
| product size: | M3-M36; | Warranty of core components: | 1 Year; |
| Payment Terms: | L/C,T/T; | Local Service Location: | Germany,Viet Nam,India; |
| After-sales Service Provided: | Overseas service center available,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Brand Name: | Rainbow; |
| Place of Origin: | Hebei China; | Core Components: | PLC,Motor; |
| Model | Size | No. of Spindle | Producitivity | Main Motor(kw) | Motor of Material Mixing | Oil Pump | Air Pressure | Dimension | Weight | |
| Flange | Hex | |||||||||
| LDH-M4-2 | M3 | 2 | 80 | 100 | 0.75-4 | 0.55 | 0.125 | 1.5-2.5 | 1100X1100X1800 | 450 |
| M4 | 2 | 80 | 100 | |||||||
| LDH-M8-2 | M5 | 2 | 70 | 100 | 0.75-4 | 0.55 | 0.125 | 2.0-3.0 | 1100x1100x1800 | 450 |
| M6 | 2 | 65 | 90 | |||||||
| M8 | 2 | 60 | 80 | 500 | ||||||
| LDH-M12-2 | M10 | 2 | 50 | 70 | 1.5-4 | 0.55 | 0.125 | 3.0-4.0 | 1100X1100X800 | 500 |
| M12 | 2 | 45 | 60 | |||||||
| RLDH-M16-2 | M14 | 2 | 40 | 50 | 2.2-6 | 0.55 | 0.125 | 3.0-5.0 | 1100x1100x1800 | 550 |
| M16 | 2 | 30 | 40 | |||||||
This is the 2 spindle flange&hex nut tapping machine.
+
| Model | Size | No. of Spindle | Producitivity | Main Motor(kw) | Motor of Material Mixing | Oil Pump | Air Pressure | Dimension | Weight | |
| Flange | Hex | |||||||||
| LDH-M18-4 | M5 | 4 | 140 | 200 | 0.75-4 | 0.55 | 0.125 | 2.0-3.0 | 1450X1600X1800 | 1110 |
| M6 | 4 | 130 | 180 | |||||||
| LDH-M12-4 | M10 | 4 | 100 | 140 | 1.5-4 | 0.55 | 0.25 | 3.0-4.0 | 1500x1900x1750 | 1160 |
| M12 | 4 | 90 | 120 | |||||||
| M14 | 4 | 80 | 100 | |||||||
+
| Model | Size | No. of Spindle | Producitivity | Main Motor(kw) | Motor of Material Mixing | Oil Pump | Air Pressure | Dimension | Weight | |
| Flange | Hex | |||||||||
| LDH-M18-4 | M5 | 4 | 140 | 200 | 0.75-4 | 0.55 | 0.125 | 2.0-3.0 | 1450X1600X1800 | 1110 |
| M6 | 4 | 130 | 180 | |||||||
| LDH-M12-4 | M10 | 4 | 100 | 140 | 1.5-4 | 0.55 | 0.25 | 3.0-4.0 | 1500x1900x1750 | 1160 |
| M12 | 4 | 90 | 120 | |||||||
| M14 | 4 | 80 | 100 | |||||||

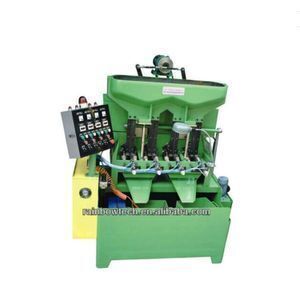

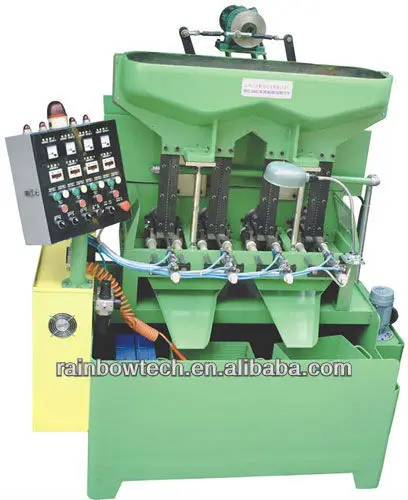

This is the example of 4 spindle flange& hex nut tapping machine.
For any questions ,please feel free to contact me ,
we are looking forward to cooperating with you.
We can provide you the best price and good quality.
For more information about our company please visit
http://rainbowtech.en.alibaba.com/
hope to cooperate with you.
