2000L Milk And Beverage UHT Automatic Plate Sterilizer Machine

Supplier: Weishu Machinery Technology (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Lee Li
Price: $13500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Advantage:	Anti-corrosion;	Warranty of core components:	1 Year;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Weight:	1080kg;
Application:	Liquid;	Local Service Location:	Nigeria,None;
Packaging Detail:	Standard wooden case for autoclave sterilizer;	Name:	2000L Milk And Beverage UHT Automatic Plate Sterilizer Machine;
Processing:	Sterilizer;	Video outgoing-inspection:	Provided;
Model Number:	WSTS;	Material:	Stainless Steel SUS304;
Capacity:	2T/h;	Sterilizaiton way:	HTST;
Package Preview:	;	Dimension(LWH):	190018002200 Mm;
After-sales Service Provided:	Engineers available to service machinery overseas,Video technical support;	Port:	Shanghai;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,alipay;	Control system:	Full Automatic;
Processing Types:	drink milk juice;	Applicable Industries:	Food & Beverage Factory,Retail,Food & Beverage Shops;
Certification:	CE ISO;	Brand Name:	WS;
Warranty:	1 Year;	Core Components:	PLC;
Color:	White;	Condition:	New;
Function:	High Temperature High Pressure Sterilizing;	Voltage:	220V/380V;
Place of Origin:	Shanghai China;	Power:	4Kw;
Machinery Test Report:	Provided;	Supply Ability:	600 Set/Sets per Month;
Marketing Type:	Hot Product 2019;	Showroom Location:	None;

Product Description

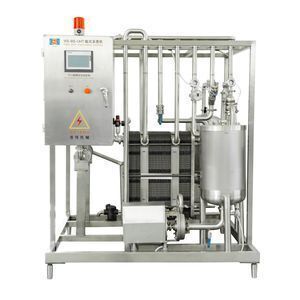

automatic plate UHT sterilizing machine

The machine adopts UHT Processing method,makes the liquid dairy beverage and juice etc strictly sterilized,then into aseptic package,with the sterilization temperatture 137 degree,warm keeping time 3-5s. so to keep the original nutrition,color and flavour of the beverage and diry, this machine os of the advantage of high heat recycle,compact and fine structure,and temperature control.Outputting material temperature , and cool package.Capacity 1-10T controling way semi-automatic,full automatic (PLC controling, touc screen)

main technical standards

Model	DK-UHT-1	DK-UHT-2	DK-UHT-3	DK-UHT-4	DK-UHT-5
Production capacity(T/h)	1	2	3	4	5
Heat exchanging area(m2)	16	26	38	46	56
Material inter temperature(^oC)	5	5	5	5	5
Material outer temperature(^oC)	5	5	5	5	5
Sterilizing temperature(^oC)	137	137	137	137	137
Warm keeping time(S)	4	4	4	4	4
Ice water temperature(^oC)	1	1	1	1	1
Ice water consumption(T/h)	3	2	6	8	12
Joint size(mm)	25	38	38	51	51
Weight(kg)	980	1080	1160	1350	1680
Size	150015002000	190018002200	210022002500	230020002500	260022002500
Power(kw)	3	4	5	6	7
