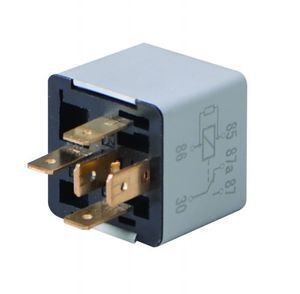

MAN DAF 81.25902.0460 24v 40a 5pin automotive relay

Supplier: Zhejiang Xingpu Auto Parts Co., Ltd.
Region: Zhejiang, China
Contact: Mr Victor Wang
Price: $0.60 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Port:	SHANGHAI/NINGBO;	Size:	282836;
Model:	Cityliner;	Year:	1992-2000,1988-1992;
Rated Current:	40A;	Electrical Life:	100,000 Cycles;
Car Make:	MAN, DAF, IVECO, FORD,NEOPLAN;	OE NO.:	81.25902.0460;
Circuit Protection:	resistor;	Packaging Detail:	Standard export package;
Product name:	24V 40A 5PIN automotive relay;	Supply Ability:	50000 Piece/Pieces per Week 24v 40a 5pin automotive relay;
Warranty:	1;	Model Number:	JD240C-06A;
Color:	Gray;	Car Fitment:	NEOPLAN;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Contact material:	Silver Alloy;
Terminal material:	brass;	Place of Origin:	Zhejiang China;
Brand Name:	CNSPD;	Certification:	IATF16949;
Contact form:	Changeover;	Working temperature:	-40℃- +125℃;
Voltage:	24V;

MAN DAF IVECO 24v 40a 5pin automotive relay

Product Description

1.Specification:

Electrical Characteristics

Rated Voltage	24VDC
Operating Voltage	18-32VDC
Pull-in voltage	17VDC max
Release voltage	3.0VDC min
Coil Power Consumption	1.8W
Coil resistance(Ω+/- 10)	320Ω
Electrical life	100,000 cycles
Mechanical life	1,000,000 cycles
Rated Switching Current	40A @24VDC
Insulation resistance	100MΩ (500VDC)

Mechanical Data

Contact material	silver alloy
Fixed contact	silver alloy
Moving contact	silver alloy
Contact arrangement	1C
Ambient temperature	-40°C~+125°C
Operate time Max	10ms
Release time Max	10ms
Vibration resistance	10Hz-40Hz, 1.5mm
Shock resistance	147m/s2, 11ms
Cover retention	245N
Terminal retention	100N
Terminal retention to bending	10N
Terminals	Brass, 6.3x0.8mm
Coil	Oxygen Free Copper
Base plate	Nylon PA66
Cap	Nylon PA66

2. Wiring Diagram

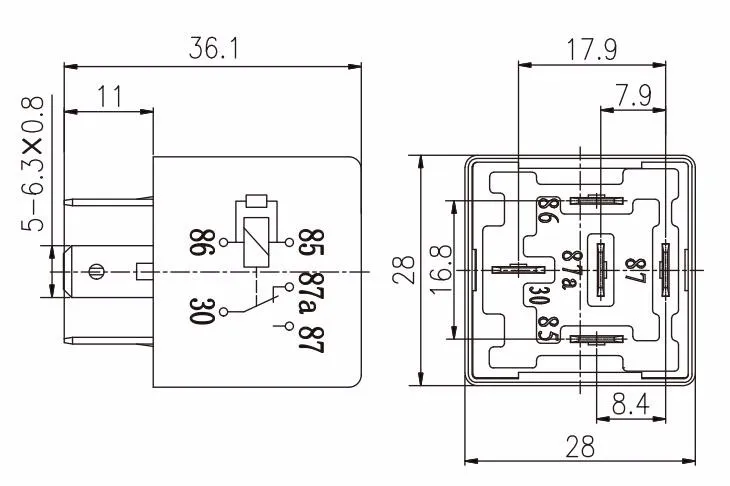

3. Outline Dimension Diagram

4. Reference numbers:

BOSCH 0 332 209 206

HELLA 4RD 007 903-007

HELLA 4RD 003 520-221

HELLA 4RD 933 332-261

HELLA 4RD 007 903-001

SIEMENS V23134-A0053-A103

SWF 611 009

WEHRLE J. 20 401 001
