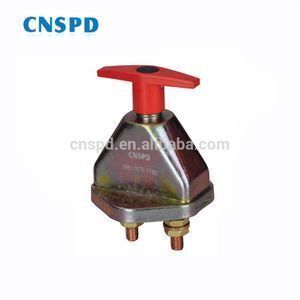

24V 250A truck rotary battery disconnect switch for VOLVO
- 5.05 >=200 pieces
| Truck Model: | Universal; | Product Name: | 24v Truck Battery Disconnect Switch; |
| Electrical life: | 50,000 times; | Maximum surge current: | 2500A, 5s; |
| Working temperature: | -40℃- +85℃; | Continuous current: | 250A @24VDC; |
| Material: | Alluminum alloy, Copper, PP, PE,PP, PE, Copper, Aluminum; | Mounting holes: | 2 holes, DN 9mm; |
| Place of Origin: | Zhejiang China; | OE NO.: | 1589297, 034130021; |
| Port: | Ningbo/Shanghai; | Model Number: | JK2008; |
| Brand Name: | CNSPD; | Packaging Detail: | Standard export package; |
| Supply Ability: | 100000 Piece/Pieces per Month 24v VOLVO truck battery disconnect switch; | Rated Voltage: | 12V/24V DC; |
| Certified by: | CE, IATF16949; | Size: | Standard Size; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; | Studs: | Pure copper, M10; |
1.SPECIFICATION:
Product | Battery isolator switch |
Model no. | JK2008 |
OE no. | VOLVO 1589297 MAN 034130021 HOWO 1991.0076.0100 |
Work temperature | -40°C~+85°C |
Withstand voltage | AC550V(50HZ)/Min |
Rated voltage | DC 12V/24V |
Working voltage range | 9-16VDC, 18-32VDC |
Rated current | 250A @24V |
Max surge current | 2500A, 5s |
Contact material | Pure copper |
Operating life | 50,000Times |
Protection grade | IP55 |

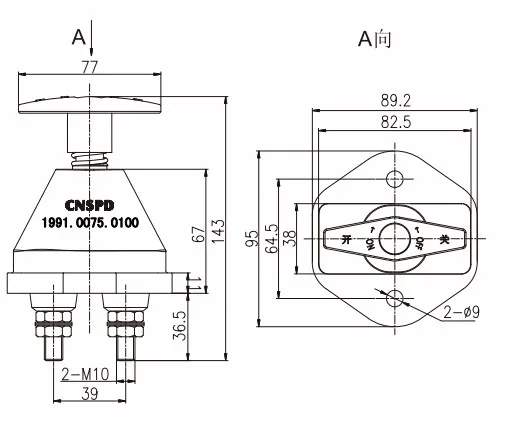

2.OUTLINE DRAWING:

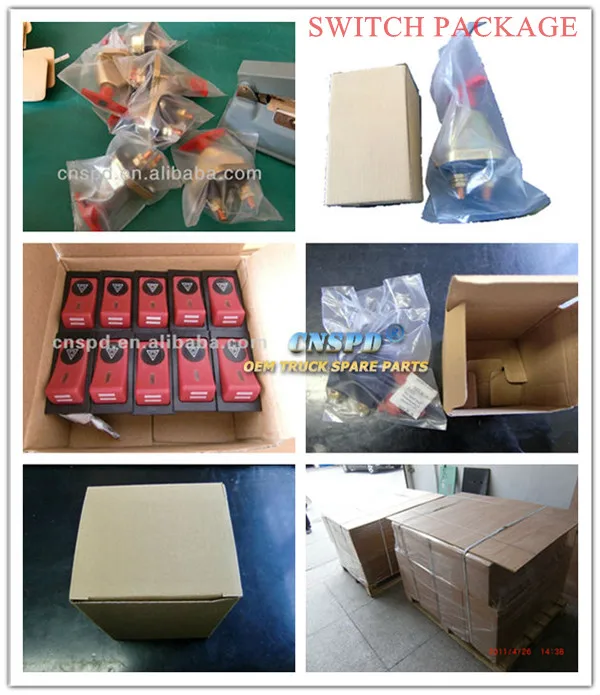

3. Real photoes
1.Could i put my own logo on the product i purchased?
> Yes, customers' logo can be printed by laser printing, transfer printing, silk printing and carving for free.
2.Could i buy 1pc sample for evaluation ?
> Yes, we can provide free samples for your testing.
3.How long is the sample making?
> 7 days in general, customerized product is about 30 days.
4.May i have your product catalog and price list ?
> Yes, please send an email to our sales team for product catalog and price list.
5.What kind of shipping methods can i choose?
> 1).By express, through DHL, TNT,UPS, FEDEX, EMS, usually for small orders, regular orders or urgent orders.
> 2).By sea, for bulk orders.
> 3).By air.
