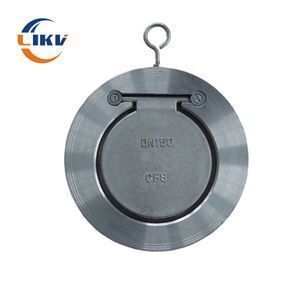

Single one way Wafer Type swing Disc Check Valve

Supplier: Like Valve (tianjin) Co., Ltd.
Region: Tianjin, China
Contact: Ms Sandy Liu
Price: $10.00 /set
Min. Order: 1 set

Click here to contact

Product details

perated By:	Automatic;	Media:	water, oil;
Application:	General;	Connection:	Wafer;
Temperature of Media:	Normal Temperature;	Brand Name:	LIKE VALVE;
Valve Pressure:	PN10-PN40 Check valve;	Model Number:	H74X/H;
Port Size:	DN50-DN600;	Product name:	Wafer disc check valve;
Standard or Nonstandard:	Standard;	Power:	Hydraulic;
Port:	TIANJIN, QINGDAO, DALIAN,SHANGHAI;	Packaging Detail:	One check valve packing in plastic bag, then wooden box package, setting on the pallet.;
Quality:	High Level Check Valve;	Structure:	Check;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Place of Origin:	Tianjin China;
Supply Ability:	1000000 Set/Sets per Year;	Valve Material Could Be:	Stainless Steel;

Single one way Wafer Type swing Disc Check Valve

Technical data

PN(MPa) Nominal pressure	1.0	1.6	2.5	4.0
(MPa) Shell testing pressure	1.5	2.4	3.75	6.0
(MPa) Seal testing pressure	1.1	1.76	2.75	4.4
°C Suitable temperature	<400(Hard seal) <120(<250)(Soft seal)
Suitable mediums	Oil, water, acid and alkali liquid

Meterial of main parts

Part name	Valve body, valve disc	Seat ring
Meterial	Garbon steel, stainless steel, copper	NBR,EPDM,PTFE

check valve detail

Features and use

Factory production of H74 I type II folder wafer type check valve is a slim-shaped check valve, it has the advantages of simple structure,beautiful appearance, light weight, easy to install.

The valve is mainly applied to the water supply system, petroleum,chemical, metallurgy and other industrial sectors most applicable installation space limited spaces.

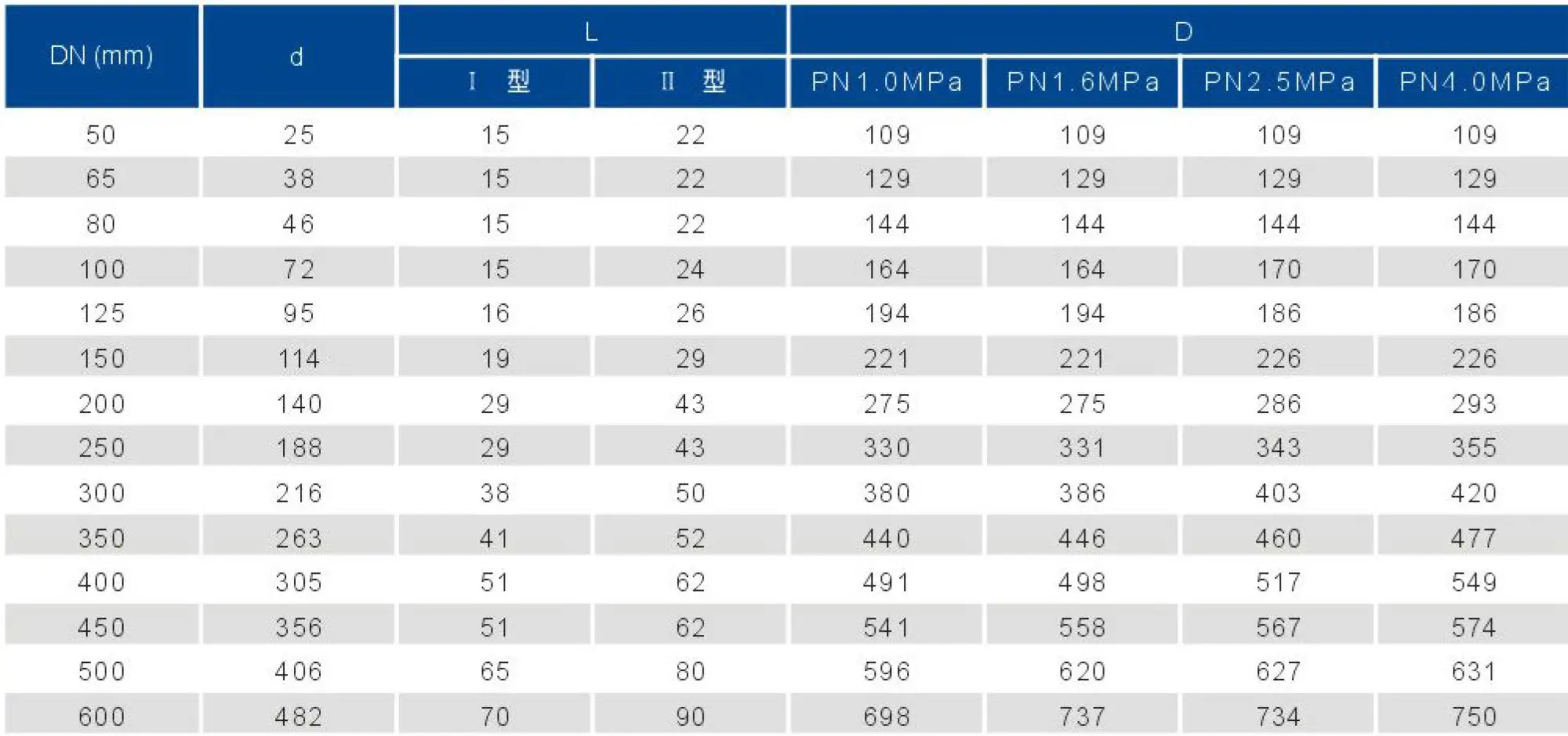

Dimension
