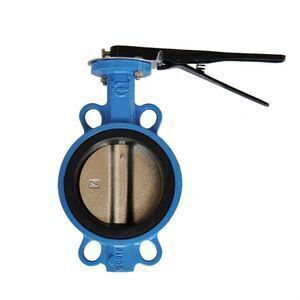

Wafer type cast iron rubber seat Water Type Butterfly Valve
-
Supplier: Like Valve (tianjin) Co., Ltd. -
Region: Tianjin, China -
Contact: Ms Sandy Liu -
Price: $11.00 /set -
Min. Order: 1 set
| Model Number: | LKWBFV; | Sample: | Available; |
| Product name: | Wafer type cast iron rubber seat Water Type Butterfly Valve; | Media: | water, air, oil; |
| Operator: | Lever/Gear/Bare Shaft; | Standard or Nonstandard: | Standard; |
| Power: | Manual; | Body: | Cast Iron/Ductile Iron; |
| Application: | General; | Packaging Detail: | Wafer type cast iron rubber seat Water Type Butterfly Valve packed in plywooden case; |
| Stem: | Carbon Steel/SS410/SS416; | Seat: | EPDM/NBR/Viton/PTFE; |
| Temperature of Media: | Low Temperature,Medium Temperature; | Port Size: | DN50-DN1000; |
| Brand Name: | LIKV; | Disc: | Ductile Iron/SS304/SS316; |
| Place of Origin: | Tianjin China; | Payment Terms: | L/C,D/A,Western Union; |
| Type: | Wafer,Butterfly Valves; | Structure: | BUTTERFLY; |
| Coating: | Epoxy Coated; |

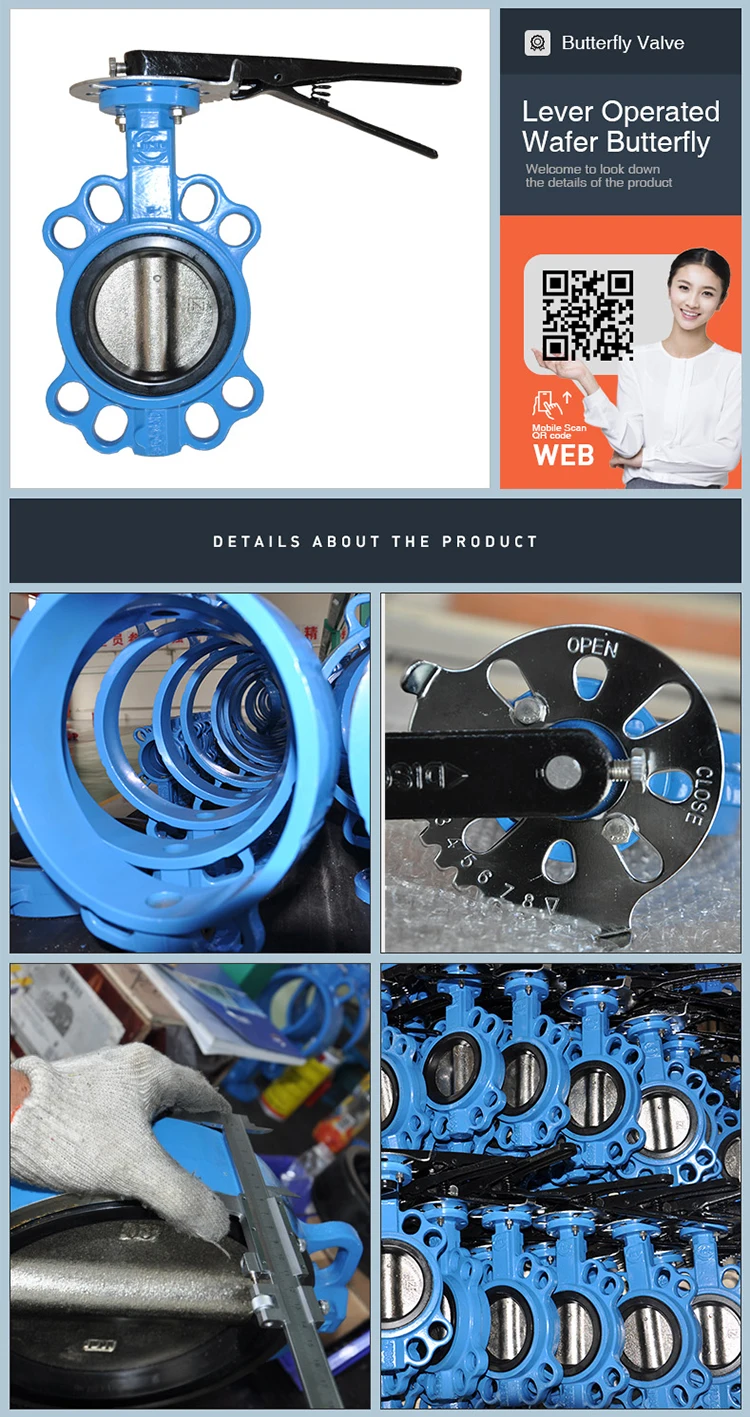

Wafer type cast iron rubber seat Butterfly Valve Water Type
Pressure and temperature
|
working pressure |
PN10, PN16 |
|
testing pressure |
shell: 1.5 times rated pressure seat: 1.1 times rated pressure |
|
working temperature |
-10 °C to 80°C (NBR) -10 °C to 120°C (EPDM) |
|
suitable media |
water, oil and gas |
Main material list
|
parts |
material |
|
body |
cast iron, ductile iron, |
|
seat |
EPDM, NBR,VITON, PTFE |
|
disc |
nickel ductile iron,AI bronze, stainless steel |
|
stem |
carbon steel, stainless steel |
|
bushing |
PTFE |
|
"O" ring |
PTFE |
|
pin |
stainless steel |
|
key |
stainless steel |
Executive Standard:
|
Design Standard |
EN 593 , MSS SP67 API 609 BS5155 |
|
Inspection & Test |
API 598 ISO 5208 EN 12266 |
|
End Standard |
ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWAC207 SABS 1123 Table 1000/3 & Table 1600/3 |
|
Face to Face |
ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
|
Top Flange |
ISO 5211 |

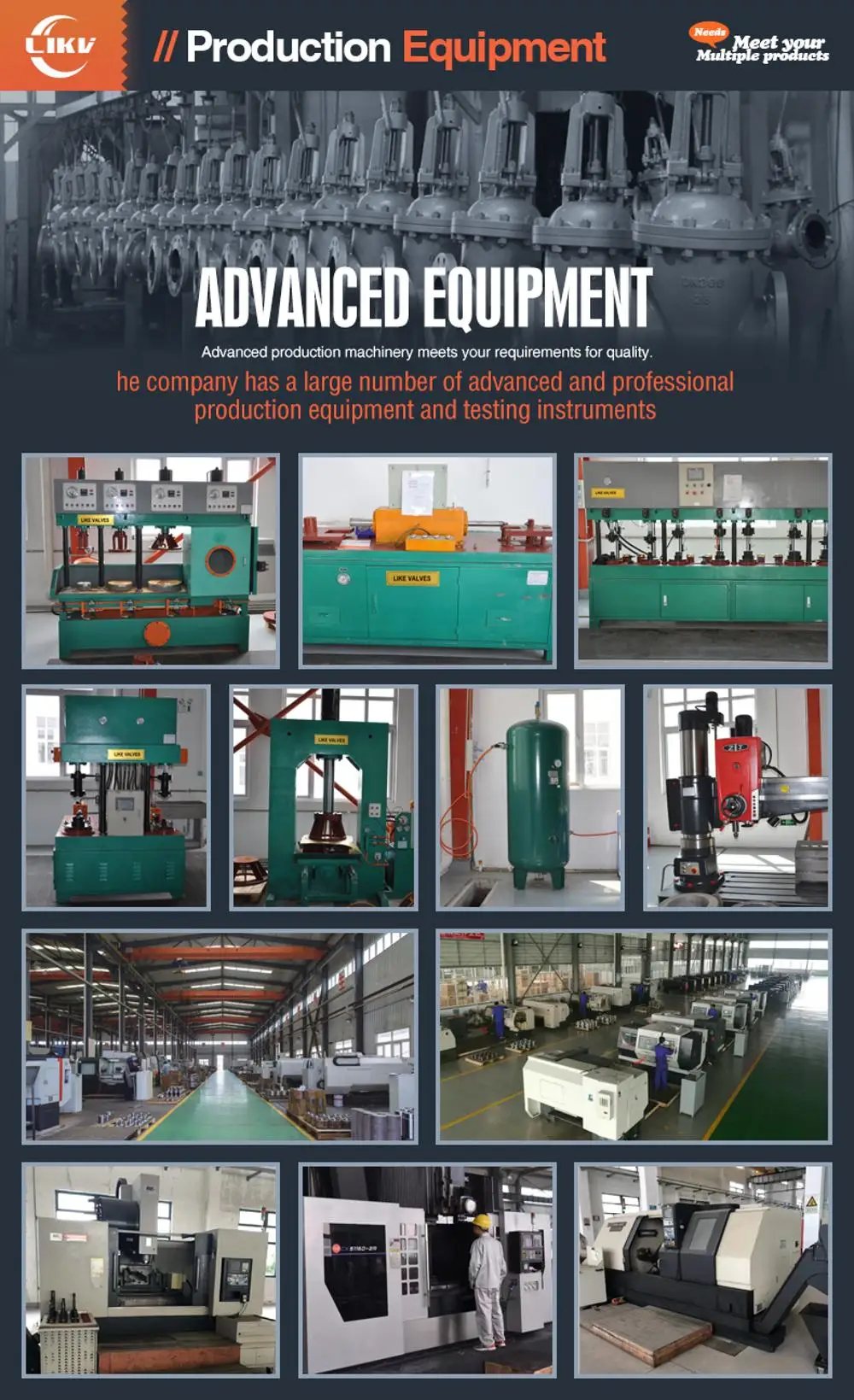

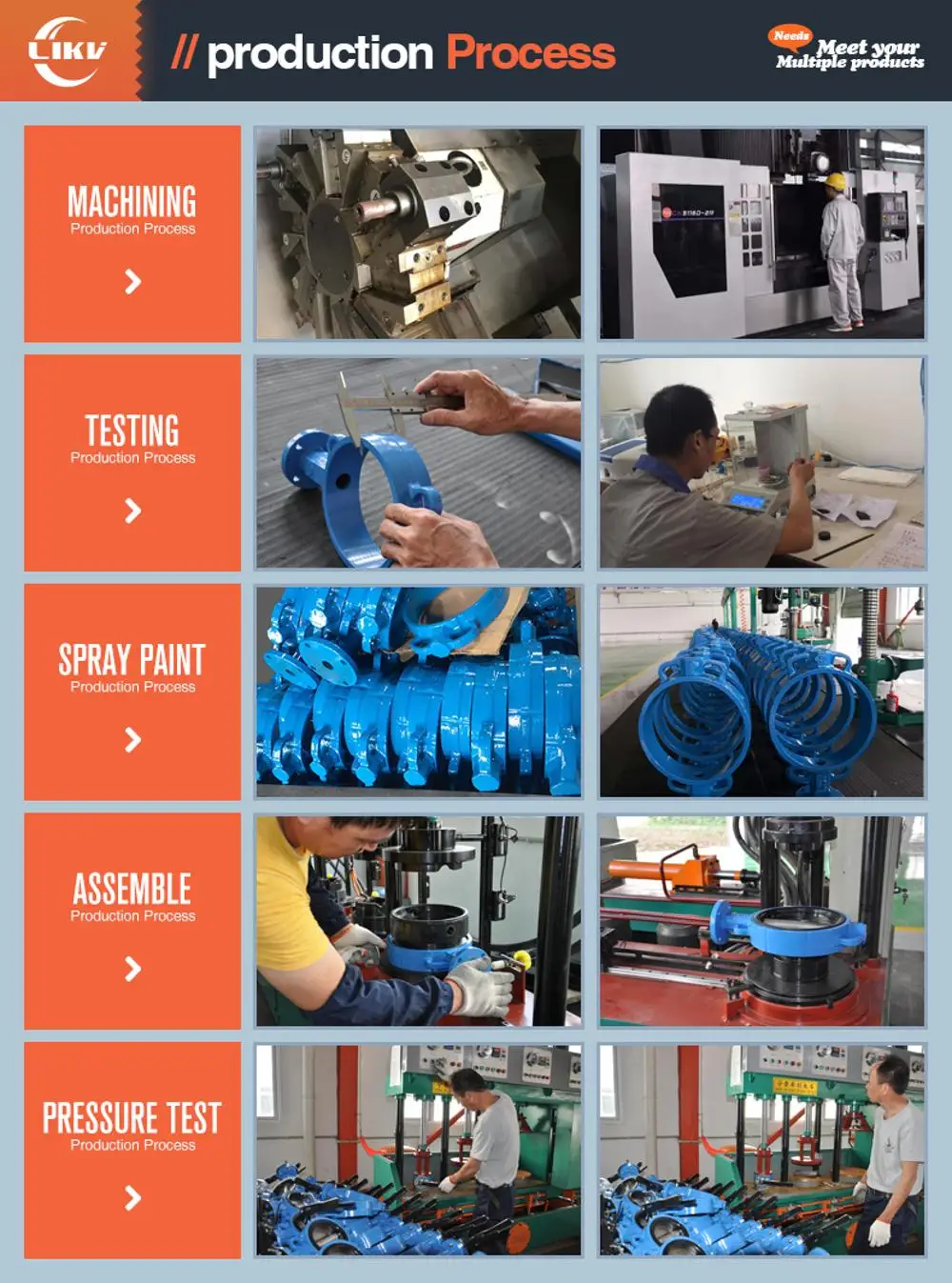

Machine processing equipment 178 sets, Inspection equipment 32 sets.
Large stock, short delivery time.
If you want to learn more,please contact with us
LIKE VALVE (TIANJIN) CO., LTD
Address: H12 Tengfei Base of Xiaozhan Industrial Area, Jinnan District , Tianjin, China
We will always be here try our best to provide you our best service!
-
