Super quality brand new 1 color offset printing machine Products from Shanghai Evergreen Printing Machinery Co., Ltd.

Product Details

Place of Origin:	Shanghai China;	Voltage:	220V;
Key Selling Points:	High-accuracy;	Supply Ability:	100 Piece/Pieces per Month brand new offset printing machine;
Certification:	CE;	Port:	Shanghai;
Applicable Industries:	Hotels,Machinery Repair Shops,Printing Shops,Construction works ,Advertising Company;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:	Offset Printer;	Local Service Location:	Egypt,Viet Nam,Brazil,Peru,Saudi Arabia,Pakistan,India,Mexico,Russia,Thailand,Kenya,UAE;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Weight:	800;
Brand Name:	Evergreen;	Showroom Location:	Egypt,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Pakistan,India,Mexico,Russia,Thailand,Kenya,Chile;
Automatic Grade:	Automatic;	brand new offset printing machine:	offset press;
Dimensions(LWH):	1760x900x1340mm;	Packaging Detail:	strong wooden case brand new offset printing machine;
Warranty:	1 Year;	Condition:	New;
Usage:	Bill Printer,Card Printer,Label Printer,Paper Printer;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Plate Type:	Letterpress;	Color & Page:	Single color;

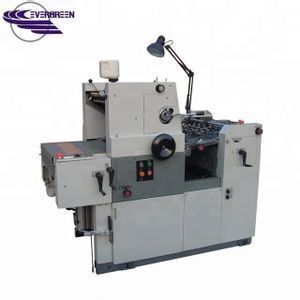

HG47L / HG56L Single color Offset Printing Machine

brand new offset printing machine

1. Easy operation: dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably.

2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.

3. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.

4. Presetted counter: This machine adopts electromagnetic presetted counter. If the quantited printing work finishes, the paper feeding stops automatically.

5. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.

6. The whole machine is controlled by PLC with the function of automatic stop if paper jam.

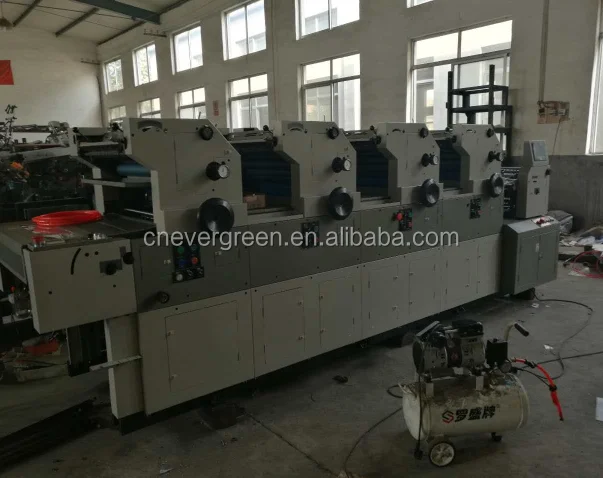

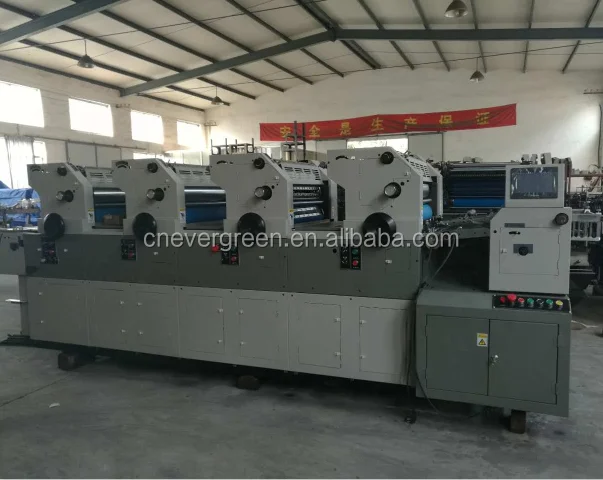

7. Our company produces 47 series and 56 series offset printing machine, including A-type, Ⅱ-type and

NP machines. Most of machines can be installed second color printing device.

8.Advanced quick plate clip

9. with perforation knife.

Model	Modelo	HG-47L	HG-47LⅡ		HG-56L	HG-56LⅡ
Max. paper size	Max. tamanho do papel	470×365mm			560X400 mm
Max. print size	Max. tamanho de impressão	454X345 mm			550X375 mm
Paper weight	peso de papel	28-250 g/m²			28-250 g/m²
Printing speed	A velocidade de impressão	2000-8000 sheets/h			2000-8000 sheets/h
Plate size	tamanho da placa	470×380×0.15 mm			560×420×0.15 mm
Rubber size	tamanho de borracha	470×420 mm			560×460×1.95 mm
Rubber thickness	espessura da borracha	1.95 mm			1.95 mm
Ink roller	rolo de tinta	10pieces(two close to board)	14pieces(three close to board)		10pieces(two close to board)	14pieces(three close to board)
Water roller	rolo da água	4pieces(one close to board)	5pieces(two close to board)		4pieces(one close to board)	5pieces(two close to board)
Power	poder	Power 0.75kw(47) ,power 1.1kw(56), air pump power 0.55kw,(single) 220 V
dimension	dimensão	1760×900×1340 mm			1760×1000×1340 mm
Machine weight	Peso	700 kg		720 kg	800 kg		820 kg
