China offset printer, automatic mini offset printing machine Products from Shanghai Evergreen Printing Machinery Co., Ltd.

Product Details

After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	100 Piece/Pieces per Month mini offset printing machine;
Brand Name:	Evergreen;	Place of Origin:	Shanghai China (Mainland);
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Plate Type:	Letterpress;
Certification:	ISO;	Color & Page:	Single Color;
Weight:	700KG;	Condition:	New;
a3 print size:	single color printing;	Port:	Shanghai;
Packaging Detail:	strong wooden case mini offset printing machine;	Warranty:	1 Year;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;	Usage:	Bill Printer,Card Printer,Label Printer,Paper Printer;
Automatic Grade:	Automatic;	Type:	Offset Printer;
Voltage:	220V;	automatic mini offset printing machine:	offset press;
Dimensions(LWH):	1760x900x1340mm;	single color offset printing machine:	small offset printer;

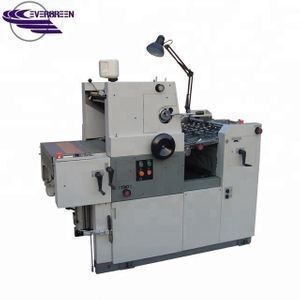

HG47L / HG56L Single color Offset Printing Machine

mini offset printing machine

1. Easy operation: dampening, inking and pressing are operated by one handle at

different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably.

2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper,

paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder

registration of up/down.

3. Dampening and inking separated: Dampening system is separated from inking system,

which can adjust dampening and inking flexibly and content the requirement of different

printing items for dampening and ink.

4. Presetted counter: This machine adopts electromagnetic presetted counter. If the quantited

printing work finishes, the paper feeding stops automatically.

5. Double sheets detection: It can avoid the problem such as double sheets, paper overlap

and non-stop.

6. The whole machine is controlled by PLC with the function of automatic stop if paper jam.

7. Our company produces 47 series and 56 series offset printing machine, including A-type,

NP machines. Most of machines can be installed second color printing device.

8.Advanced quick plate clip

9. with perforation knife.

Spcifiation: offset printing machine

Model	HG-47L	HG-47LⅡ		HG-56L	HG-56LⅡ
Max. paper size	470×365mm			560X400 mm
Max. print size	454X345 mm			550X375 mm
Paper weight	28-250 g/m²			28-250 g/m²
Printing speed	2000-8000 sheets/h			2000-8000 sheets/h
Plate size	470×380×0.15 mm			560×420×0.15 mm
Rubber size	470×420 mm			560×460×1.95 mm
Rubber thickness	1.95 mm			1.95 mm
Ink roller	10pieces(two close to board)	14pieces(three close to board)		10pieces(two close to board)	14pieces(three close to board)
Water roller	4pieces(one close to board)	5pieces(two close to board)		4pieces(one close to board)	5pieces(two close to board)
Power	Power 0.75kw(47) ,power 1.1kw(56), air pump power 0.55kw,(single) 220 V
dimension	1760×900×1340 mm			1760×1000×1340 mm
Machine weight	700 kg		720 kg	800 kg		820 kg
