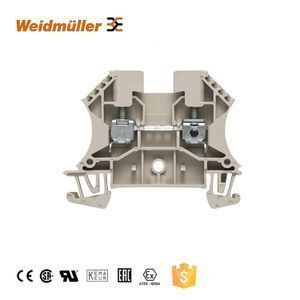

WDU 2.5 Original Weidmuller Feed Through Terminal Block Electrical Connector.

Supplier: Wired Mechanical & Electrical (Chengdu) Co., Ltd.
Region: Sichuan, China
Contact: Ms Shuang Wu
Price: $0.31 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Depth:	46.5 mm;	Order No.:	1020000000;
Height:	60 mm;	Conductor Size:	11 - 20 AWG;
Type:	WDU 2.5,Feed Through;	Port:	Chengdu/Shanghai/Shenzhen;
Supply Ability:	10000 Piece/Pieces per Day weidmuller terminal block;	Net weight:	7.51 g;
Brand Name:	Weidmuller;	Model Number:	WDU 2.5;
Rated cross-section:	2.5 mm2;	Place of Origin:	Sichuan China;
Rated current:	24 A;	Packaging Detail:	Hard Carton, according to customer's requirement.;
Qty.:	100 pc(s).;	Rated voltage:	800 V;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Number of Contacts:	1 - 10;
Width:	5.1 mm;

Product Description

We provide Original New Weidmuller all series products for you.

Any question please contact us through TradeManager or inquiry. (amy.deng at cd-wired.cn)

Thank you.

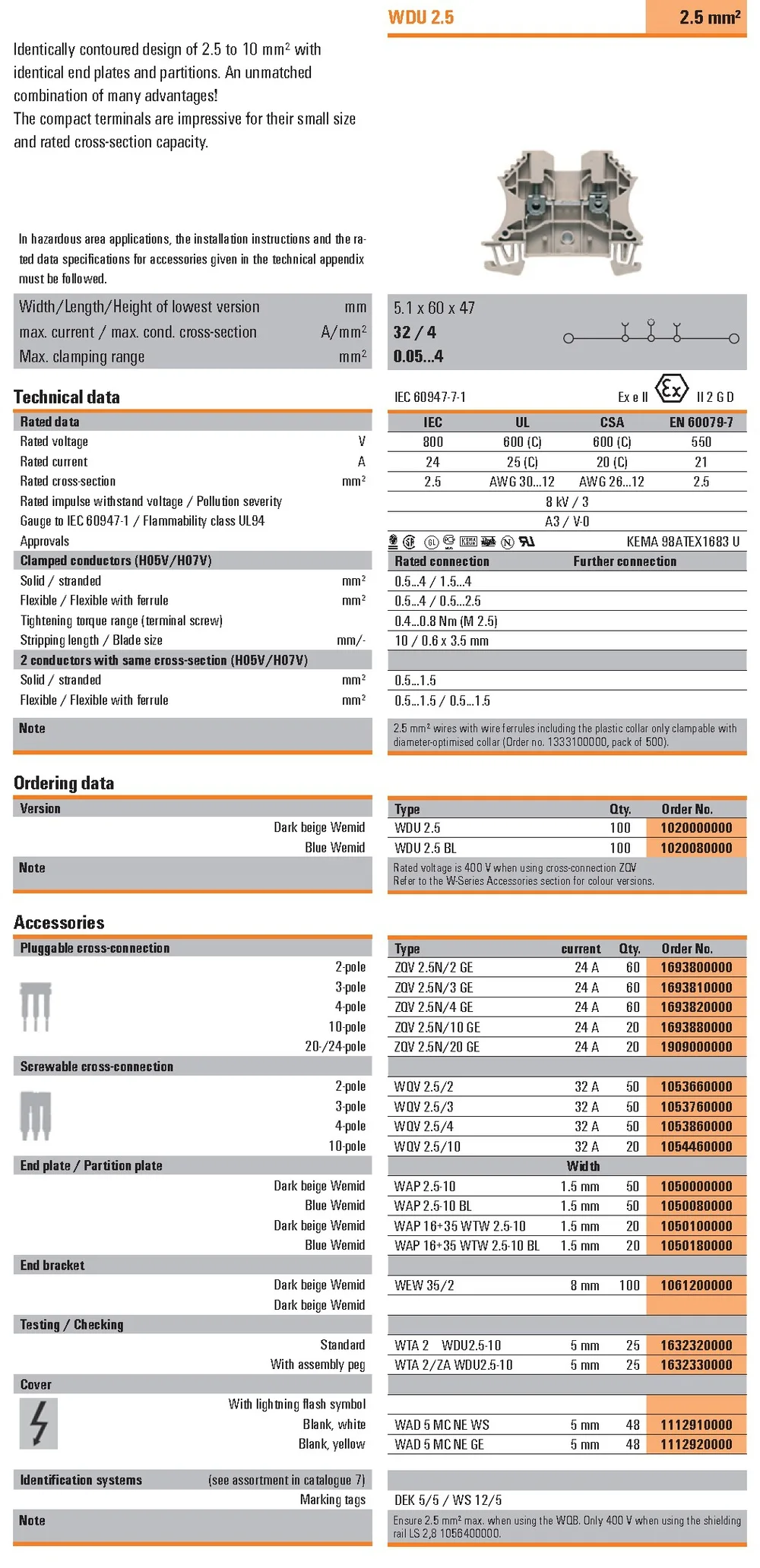

Type	WDU 2.5
Order No.	1020000000
Version	Feed-through terminal, Screw connection, 2.5 mm², 800 V, 24 A, dark beige
MOQ	100 pcs
Width	5.1mm
Height	60mm
Depth	46.5mm
Storage temperature	10 °C...40 °C
Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0
Certificate No. (ATEX)	DEMKO14ATEX1338U
Certificate No. (IECEX)	IECEXULD14.0005U
Max. voltage (ATEX)	550V
Current(ATEX)	20A
Wire cross section max. (ATEX)	2.5 mm²
Blade size	0.6 x 3.5 mm
Clamping range, max	4 mm²
Clamping range, min.	0.05 mm²
Connection cross-section, stranded, min	1.5 mm²
Tightening torque, max	0.8 Nm
Tightening torque, min.	0.4 Nm
Rated cross-section	2.5 mm²
Rated voltage	800 V
Rated current	24A
Current at maximum wires	32A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	8kV
Pollution severity	3
Version	Screw connection, for plug-in cross-connector,for screwable crossconnection, One end without connector
Tightening torque	0.4...0.8 Nm
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Rail	TS 35

WDU Series

WDU 1.5/BLZ 5.08,WDU 1.5BLA,WDU 2.5,WDU 2.5 FF 2*2.8,WDU 2.5 GE,WDU 2.5 N,WDU 2.5 SLL,WDU 2.5 SW,WDU 2.5 TS SE 2.4,WDU 2.5/1.5/ZR BL,WDU 2.5/10 BEZ,WDU 2.5/TC,WDU 2.5BL,WDU 2.5GN,WDU 2.5N ZQV,WDU 240,WDU 35,WDU 35 N,WDU 35/IK/ZA,WDU 4,WDU 4 SL,WDU 4 SL BL,WDU 4/ZR,WDU 4/ZZ,WDU 50N,WDU 50N IR,WDU 6,WDU 6 SL,WDU 6 SL/EN,WDU 70/95

WDU 70/95 HG,WDU 95N/120N,WDU1.5/ZZ,WDU2.5,WDU2.5N/600 UL,WDU35 IK,WDU35 N,WDU4,WDU 10,WDU 16,WDU 16/ZA
