63 Years Military Quality Nickel Iron Batteries 1.2V 400AH NIFE Battery

Product details
Model Number:CYNF400;Nominal Capacity:400AH;
Supply Ability:800000000000000 Set/Sets per Year;Weight:280kg;
Maintenance Type:Low Rate;Application:Solar Power;
Size:Customized;Sealed Type:Sealed;
Brand Name:OEM;Place of Origin:Guangdong China;
Packaging Detail:Wooden Crates;Voltage:1.2V;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Usage:Solar, or PV system;
Port:Shenzhen, Guangzhou;

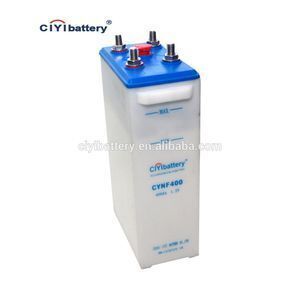

63 years military quality nickel iron batteries 1.2v 400ah NiFe Battery



1. Product Description

Nowadays, more and more countries and governments have paid special attentions on environmental protection and actively promoted the application of green energy. The CYNF series Ni-Iron batteries manufactured by Zhuhai CiYi Battery Co., Ltd are specially

designed for photovoltaic and renewable energy applications under critical and harsh circumstances. CiYi Ni-Fe battery CYNF series has the characteristics of low operation cost,low self-discharge, long cycling life, environmental-friendly etc. They can withstand deep
discharge, wide temperature variations, mechanical & electrical abuses and still show excellent and reliable performance over a long period. The operation life of CYNF series solar Ni-Fe batteries is 30-40 Years, the working temperature range can be -40°C to 60°C,
which is also the longest life battery for the PV system.



Advantages
Designed life of the battery 30-40 years.
Military Technology and Equipment.
Total Enviroment Protection
Wide working temperature from -20°C to +60°C
Pocket Technology on the positive plate make the battery high strength, high expansion resistance
Slurry Technology on the negative plate make the battery light weight and better low temperature perfomrance
No Sudden Death Risk
High Reliability and Safety
Over 3000 cycles life at 50% DOD
10CA high peak discharge current
With UL, CE, ISO, KS, IEC certificates



Packing Method

Capacity range: 10ah to 1250AH
Nominal Voltage: 1.2V
Each cell has a nominal voltage of 1.2 volts. No matter the size of the cell, all Nickel Iron cells are 1.2volts.
To make a battery, you add cells together until you get the voltage you require.
Example: 12 Volts = 10 x 1.2volt cells 24 Volts = 20 x 1.2volt cells
48 Volts = 40 x 1.2volt cells
The advantage of making a battery up from individual cells is that if one cell fails, you replace that cell.
You can add to your battery bank at any time with Nickel Iron batteries if you need to store more power. This cannot
be done with lead acid batteries without reducing the life of the new batteries.
12 Volts = 10 x 1.2volt cells
24 Volts = 20 x 1.2volt cells
48 Volts = 40 x 1.2volt cells



Application Fields
Wind Power Generation
Photovoltaic power Generation
UPS Back-up Power Systems
Lighting
Metallurgy
Telecommunication
Railway Rolling Stocks
Search + traffic analytics



2. Package & Shipping



3.Our Services

 1. OEM and ODM are welcome with the authorization letter of the logo

 2. We can match the charger, inverter, controller, rack, intercell links etc according to the requirements of our clients

 3. Trainning of the electrolyte mixing, filling,installation, mantainence, operation, etc



Company Information

 Zhuhai Ciyi Battery began to produce NI-FE batteries since 1954 years, as one of the eldest military factory in China, Ciyi battery have given the biggest supports to our government and military on the technology, service support, etc, so we have got many good reputation and golden suppliers authorization from them.



The annual capacity of our CIYI NI-FE batteries can be 10billion AH, Now we are cooperating with Sri Lanka, Czech, Yemen, South Korea, Algiera, Singapore, New Zealand, Australia, U.S.A clients and also some Grid system with our good quality, professional service and also competitive price.



Now we are also having the distributors of our CIYI batteries in Australia, New Zealand, U.S.A, UK, Italy, etc, if possible, you can contact with our local agent for more convient service who can supply you the batteries, import service, installation, and also mantainence service, etc, which will save you time and cost.



FAQ



How long can I expect my nickel iron batteries to last?

No one knows how long a nickel iron battery will last for as some of the original batteries manufactured by Thomas Edison’s battery storage company are still in use today.

Ciyi's nickel iron batteries have been manufactured for over 50 years and are still in use today, still producing one hundred percent of their rated capacity. CIYI batteries believe NiFe batteries have the possibility of many years in excess of the 40 years by discharging the same as you would with a lead acid battery and by replacing the electrolyte when the battery is taking longer to charge or no longer holds its rated capacity.

What is the electrolyte made up of?

The electrolyte is a combination of Potassium Hydroxide, lithium hydroxide mixed with distilled or de-ionized water. Water makes up around 85% of the electrolyte. Electrolyte replacement is inexpensive when compared to battery replacement. Nickel iron batteries like to be worked and thrive on hard work and cycling. If the battery is not producing its rated capacity its time for an electrolyte replacement.

What is a Nickel Iron cell?

A nickel Iron cell is made up of several pockets, each made of finely perforated steel strips and filled with active material and are mechanically put together to from a rectangular shape and then trimmed with steel frames to make a sheet – like plate. The plates are assembled and are separated and insulated from each other by means of plastic rod separators and/or edge insulators.

What is a Nickel Iron (NiFe) battery?

Nickel Iron batteries are made up from individual cells.

Each cell has a nominal voltage of 1.2 volts. No matter the size of the cell, all Nickel Iron cells are 1.2volts.

To make a battery, you add cells together until you get the voltage you need.

 Example:

  6 Volts =  5 x 1.2volt cells
12 Volts = 10 x 1.2volt cells
24 Volts = 20 x 1.2volt cells
48 Volts = 40 x 1.2volt cells

The advantage of making a battery up from individual cells is that if one cell fails, you replace that cell.

You can add to your battery bank at any time with Nickel Iron batteries if you need to store more power. This cannot be done with lead acid batteries without reducing the life of the new batteries.

 What type of battery charger do I use?

You can either use a separate manual battery charger or an inverter with a built in battery charger. The battery likes to be charged between 1.68 and 1.8 volts per cell. (12Volt ~ 16 - 18volts, 24volt ~ 32 – 36volts etc)

I have a solar system, do I have to use a charge controller with Nickel Iron batteries?

NO you do not have to use a charge controller on these batteries as these batteries can be overcharged (up to 1.8 volts per cell) without damage. You will most likely need to check your battery electrolyte level more often. Using a self watering system will reduce the frequency you will need to check your electrolyte levels.



How efficient are these batteries?

The NiFe battery has an efficiency of around 80%. A new battery usually is slightly more efficient and usually levels off as it is used until it reaches its normal efficiency which is then held over the rest of its life. This means that over the life of a Nickel Iron battery it will be more efficient than most other batteries as other batteries efficiency reduce dramatically nearing the end of their life.

Can they be used with renewable energy systems (Solar or Wind)

YES! Most popular inverter can be used with them including maximum power point tracker (MPPT). Please contact your inverter manufacturer first. To ensure your battery works with your inverter you can drop (or add) cells to keep within the inverters working voltage range.

Maintenance of the batteries?

Maintaining the batteries is as simple as making sure the cell tops are clean from dust or dirt and kept dry. Washing them once a year assists this. Maintaining the water level in the battery is vitally important. You can either manually add water or with an automatic battery watering fill system (recommended).

What amperage do these batteries come in?

They start at 10 amp hours cells and go up to 1250 amp hour cells. You can achieve any amp hour requirement buy connecting the cells in series parallel.

Can I store them without use over a long period of time?

Yes they can be stored for a long time without use or the need to be trickle charged. Ideally if you are not going to use the battery for as extended period, they prefer to be totally discharged and emptied of electrolyte. Then when you need to re use them just refill the electrolyte and charge them back up and they will perform as they did prior to the storing them.

How place the order of CIYI batteries

Find the products you need------------- Send inquiry to us------------Get the price-----------send the PO---------------CIYI send PI-----------Clients pay deposit of the order------------Ciyi battery arrange the production----------------The clients pay the balance when goods------------Ciyi battery arrange the shipments, Send the CI, PL, B/L etc------------------The clients get the batteries, check the quality,etc,---------------------Clients install the batteries-------------Finish.

What is your payment terms:

By TT, 30% as a deposit, 70% as a balance when goods ready.

Western union is also acceptable for the small order

Letter of Credit is also welcome when the order is big

What is your warranty period of the CIYI batteries:

5-8 years from the manufacturing date, any quality problem, CIYI battery will give the free replacements

 Any question, please kindly email to us, all of your question will be responded in 24 hours.
