Mini biogas generator for high-quality biogas power plant

Supplier: Weifang Yidaneng Power Co., Ltd.
Region: Shandong, China
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Gas Mixer Brand:	IMPCO;	Brand Name:	YDN;
Speed:	1500/1800;	Frequency:	50/60;
Certification:	CE;	Packaging Detail:	For open type, packing with plywood case; For silent type, packing with bubble and stretch film.;
Alternator:	100% copper wire brushless;	Rated Voltage:	220/400V;
Regulator Brand:	MADAS;	Name:	micro biogas generator;
Certificate:	CE ISO SASO;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Warranty:	One Year Or 8000 Running Hours,1years;	Spark Plug Brand:	TORCH;
Rated Current:	7.04A;	Water Temperature brand:	Water Temperature brand: BOSCH;
Place of Origin:	Shandong China;	Supply Ability:	100 Set/Sets per Month micro biogas generator;
Model Number:	YDNYD-8;	Port:	China,Qingdao;
E-Throttle Brand:	BOSCH;

Mini biogas generator for high-quality biogas power plant

Product Description

Dear customer, this is our micro biogas generator.

Below are the detailed technical parameters of our micro biogas generator, please check out .

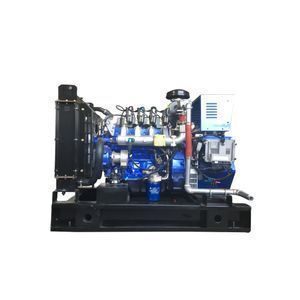

micro biogas generator
Genset Model		YDNYD-8
Rated Power (kW/kVA)		8/10
Rated Current (A)		14.4
Dimension (mm)		14507001100
Gross Weight (kg)		500
engine	Brand	YANGDONG
	Model	YD4M1D
	Configuration	Water-cooled, 4-stroke, 4 cylinder in-line
	Rated Power (kW/kVA)	15
	Rated Speed (rpm)	1500
	Cylinder No.	4
	Bore*Stroke (mm)	80*90
	Cooling Method	Water cooling
	Oil Consumption (g/kw.h)	2
	Gas Consumption (m3/h)	2.64
	Starting method	24V DC
Alternator	Brand	FARRAND (STAMFORD technology)
	Model	FLD-8
	Rated Power (kW/kVA)	8/10
	Efficiency	92.50%
	Voltage Regulation	±1
	Voltage Regulation	Brushles, Self Excitation
	Insulation Class	H
Control System	Brand	SMARTGEN
	Model	HGM6110
	Working Voltage	DC8.0V to DC35.0V, continuous
	Overall Dimensions (mm)	19715247
	Panel Cutout (mm)	186*141
	Working Condition	Temperature: (-25~70)ºC; Humidity: (20~90)%
	Weight	0.56KG

Unlike a diesel generator set, the gas system of a gas generator set is very important.
And we use more high quality gas generator parts for you as following parts:
Mix gas and air for combustion we use USA Brand IMPCO.
E-Throttle is German Brand BOSCH.
Regulator is Italian Brand MADAS
Spark plug is Chinese famous brand TORCH
Water temperature Sensor also is BOSCH
And other high quality parts
