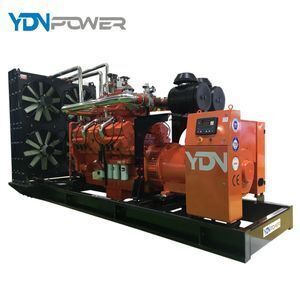

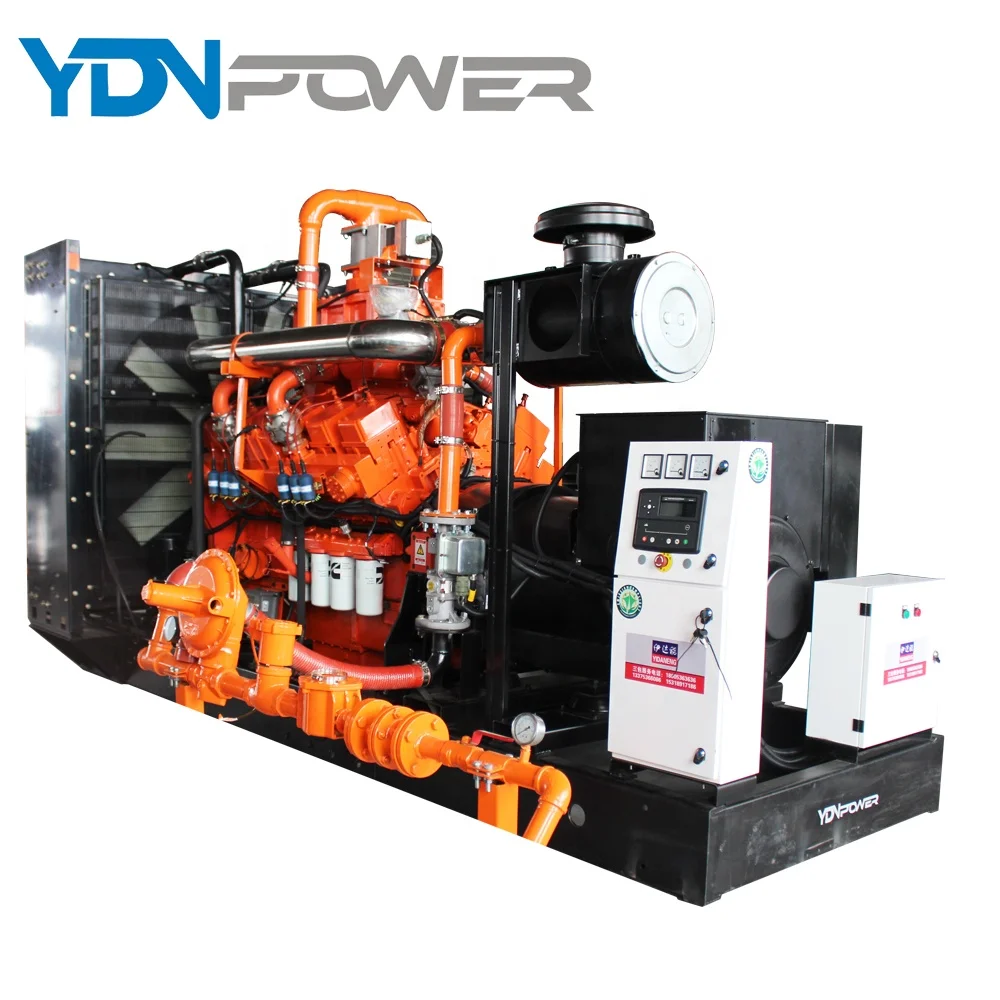

1 mw natural gas generator

Product details
Supply Ability:500 Set/Sets per Month;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Alternator:100% copper wire brushless;Brand Name:YDNPOWER;
Rated Voltage:220/380V;Optional configuration:CHP,AMF,ATS,Super silent canopy;
Certificate:ISO14001 9001 18001 CE;Thermal efficiency:50-60%;
Port:Qingdao port;Speed:1500/1800rpm;
Model Number:YDNC-1000;Ignition system:Altronic;
Regulator Brand:MADAS;Place of Origin:Shandong China;
Rated Current:1800A;Frequency:50/60HZ;
Warranty:Two Year Or 2000 Running Hours;Packaging Detail:For open type, packing with plywood case; For silent type, packing with bubble and stretch film for 1 mw natural gas generator;
Electrical efficiency:30-43%;Engine model:GTA-38;
Gas Mixer Brand:WOODWARD;
Product Description
2*500kw natural gas generator



Generator
Genset Model
YDNC-1000
Rated Power (kW/kVA)
1000Kw/1250Kva
Rated Current (A)
1800
Dimension (mm)
2250*1370*2570
Gross Weight (kg)
4100








Natural gas engine
Model
GTA-38
Gas system
WOODWARD
Ignition system
ALTRONIC
Configuration
Water-cooled, 4-stroke, 12 cylinder V-type
Rated Power (kW/kVA)
580Kw/725Kva
Rated Speed (rpm)
1500/1800
Bore×Stroke (mm)
159*159
Oil Consumption (g/kw.h)
2
Gas Consumption (Nm3/h)
160@100%@ load
Starting method
24V DC electric





Alternator
Brand
FARRAND (STAMFORD technology)
Model
FLD-500
Rated Power (KW/kVA)
500/625
Efficiency
92.50%
Voltage Regulation
≦±1
Voltage Regulation
Brushles, Self Excitation
Insulation Class
H





Control System
Brand
SMARTGEN
Model
HGM6110
Working Voltage
DC8.0V to DC35.0V, continuous
Overall Dimensions (mm)
197*152*47
Panel Cutout (mm)
186*141
Working Condition
Temperature: (-25~70)ºC; Humidity: (20~90)%
Weight
0.56kg

Requirments for natural gas

1.Methane should be at least 85%

2.The biogas temperature should be between 0-60 ℃
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 8-14KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Certifications
Our Factory
Case show
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2250(L) * 1370 (W) * 2560 (D)
Weight
4.1 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
