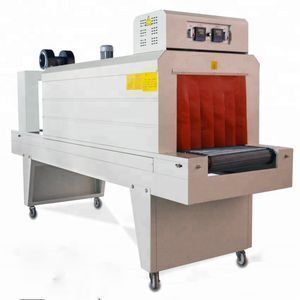

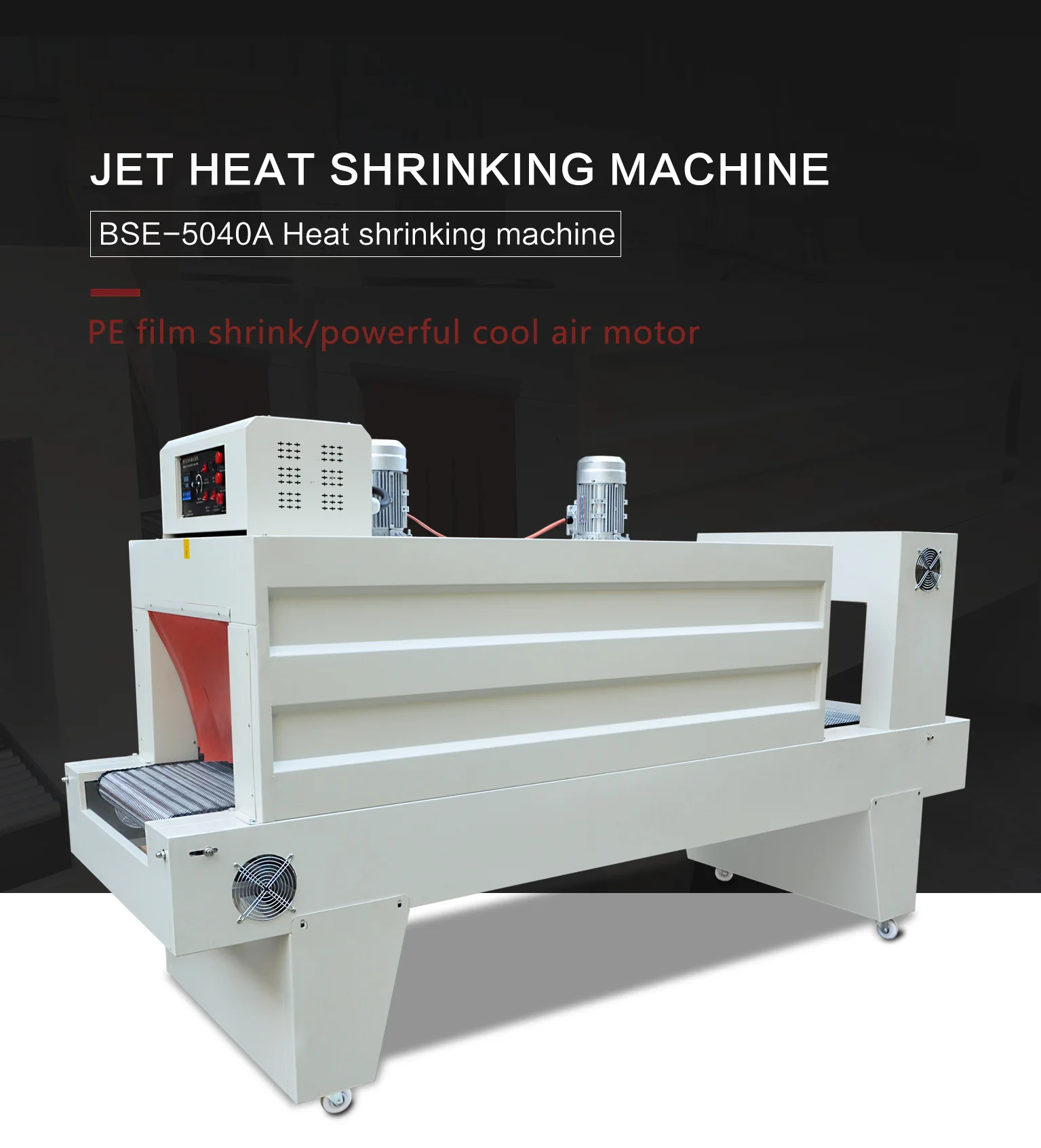

BSE-5040A PE film shrink tunnel packaging machine for skateboard
- 1150.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Application: | Beverage,Commodity,Food,Machinery & Hardware; | Brand Name: | Huili; |
| Local Service Location: | South Africa; | Condition: | New; |
| Packaging Detail: | Wooden Cases; | Showroom Location: | South Africa; |
| Certification: | CE/ISO; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Retail,Food Shop; |
| Selling Units: | Single item; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Core Components: | Motor; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; |
| Single gross weight: | 300.0 KG; | Video outgoing-inspection: | Provided; |
| Automatic Grade: | Automatic; | Warranty: | 1 Year; |
| Single package size: | 260X80X170 cm; | Marketing Type: | Hot Product 2019; |
| Packaging Material: | plastic,wood; | Place of Origin: | Zhejiang China; |
| Dimension(L*W*H): | 2500*740*1550mm; | Type: | Wrapping Machine; |
| Machinery Test Report: | Not Available; | Packaging Type: | Cartons,Bottles; |
| Driven Type: | Electric; | Warranty of core components: | 1 Year; |
| Voltage: | 220/380V; | Weight: | 300KGS; |
| Key Selling Points: | Multifunctional; |
Product Description:

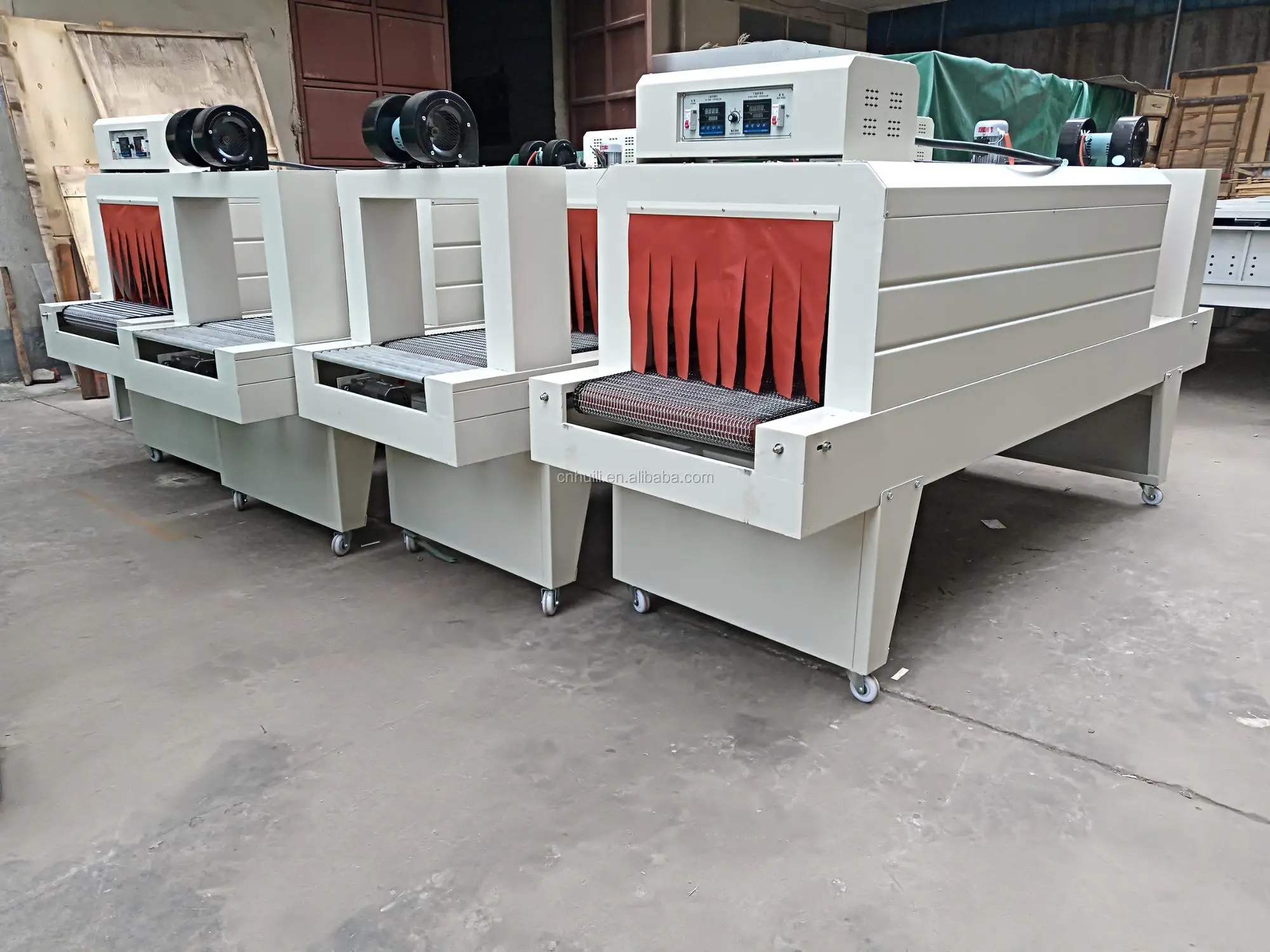

BSE series shrink tunnel adopts PE shrink film packaging design for large and heavy objects. Even the large packing object can be shrunk in a short time. The products after packing will be guaranteed in quality with clean appearance and compact in structure, which will be much easier for stacking and long-distance transportation variety of shrinking films, including PE, PVC, POF etc are applicable.
A model use High velocity-turbo tunel design;
Works with all kinds of shrink film;

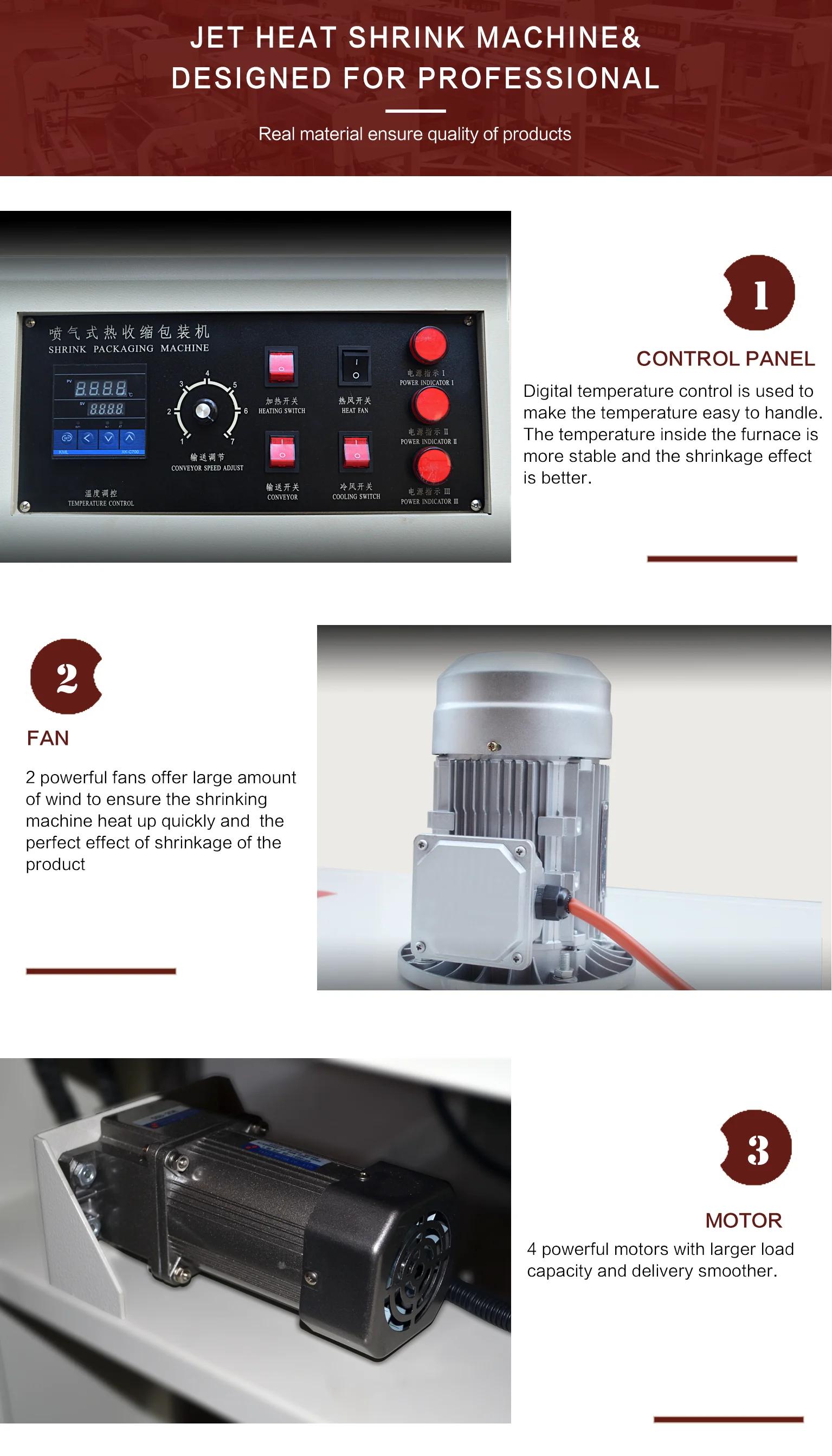

Digital temperature controlers;

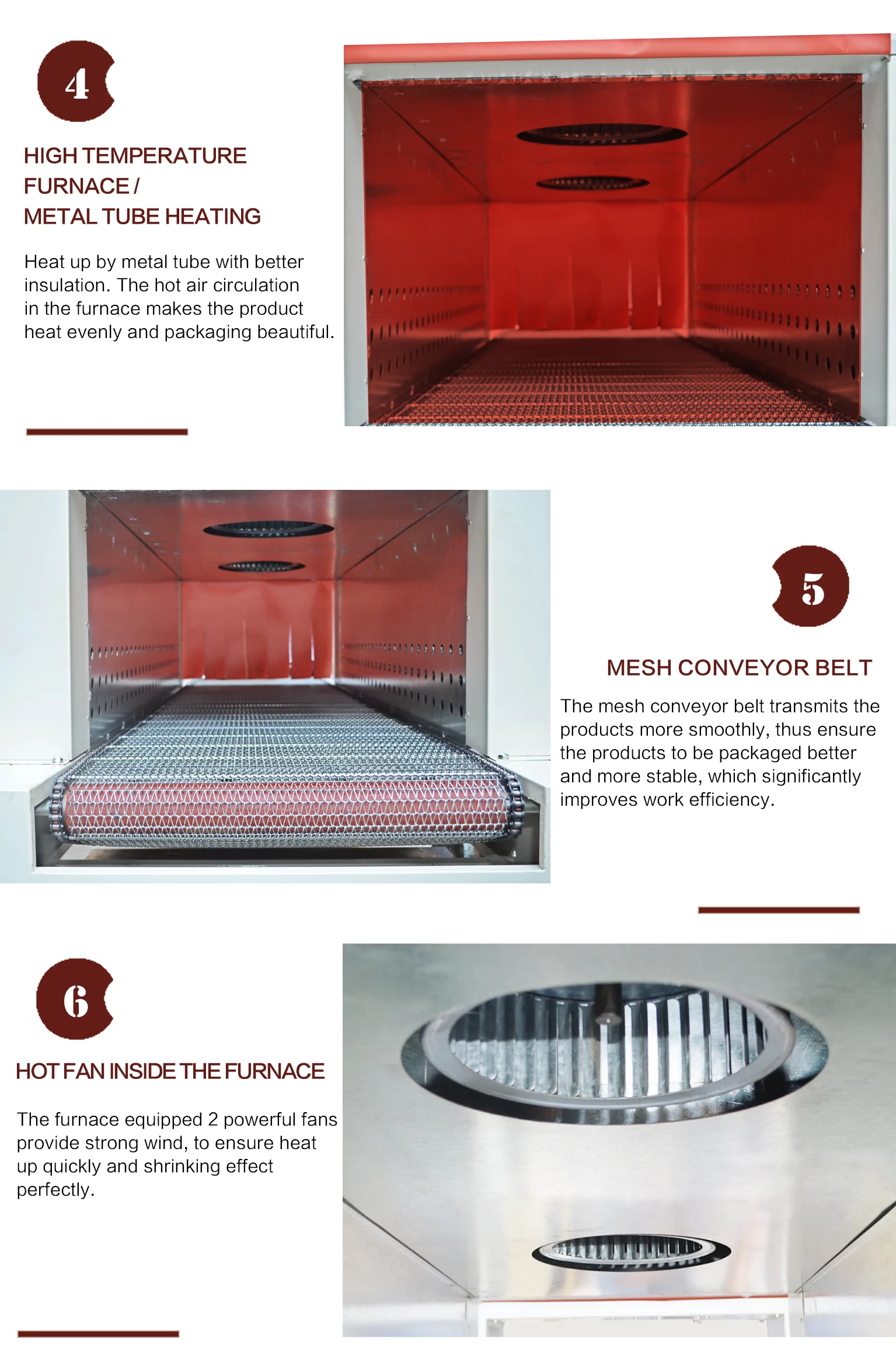

Stainless steel heater;
Top & bottom & side heating;
Variable speed belt conveyor;
Automatic cool down tiner;(increases life span)
Roller,wire mesh,options;
Safeguard cover of heat insulation

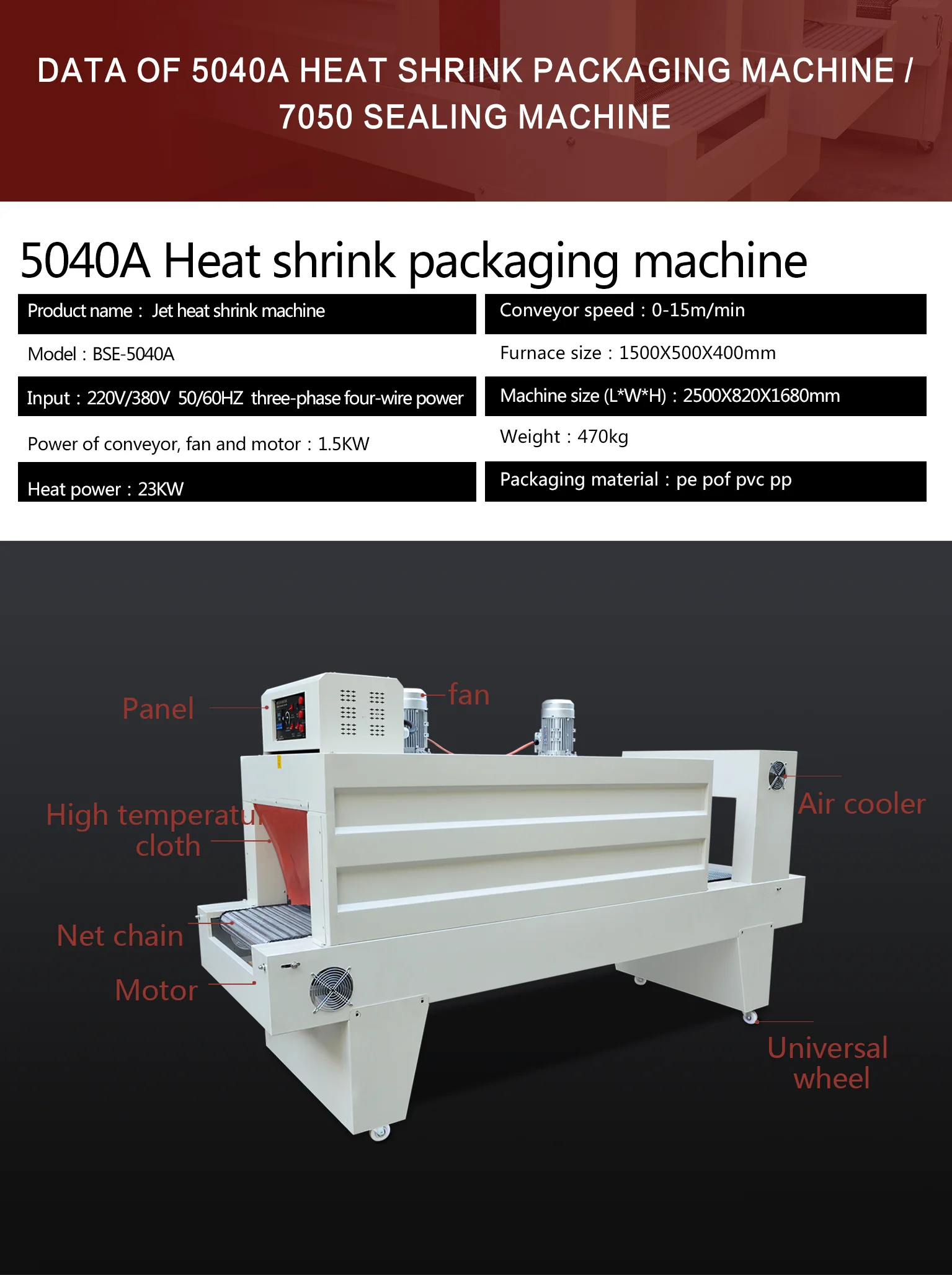

Specification:
|
Model
|
BSE4535A
|
BSE5040A
|
BSE6040A
|
|
Power supply
|
3 Phase 220V,380-460V/50-60HZ
|
||
|
Heater power
|
20KW Adjuster
|
23KW Adjuster
|
27KW Adjuster
|
|
Conveyor speed
|
0-15m/min
|
0-15m/min
|
0-15m/min
|
|
Tunnel size
|
1300×450×350mm
|
1500×500×400mm
|
1800×600×400mm
|
|
Product size
|
350×250mm
|
450×400mm
|
550×450mm
|
|
Conveyor loading
|
25kg Max
|
35kg Max
|
35kg Max
|
|
Machine size
|
2300×690×1400mm
|
2500×740×1550mm
|
2800×840×1600mm
|
|
Machine weight
|
App.230kgs
|
App.290kgs
|
App.340kgs
|
|
Shrink film
|
PE,POF,PVC,PP
|
||
