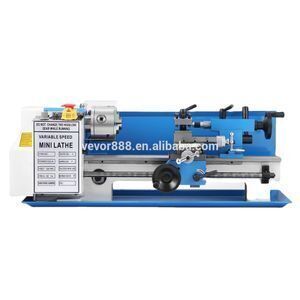

Vevor Mini Lathe Machine Metalworking Digital Control Variable Speed 550w

Product details
Warranty of core components:1 Year;Machinery Test Report:Provided;
Type:TURNING CENTER;Max. Swing Diameter (mm):180;
Top Slide Travel:1.38" (35mm);Port:ShangHai;
Max. Turned Length (mm):100;Warranty:1 Year;
Packaging Detail:82 Centimeters * 47 Centimeters * 46 Centimeters;Video outgoing-inspection:Provided;
Supply Ability:100 Set/Sets per Month;Place of Origin:Shanghai China;
Weight (KG):43 KG;After-sales Service Provided:Online support;
Cross Slide Travel:2.56" (65mm);Tail Stock Taper:MT2;
Distance Between Centers:14" (350mm);Certification:CE;
Payment Terms:L/C,D/P,T/T,Western Union,PAYPAL;Showroom Location:None;
Condition:New;Marketing Type:Ordinary Product;
Spindle Bore:0.8" (21mm);Swing Over Bed:7" (180mm);
Max. Swing Diameter:350mm;Core Components:other;
Spindle Bore(mm):32;Max. Length of Workpiece (mm):100;
Key Selling Points:Easy to Operate;Chuck Diameter:3.93" (100mm);
Machining Capacity:Light Duty;Brand Name:VEVOR;
Voltage:220V/110V;Weight:47kg;
Dimension(L*W*H):83*37*36cm;Applicable Industries:Energy & Mining;
Spindle Taper:MT3;After Warranty Service:Online support;
Local Service Location:None;
Product Description

Product Application

This precision mini lathe is designed to perform various types of metal turning. This machine can be used in areas such as mini precision parts processing, sample processing and modeling works. The precision mini lathe is perfect for the hobbyist or modeler who is looking to add finite detail to their construction project.

Whether you're turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge! With 18 threads, automatic feed and a chuck guard with micro switch, this mini lathe is ideal for use in labs, workshops, engineering and educational settings.

Product advantage

Open the switch to start the operation, do not need to worry about not touch the boot to bring security risks, emergency shutdown, just take the red cover to shut down, very safe.

Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized, but also lateral movement.
By adjusting the speed switch can control the spindle speed 100 to 2500RPM.

Machine is equipped with strong nylon gears, power strong, wear-resistant, durable, more accurate rotation. In particular, the thread is more accurate.

Machine using four-way rotating turret, which can be four common turning.
Large slide mobile handle, small slide mobile handle, bed saddle mobile handle, tailstock mobile handle, tailstock telescopic cover, tailstock side of the moving position of the scale, the operation more accurate, more professional performance.

Features

1.) This machine DC motor drived.
2.) The spindle speed readout is infinitely variable from 100 to 2500RPM.
3.) Spindle speed adjusted by MCU.Rotary direction"F"or"R"changed by key.
4.)The feed can be adjusted according to the requirement of different workpieces.
5.) This can be used as mini precision parts processing, sample processing, and modeling works.
6.) Automatic feeding.
7.) 550w strong power, 350mm processing distance, DIY processing of metal, wood.
8.) With high precision, can turn out the standard qualified works.
9.) Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.
10.) Multi-function and multi-usage, can be turned within the foreign aid, turning thread, turning taper and so on.
11.) Automatic tool, Infinitely variable, professional tool post.

Technical Data
Model
550w mini lathe
Variable Speed Gear
Plastic Nylon
Spindle Taper
MT3
Tail Stock Taper
MT2
Distance Between Centers
14" (350mm)
Swing Over Bed
7" (180mm)
Chuck Diameter
3.93" (100mm)
Spindle Bore
0.8" (21mm)
Cross Slide Travel
2.56" (65mm)
Top Slide Travel
1.38" (35mm)
Range of Metric Threads
0.5-2.5" (12-52 T.P.I Range of Imperial Threads)
Spindle Accuracy
0.0004" (0.01mm)
Spindle Speed
100-2500 RPM Infinitely Variable
Power Of Motor
0.75HP/550W/110v
Detailed Images
Packing & Delivery

Package list

MS2 # Fix The Top
Double-Headed Wrench
Oil Can
Nylon Gears
Chuck Claw
Hexagon Bar Wrench
Chuck Wrench
Protecting Mask
4 × Shockproof Foot Cushion
