CK6432A New Lathe Machine Bar Feeder Automatic Feeding CNC Lathe With Hydraulic Chuck

Click here to contact
Product details
Selling Units:Single item;Delivery Detail:0 days after payment;
Condition:New;Single gross weight:1,600 KG;
Voltage:380V/ 220v /415v;Automatic Grade:Automatic;
Control system:GSK SIEMENS FANUC;After-sales Service Provided:Engineers available to service machinery overseas;
Weight (KG):1450;Max swing over bed:360mm;
Chuck:3-jaw Chuck;Model Number:CK6432A CNC Lathe;
Single package size:200X140X205 cm;Function:Machining Metal;
Dimension(L*W*H):1815x1165x1750mm;Applicable Industries:Machinery Repair Shops,Manufacturing Plant;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Certification:CE ISO;
Max. Swing Diameter:360mm;Warranty:1 Year;
Type:Horizontal;Max. Spindle Speed (r.p.m):2000rpm;
Place of Origin:Shandong China (Mainland);Accessary:Diamond cutter tools;
Name:CNC Lathe Machine CK6432A;CNC or Not:CNC;
Package Type:CNC Lathe Machine CK6432A: Exporting standard package, water proof, anti-rust and fumigation-free.;Package Preview:https://sc01.alicdn.com/kf/HTB1nmtYaQWE3KVjSZSyq6xocXXaE.jpg_640x640.jpg;
Color:Custom-made;Key Selling Points:Competitive Price;
Turret type:4 Station Electric Turret or Gang Tool;Power(W):4KW;
Precision:High Precision;Brand Name:Taian Taizhuo;
Year:2019;
Product Description

Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.

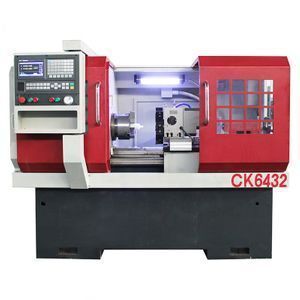

CNC Lathe Machine CK6432A

Model
CK6132A
CK6432A
Max. rotation diameter over bed
mm
Φ320
Φ360
Max. rotation diameter over pallet
mm
Φ145
Φ150
Max. workpiece length
mm
450
450
Main transmission  form
Independent spindle
Independent spindle
Spindle speed mode
Frequency stepless
speed
Frequency stepless
speed
Spindle speed range
r/min
150-2000
150-2000
Spindle bore
mm
Φ52
Φ60
Spindle hole outside taper
A2-4
MT6
Chuck diameter
mm
Φ160
Φ200
Main motor power
kw
4.0
4.0
Turret maximum stroke
mm
X: 260 Z: 450
X: 260 Z: 450
Fast-moving feed
mm/min
X: 4000 Z: 6000
X: 4000 Z: 6000
Positioning accuracy
mm
X: 0.01  Z: 0.015
X: 0.01 Z: 0.015
Workpiece accuracy
IT6-IT7
IT6-IT7
Workpiece surface roughness
Ra 1.6
Ra 1.6
Dia. of tailstock quill
mm
Φ60
Φ60
Tailstock quill stroke
mm
75
75
Taper of tailstock quill
MT4
MT4
Repeat positioning accuracy
mm
0.008
0.008
Section of turning tool
mm
20x20
20x20
Size (LxWxH)
mm
1730x1000x1570
1815x1165x1750
Net weight
kg
1000
1450

Standard configuration:

1) System:GSK928TD-L, servo motor and drive.
2) 3-jaw manual chuck.
3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

Optional configuration:

1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). 6-station electric tool post, 8- station electric tool post, Gang type tool.
5). Automatic bar feeder, Chip conveyor.

Important note: Please confirm your local voltage with our sales staff before ordering.

CNC Lathe Machine CK6432A

Optional configuration:

To Choose More Models

CNC Lathe Machine CK6136

CNC Lathe Machine CK6150

Wheel Repair Lathe WRC22

Wheel Repair Lathe WRC28VM

CNC Machining Center VMC650

CNC Machining Center VMC850

Detailed Images

Machine Detail Show

Machine quality inspection

Packing & Delivery

Packaging Details:

Exporting standard package, water proof, anti-rust and fumigation-free.
Using iron base has good bearing capacity.

Our Company

Taian Taizhuo Machinery Manufacturing Co., Ltd. ( or "TZ CNC" for short) is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.

Our Customers

Certifications

CE , SGS, Alibaba High-quality Supplier and Made-In-China Gold Supplier.

Our Service

Pre-Sales Service

1. Inquiry and consulting support.
2.  Sample testing support.
3. View our Factory.

After-Sales Service

1. Training how to instal the machine, training how to use the machine.
2. Engineers are available to service machinery overseas.
3. Warranty is one year, we would offer the parts (quality problem) free of charge during this period.

FAQ

Q1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).

Q2. How long can I get feedback after enquiry?
We will reply you within 6hrs in working day.

Q3. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

Q4. What's the main products of your company?
We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.

Q5. Where is the factory located? How can I visit there?
Our factory is located in Tai'an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.

Q6.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.

Q7. What is the package? Is it suitable for shipment?
Machines will be packed by exporting standard package, water proof, anti-rust and fumigation-free. It is very much strong for oversea transportation.

Q8. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.

Q9. Can I trust you?
Sure, we're Alibaba verified supplier & Alibaba Trade Assurance Suppier.

Q10. How long is the warranty for machines?
Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your Taian Taizhuo sales representative for details.

Q11. How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.

Q12. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.

Q13. If I can't know how to operate. Can your engineer help me programme well on machine?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.

Contact Us

If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
