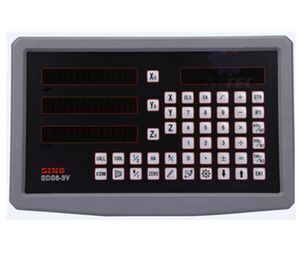

SDS6-3V three axis multi-functional DRO lathe grinding Digital Readout System Display grating ruler digital display SDS-2MS

Technical parameter:
1, voltage range: AC 80V ~ 260V 50HZ ~ 60 HZ
2, power consumption: 25VA
3, the working temperature of 0 DEG C to 45 DEG C
5, relative humidity: <90% (20 + 5 C)
6, weight: about 3.2kg
7, coordinate number: two coordinates, three coordinates
8, display: with symbols 7 bit display (two axis or three axis) data, information window using 8 bit word display symbol output
9, octave number: 4X
10. The display box allows the input signal: TTL
11. Allow input signal frequency: >100KHz
12, length resolution: 10 m, 5 m, 2 m, 1 m, 0.5 M
13 , operating keyboard: sealed film touch button
14, 0.02mm: the grating pitch, the power supply is + 5V, the output between the two 90 DEG TTL square wave signal (with zero signal
The current is 50mA (accuracy is 3 m, 5 m, 10 m)

Functional description:
1, cleared;
2, preset number;
3, public / imperial conversion;
4 , absolute / relative coordinate conversion /200 group user coordinate display;
5, power failure memory;
6, "1/2" value function key display;
7. Linear error correction;
8, sleep shutdown (DRO - 3E digital display box does not have this function)
Auxiliary zero function at 9 and 200 points;
10 , auto find zero function
