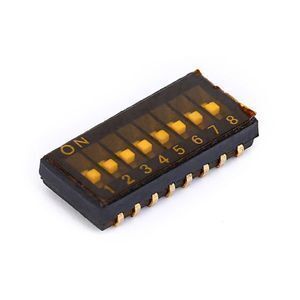

16 Pins 8 Position PCB SMT SMD Dip Switch 1.27 mm Half Pitch J Lead
- 0.01 >=2000 pieces
| Switching Rating: | 24VDC 25mA; | Brand Name: | Eker; |
| Position NO.: | 8; | Model Number: | HDS08TR8 Position PCB SMT dip switch; |
| Pitch: | 1.27mm; | Port: | shenzhen; |
| Supply Ability: | 1000000 Piece/Pieces per Month 8 Position PCB SMT dip switch; | Packaging Detail: | 8 Position PCB SMT dip switch 2000pcs/reel; |
| Terminal Type: | SMT SMD J Lead; | Place of Origin: | Guangdong China; |
| Item name: | 16 Pins 8 Position PCB SMT SMD Dip Switch 1.27 mm Half Pitch J Lead; | Operation Temp: | -30 ℃ TO +85℃; |
| Package Preview: | ; | Actuator: | Tape Sealed; |
| Max. Current: | 100 mA; | Circuit: | SPST; |
| Max. Voltage: | 50VDC; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,paypal; |
| Electrical life: | 2000cycles; | Travel of 1.27mm dip switch: | 0.6mm; |
16 Pins 8 Position PCB SMT SMD Dip Switch 1.27 mm Half Pitch J Lead
This 1.27mm mini micro dip switch are used for garage door openers, telecommunications, test & instrumentation, and controller applications, etc.
Advantages:
- • Half-pitch surface mount DIP Switch
- • 1 to 12 positions, top tape seal optional
- • Tube or tape and reel packaging
- • OEM&ODM welcome
| Type | Half Pitch 1.27mm |
| Model Number | HDS/HDJ |
| Terminal | SMT/SMD S/J Lead |
| Operation Force | 1000gf max |
| Electrical Life | 2000Cycles |
| Operation Temp | -40℃ ~ +85℃ |
Switch/Non-Switch Rating | 24VDC 25mA; 50VDC 100mA |
Available Positions | 1, 2, 3, 4, 5, 6, 8, 10, 12 |
Mounting | PCB surface mount |
If need more information about smd mini dip switch, please contact us to get the datasheet.
24H * 7 Days Afte Sales!
Other Types of Switch:
We specialize in : " DIP SWITCH / TACT SWITCH / PUSH BUTTON SWITCH / ROTARY SWITCH / AUTOGATE OPENER SWITCH / WALL SWITCH / HOME PLUG" for 15 years, with the strength of long life, waterproof, good quality and pretty competitive price.
1. Packaging
-2000pcs/reel.
2. Shipment
-By DHL, FEDEX, TNT, UPS, EMS, SF or other service as you like.
-5-10 days .
Paypal, T/T, Western Union, etc.
Q: Can I get free sample for test before place an order?
A: Yes, we offer FREE SAMPLE for you test.
Q: Does your company accept small order?
A: Yes, we accept small trial order.
Q: Does your company accept online order?
A: Yes, we accept Trade Assurance Online Order and Secure Payment Online Order, they will keep you money in safe.
Q: How can I do if there is some problem with the goods?
A: You can ask for FULL REFUND if there is any quality problems with our products, except human factors.
