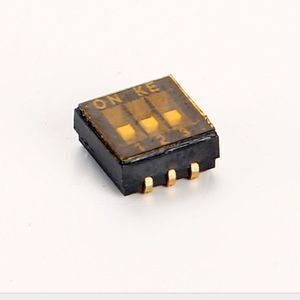

3 way 6 pin J Lead smd 1.27mm Half Pitch Dip Switch
- 0.01 >=2000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Rating: | 25mA, 24V; | Color: | Black; |
| Max. Current: | 100mA; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; |
| Brand Name: | EKER; | Positions: | 3 pos; |
| Packaging Detail: | 1).HDJ03TR switch inner pack:2000pcs/reel 2).Ctn Vol:37cmx37cmx18cm 3).Qty/Ctn:10000pcs; | Max. Voltage: | 50VDC; |
| Certification: | RoHS; | Actuator: | Tape Sealed & Recessed; |
| Inner Pack: | 2000pcs/reel; | Port: | Shenzhen; |
| Package Preview: | https://sc02.alicdn.com/kf/H1e27c663d7c2409db45f3eb750bea3c16.jpg_640x640.jpg; | Sample: | Offer free sample; |
| Circuit: | SPST; | Place of Origin: | Guangdong China; |
| Pitch: | 1.27mm; | Terminal: | J lead; |
| Supply Ability: | 2000000 Piece/Pieces per Month 3 way 6 pin J Lead smd 1.27mm Half Pitch Dip Switch; | Model Number: | HDJ03TR 3 way 1.27mm Dip Switch; |
3 way 6 pin J Lead smd 1.27mm Half Pitch Dip Switch
Specification
| 3 way 6 pin J Lead smd 1.27mm Half Pitch Dip Switch | |
| MECHANICAL | |
| 1).Operation Force | 500gf max |
| 2).Stroke | 0.9mm |
| 3).Operation Temp | -30deg C to 85deg C |
| 4).Storage Temp | -40deg C to 85deg C |
| 5). Available Positions | 1.2.3.4.5.6.8.9.10.12 |
| ELECTRICAL | |
| 1).Electrical Life | 2000 operations cycles |
| 2).Non-Switching Rating | 100mA, 50VDC. |
| 3).Switching rating | 25mA, 24VDC. |
| 4).Contact Resistance | 50mOhms max. at initial;100mOhms max.after life test. |
| 5).Insulation Resistance | 100MOhms,500VDC |
| 6).Dielectric Strength | 500VAC/1 minute |
| 7).Circuit | SPST |
3 way 6 pin J Lead smd 1.27mm Half Pitch Dip Switch
- Half-pitch low profile DIP switches are surface mountable and come in tape and reel packaging.
- These DIP switches are used for garage door openers, test & instrumentation, telecommunications,
- and controller applications, among others.
Half-Pitch surface mount DIP Switch
• From 1 to 12 positions
• Tape sealing available
• Tube or tape and reel packaging options
• Small quantity is available
• Free sample for test
