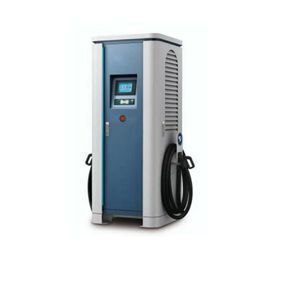

Customized DC charging pile for electric vehicle 50-150kw factory supply EV fast charger double gun

Supplier: Changsha Sunda New Energy Technology Co., Ltd.
Region: Hunan, China
Contact: Ms. Rita Liu
Price: $14000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	China port;	Model Number:	SD-254;
Place of Origin:	Hunan China;	Rated outpur current:	32A;
Input:	AC220-240v 50-60Hz;	Communication mode:	CDMA,GSM,3G;
Rated output power:	50-150kw;	Supply Ability:	50000 Piece/Pieces per Month;
Brand Name:	SUNDA;	Packaging Detail:	Plastic wrap or wooden box;
Power factor:	0.98;	Payment Terms:	L/C,T/T,Western Union;

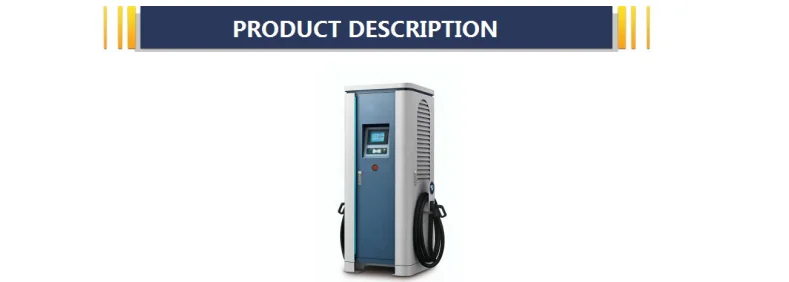

Customized DC charging pile for electric vehicle 50-150kw factory supply EV fast charger double gun

	Model	60KW	75KW	90KW	120KW	150KW
Input	Line voltage (VAC)	AC 400 ± 10%
	AC power connection	3P + N + PE
	Frequency (HZ)	50Hz ± 5%
	Power factor	≥ 0.99
	Current THD value	≤ 5%
Output	Output current (A)	0~125	0~125	0~150	0~200	0~200
	Voltage regulation accuracy	≤ ±0.5%
	Steady current accuracy	≤ ±1%
	Ripple peak factor	≤ 0.5%
	Output voltage range (VDC)	200~750
	Charging interfaces	1 or 2 (optional)
	Output power (kW)	60	75	90	120	150
	Packaging	Wooden packing
General	Dimensions (W×D×H:mm)	590 x 820 x 1840
	Cable length (m)	7 or 10 (optional)
	IP level	IP54
	Communication	PLC (between charger & vehicle) Ethernet (between charger & charger)
	Cooling	Air Cooled
	Full load efficiency	≥ 94%
	Versatility	IEC/EN 61851, IEC/EN 62196 meet
	Ambient temperature (℃)	-20~+50

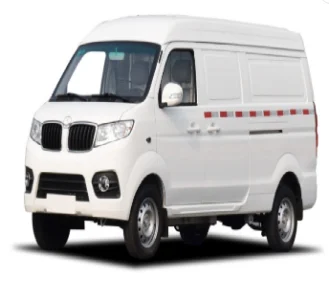

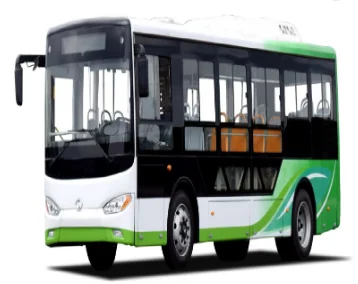

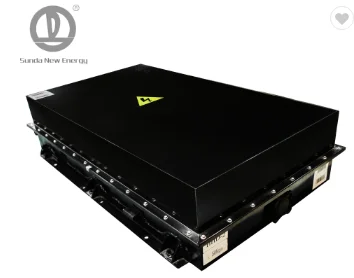

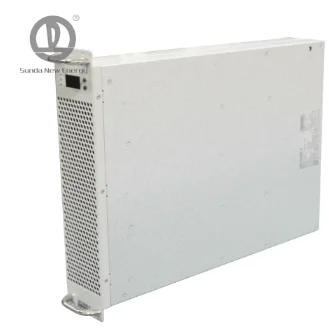

Electric Van Electric Bus Battery Pack Charging Module

Changsha Sunda New Energy Technology Co., Ltd was established in 2014, with a registered capital of RMB 148.18 million.

Based on technical support from Central South University, Sunda has established an advanced testing and experimental center, and carries out multi-project inspections and experiments on batteries and components to ensure product quality and continuously improve product competitiveness.

The company's existing technical staff account for more than 25% of the employees, the average age of technical personnel is 30 years old, of which 70% are undergraduate and above. At present, a leading domestic talent team has been formed for the development of BMS and battery cabinet structures.

Sunda New Energy is also a state-level high-tech enterprise which distributes electric vehicles and manufactures charging piles and battery pack with relevant patent and certificates such as ISO, CQC, IEC and SGS.

Our factory has 1 charging piles production line with capacity of anual scale of 30,000 sets and 2 automotive battery pack production lines with capacity of anual scale of 1GWh lithium iron phosphate battery ,which adopts advanced continuous laser welding technology.

FAQ

Q1. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What is your common terms of delivery?
A: EXW, FOB, CFR, CIF

Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you offer customized service?
A: Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.

Q5. How to ensure product quality?
Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.

Q6: What is the warranty term?
A: We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
