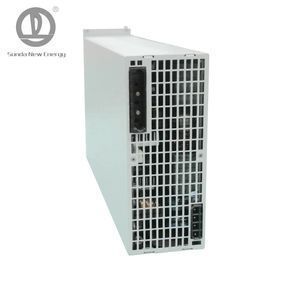

15KW High Quality CCS; CCS2; Chademo Standard Electric Vehicle Power Supply Module/ Charging Rectifier/ Charger station for EV

Supplier: Changsha Sunda New Energy Technology Co., Ltd.
Region: Hunan, China
Contact: Ms. Rita Liu
Price: $750.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Input voltage:	304VAC~485VAC;	Output Type:	DC;
Dimension(mm):	219.584395;	Place of Origin:	Hunan China;
Brand Name:	Sunda;	Output Current:	0-25A;
Output Voltage:	200-750v;	Supply Ability:	100000 Piece/Pieces per Month;
Size:	219.584395 mm;	Weight:	<10 KG;
Model Number:	SR75020-E;	Output Power:	15KW;
Product name:	15KW Chademo Standard Electric Vehicle Power Supply Module;	Port:	Shenzhen/Guangzhou/Ningbo/Shanghai;
Payment Terms:	L/C,T/T;

Sunda New Energy 15KW High Quality CCS; CCS2; Chademo Standard Electric Vehicle Power Supply Module/ Charging Rectifier/ Charger station for EV

Speicification

Item		Parameter
DC output	Model	SR75020-E
	Output	750V/20A
	Output rated power	15KW
	Output voltage range	200~750V
	Output current range	0~25A
	Output overvoltage protection	760±5V
	Output undervoltage alarm	190V±2V
	Short circuit protection	In case of short circuit, it can automatically restore.
	Output voltage tolerance	≤±0.5%
	Load sharing	≤±3%
	Max. startup overshoot	≤±1%
	THD	≤5%
	Boot time	Start time 3s≤t≤8s
	Efficiency	Highest efficiency>96%, rated efficiency>95%
AC input	Input voltage	304VAC~485VAC
	Input frequency	45Hz~65Hz
	Number of phase	Three-phase + Protected earth wire
	Power factor	Rated output load PF≥ 0.99
	Max. input current	<31A
	Input Undervoltage protection	255V ±5V,Hysteresis ≥15V
	Input overvoltage protection	490V ±5V, Hysteresis ≥15V
	Input power limit	Input voltage Vin is 304V ±5V~260V±5V, output power is derated linearly to 50%
Communication & alarm	Communication	CAN & 485
	Max. Number of parallel machines	60pcs
	Alarm and status	Report to monitor via CAN bus or 485 bus; Display it on LED panel
Operating environment	Operating temperature	-30℃~65℃
	Over temperature protection	On temperature >70°C±4°C or <-40°C±4°C, module will shut down automatically
	Storage temperature	- 40°C~85°C
	Humidity	≤95% without condensation
	Pressure	79kPa~106kPa
Physical characteristics	noise	<55dB
	cooling method	Fan cooling
	Dimensions	219.5mm (H) 84mm (W) 395mm (D)
	Weight	<10Kg
	MTBF	120000 hrs(40℃)

Product Description

15KW series EV charging rectifier is specially developed for the EV DC supercharger. It has high power factor, high efficiency, high power density, high reliability, intelligent control and handsome appearance advantage. High-reliability hardware design and intelligent digital control techniques work together to predictively prevent failures and ensure high reliability.

Packaging & Shipping

⇒Package:

Standard carton package or package required by the customer.

⇒Shipping:

Shipping By Air or By sea
