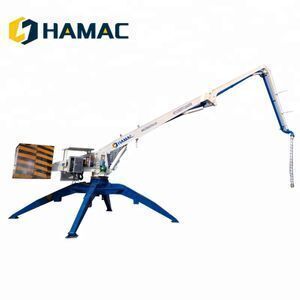

HGY15 Series Spider Type Concrete Placing Boom
-
Supplier: Zhengzhou Hamac Automation Equipment Co., Ltd. -
Region: Henan, China -
Contact: Ms Karin Hamac -
Price: $20000.00 /set -
Min. Order: 1 set
| Control mode: | Panel/ Wireless remote control; | Certification: | CE/ISO9001; |
| Port: | Qingdao, China; | Delivery Detail: | Within 20 working days after receipt of down payment; |
| Supply Ability: | 50 Set/Sets per Month HGY15 Series Spider Type Concrete Placing Boom; | Power(W): | 4 KW; |
| Payment Terms: | L/C,T/T,Western Union; | Packaging Detail: | Nude packed in the container. One complete set HGY15 Spider type concrete placing boom requires one 40 feet container.; |
| Max. placing radius: | 15m; | Dimension(L*W*H): | 8900*4000*2585 mm; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Model Number: | HGY15; |
| Condition: | New; | Warranty: | 12 Months; |
| Weight: | 3530kgs; | Voltage: | 380V/50HZ; |
| Place of Origin: | Henan China (Mainland); | Rotary range: | 360 degree; |
| Brand Name: | HAMAC; |
INTRODUCTION
HGY15 Series Spider Type Concrete Placing Boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity.
PERFORMANCE
This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.
1. HGY spider hydraulic concrete placing boom can be placed according to needs of field pouring;
2. Compact structure, light weight, and can be hoisted and transported as a complate part;
3. Flexible, mobile placing boom is being widely useD and applicable for complex construction site;
4. Easy operation, safe and reliable, economical and practical.
MANUFACTURING PROCESS
SPECIFICATION
Item | HGY15 |
Max. placing radius(m) | 15 |
Big arm length(m) | 6 |
Big arm elevation(°) | 0~70 |
Medium arm length(m) | 5 |
Medium arm elevation(°) | 0~180 |
Small arm length(m) | 4 |
Small arm elevation(°) | 0~180 |
Hose length(m) | 3 |
Concrete delivery pipe (mm) | ø 125×6 |
Tail Rotary radius(m) | 2.81 |
Total Power(Kw) | 4 |
System Pressure(MPa) | 24 |
Rotary speed(r/min) | 0.3—0.8 |
Rotary range(°) | 0~360 |
Supporting legs span (m) | 4×4 |
Overall height(m) | 2.6 |
Bare machine weight(kg) | 3530 |
Balance weight(kg) | 2×1100 |
Control mode | Panel/ Wireless remote control |
GOODS DELIVERY
SUCCESSFUL CASES
CUSTOMER VISIT US
ABOUT HAMAC
HAMAC follows its strict Quality Control system obediently which guarantees the premium quality of our products. Oriented by the requirements from our clients, we are able to customize the products to fit the demand. With over decade experience on international business trade on machinery of our staff, we are able to provide the solutions to all your problems regarding to the international trade.
PRODUCTION BASES
We have different products bases in different cities in China. Our main products are concrete batching plant, different concrete mixers, concrete pumps, concrete placing boom, truck mounted concrete boom pump etc. In addition to this, we also provide clients with complete solutions which cooperates with our sister companies.
CONTACT US
You can contact our head-office directly, also you can contact the oversea-offices which is near you. Of course, free live-chat is available and you can get help immediately.
-
