RG API certified Efficient Oil Drilling Fittings Customizable YG70 Block Hook

Product details
Brand Name:RG PETRO-MACHINERY GROUP CO., LTD.;Use:hoisting system;
Type:Drill Pipe Elevator;Local Service Location:none;
Place of Origin:China;Video outgoing-inspection:Negotiable;
Warranty of core components:1 Year;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Condition:New;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Warranty:1 Year;Port:Tianjin,Qingdao,Shanghai;
Applicable Industries:Manufacturing Plant,Energy & Mining;Showroom Location:none;
Machinery Test Report:Negotiable;Model Number:YG70;
Supply Ability:4 Set/Sets per Month;Marketing Type:Hot Product 2019;
Packaging Detail:the product is packed in wooden or as customer requirement;Core Components:Bearing;

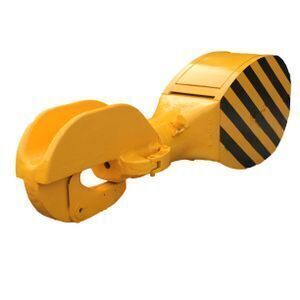

RG API certified Efficient Oil Drilling Fittings Customizable YG70 Block Hook

Product Description



Feature:

1. Integrated design of travelling block and hook body, small overall size and compact structure.

2. The main bearing parts are made of high-strength alloy steel cast or forged and welded, and have passed non-destructive testing.

3. The surface of pulley rope groove is hardened to provide long wear resistance.

4. The hook can be 360 ° rotation and position lock.

5. The design and manufacture of the travelling hook conform to API 8C specification.





Main Parameters

Model YG70
Max load (kN) 675
Pulley OD (mm) 610
Pulley Qty 3
Wireline diameter (mm) 22
Hook type Three-hook
Hook opening dimension(mm) 110
Spring stroke (mm) 115
Overall dimension(mm) L 1840
W 692
H 456
Mass(kg) 1150





Company Profile































RG PETRO-MACHINERY GROUP CO. LTD. was named No.2 Petroleum Machinery Manufacturing Plant of National Petroleum Industrial Ministry of China, reformed from state-owned enterprise to a limited liability company in 2004. In 2016,company was reformed as incorporated company.RG PETRO-MACHINERY GROUP CO., LTD. is National Technical Equipment Production Base, Light-duty Drilling Rigs Production Base, National Innovative Enterprise, National High and New Technology Enterprise, State Torch Plan Key New-and High-tech Enterprise, National New Product Trial Production, Top One Hundred Enterprise of Independent Innovation in China, Top Ten Enterprise of Petroleum Equipment in China, Henan Province Petroleum Drilling Equipment Export Base and Henan Province Top Twenty Enterprise of Patent Application, and a member of IADC.



Our products cover 12 series with over 200 kinds, including truck-mounted drilling rigs, skid-mounted drilling rigs, trailer-mounted drilling rigs, work over rigs, logging equipments, etc. Especially, RG PETRO-MACHINERY GROUP CO., LTD. firstly proposed an idea for portable drilling equipments with characteristic of quick-carrying and operation automation in China, and put it into the development of portable drilling equipments. RG PETRO-MACHINERY GROUP CO,. LTD. developed the first 3000m truck-mounted drilling rig in China and was awarded the state-level second-class award of advance science and technology, awarded the national recognition with the Shenzhou V Spacecraft, and the award is the highest science and technology award in the petroleum equipments industry till now. 4000m truck-mounted drilling rig and 4000m trailer-mounted drilling rig developed by RG PETRO-MACHINERY GROUP CO., LTD. is the largest self-propelled drilling equipment in the worldwide, with high-competitive in the international market, providing the advanced drilling equipment for factory drilling.



The company is supplying the logging and cementing technology and the oil & gas services and to be best international advanced integration oil & gas equipments manufacture and services supplier.

Certifications



ISO                 API                   CCC



Customer Photos































Exhibition





FAQ

1. What are the delivery times?
In general, it will take 35-60 days after receiving deposit. The specific delivery time depends on the items and quantity of your order.
2. Do you have a MOQ limit?
Yes it depends on the products size and production process.
3. What are your payment methods?
T/T, L/C,D/P,D/A, Western Unions payments are available.
4. What after-sales service can you provide?
RG GROUP has set up professional service branches for major oil fields abroad. It has developed a whole-process and all-round after-sales service system, including equipment installation and debugging, maintenance, testing, operation training and spare parts supply.
