Used Widely JBT30 Concrete Pump With Mixer

Product details
Concrete pump type:Reliable Concrete Pumping;Color:Customers' Requirement;
Capacity:30cubic/h;After Warranty Service:Video technical support,Online support;
After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;Package Preview:;
Applicable Industries:Manufacturing Plant,Construction works ;Hopper capacity:0.6m3;
Machinery Test Report:Provided;Video outgoing-inspection:Provided;
Application:Construction Engineering;Engine:Elctric;
Payment Terms:L/C,T/T;Supply Ability:200 Set/Sets per Month;
Keyword:Concrete Mixer Pump Machine;Power Type:Electric;
Port:Qingdao / Shanghai Port China;Certification:ISO;
Warranty of core components:2 years;Condition:New;
Engine model:Weichai Power WP10.290;Max. horizontal conveying distance:300M;
Product name:Concrete Mixer Pump;Showroom Location:Philippines,Bangladesh;
Place of Origin:China;Weight:3500kg;
Warranty:2 years;Packaging Detail:main machines tightend to containers, spare parts in wooden case JBT30 Concrete Pump With Mixer;
Marketing Type:New Product 2020;Productivity:15M³/H;
Core Components:Pressure vessel,Motor,Bearing,Gear,Pump,Gearbox,Engine;Local Service Location:Philippines,Pakistan,Sri Lanka,Bangladesh,Uzbekistan;
UNIQUE SELLING POINT:High operating efficiency;Max Aggregate Size:5-40mm;
Brand Name:UNIQUE;Max. vertical conveying distance:130M;
Dimension(L*W*H):4300*2060*3680(mm);

JBT30 Concrete Pump With Mixer

Product Description

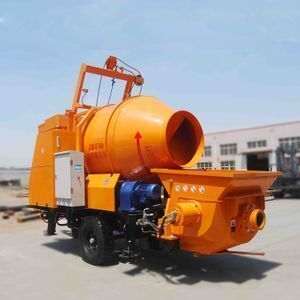

Description of JBT30 Concrete Mixer with Pump:

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump.



It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.



The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.







Parameters of JBT30  Concrete Pump With Mixer :

Max theoretical concrete conveying capacity

30m3/h

Distribution valve model

S tube valves

Hopper capacity * filling height

500L* 1200mm

Pump motor power

30kw

Winding motor power

4kw

Hydraulic circuit form

Open circuit

Rated speed

1480Rmp

Oil tank volume

170L

Weight

3500kg

Concrete pumping pressure

9Mpa

Concrete cylinder size * length

180mm*800mm

Discharge mouth diameter

180mm

Mixing motor power

3*2kw

Water pump motor power

550w

Max aggregate diameter

Pebble: 40mm

Gravel: 30mm

Voltage

380v

Dimension(L*W*H)

4300*2060*3680(mm)



Product Feature of concrete mixer pump:

1. Mixing and pumping of the perfect combination, to save weight and transportation space frame.
2. high work efficiency.
3. Save labor costs, reduce labor intensity.
4. Smaller power, consider the carrying capacity of rural power grid.
5. Simple operation, easy to use.
6. Double cylinder hydraulic pumping system, capable of delivering crushed stone concrete, stable performance, safe and reliable.

7. Long distance delivery.



Packaging & Shipping



Company Information

   Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Mixer Truck, Concrete Pumps and Block Making Machines and etc…

        UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.
       UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!









Customer Visit





Related Products:

FAQ



Q1.: Are you trading Company or Factory?

A: We are factory. We have been engaged in the production of concrete mixer with pump for more than 30 years.



Q2: What is the capacity of your concrete mixer pump?

A: We have 30m-40m3/h.



Q3: How long and high you want to pump?

A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.



Q4: The aggregate size that you usually use?

A: Pebble 40mm, crushed stone 30mm.
