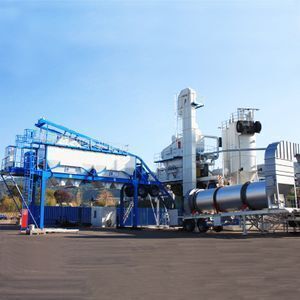

China supplier new 80t/h mini hot mix mobile asphalt plant for sale

Supplier: Zhengzhou Unique Industrial Equipment Co., Ltd.
Region: Henan, China
Contact: Mr David Lu
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	After-sales Service Provided:	Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Application:	Construction Industry;	Port:	Chinese Port;
Product name:	mobile asphalt plant for sale;	Condition:	New;
Brand Name:	UNIQUE;	Capacity:	80 t/h;
Certification:	CE and ISO;	Place of Origin:	Henan China (Mainland);
Mixer capacity:	1000kg/batch;	Voltage:	380V;
COLOR:	Customizable;	Power(W):	303kw;
Dimension(LWH):	30m28m17m;	Applicable Industries:	Construction works ;
Weight:	40ton;	Mixing Type:	Hot Asphalt Mixing Plant;
Payment Terms:	L/C,T/T,Western Union;	Packaging Detail:	main machines tightend to containers, spare parts in wooden case;
Supply Ability:	500 Set/Sets per Year;

China supplier new 80t/h mini hot mix mobile asphalt plant for sale

Product Description

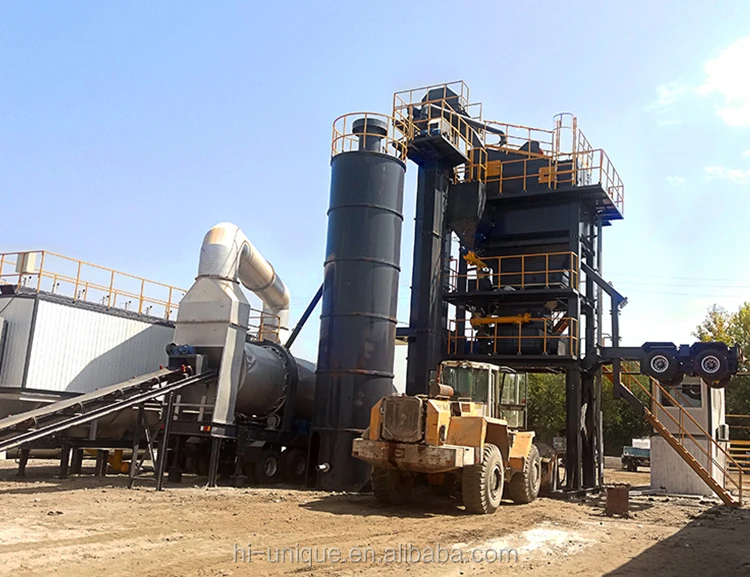

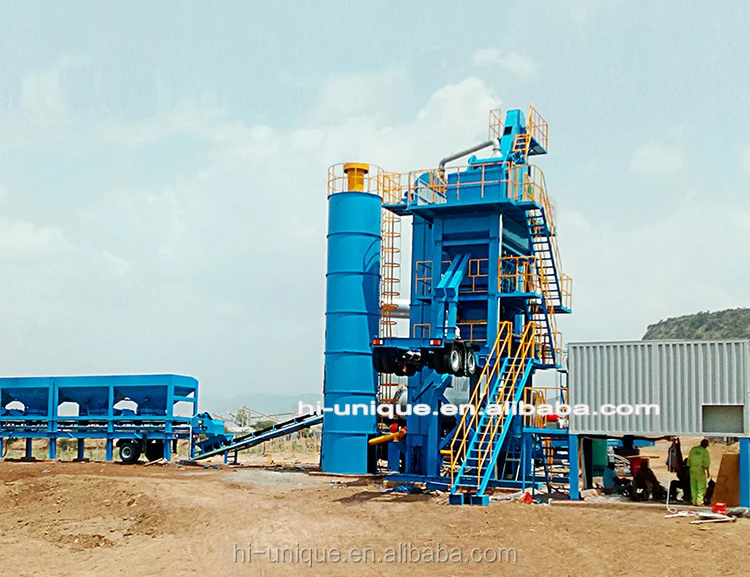

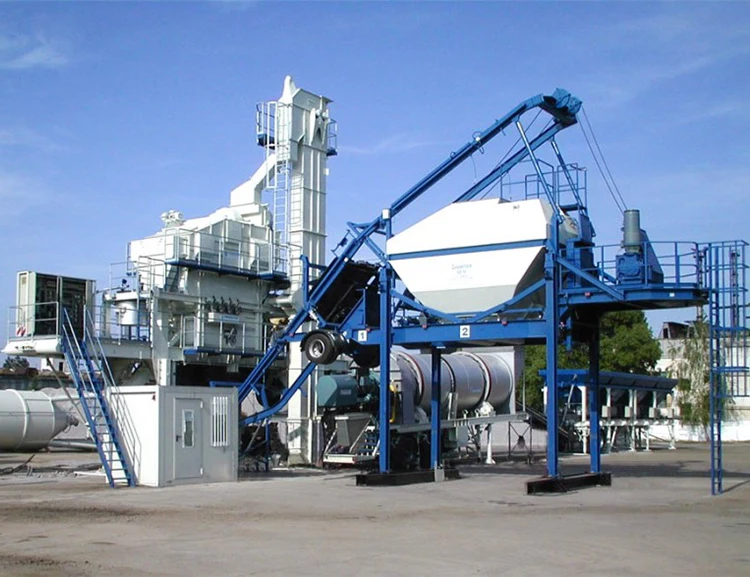

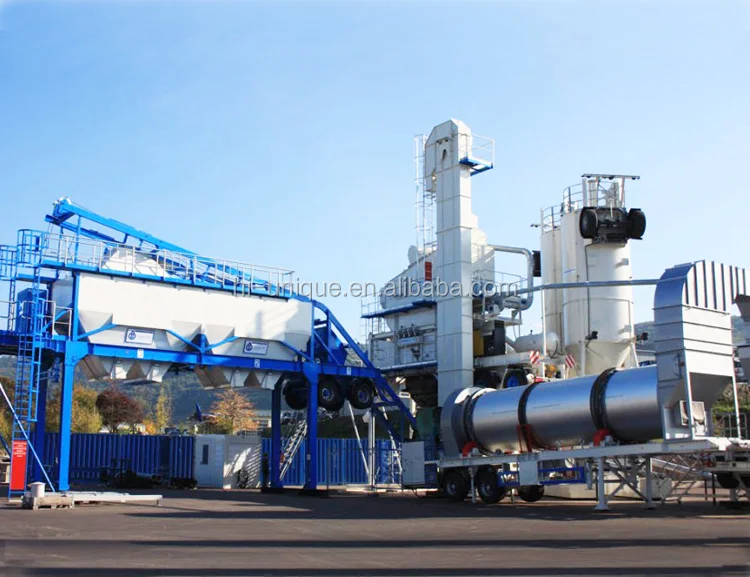

The YLB series Mobile Asphalt Mixing Plant is Based on quickly installation and easily transportation consideration,it features modular design and compact structure.

It has higher degree of pre-assembly. All the features make it faster, easier and more economical for installation, shipping, reset Main components are world famous brand. This brings stability,low power consumption and enviromental demand.

The whole disassembly and installtion job could be finished fast ,end users can save much labor cost and time. It is widely used for the construction of highway, bridge, and other infrastructure as well as suitable for daily road maintenance.

Introduction:

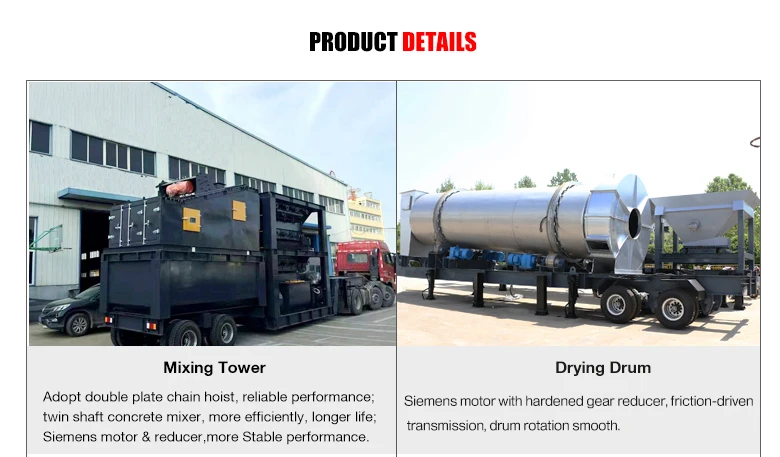

YLB series mobile asphalt batch mixing plant mainly including : cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supplier system, bitumen supply system, electrical control system, finished asphalt storage bin.

Parameters:

Model			YLB1000
Main Parameters	Capacity(t/h)		80
	Total Power(kw)		242
	Noise(dB)		≤70
	Voltage		220V/380V-50HZ(Adjustable)
Cold Feeder (Mobile Type)	Cold Bin(m³)		4*7
	Belt Feeding Capacity(t/h)		90
	Belt Width(mm)		500
	Feeding Belt Adjustment Mode		Frequency Invertor
Drying System (Mobile Type)	Drying Capacity(t/h)		90
	Dryer Drum Size(mm)		Φ1600*6800
	Drive Motor Power(kw)		4*7.5
	Fuel		Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas

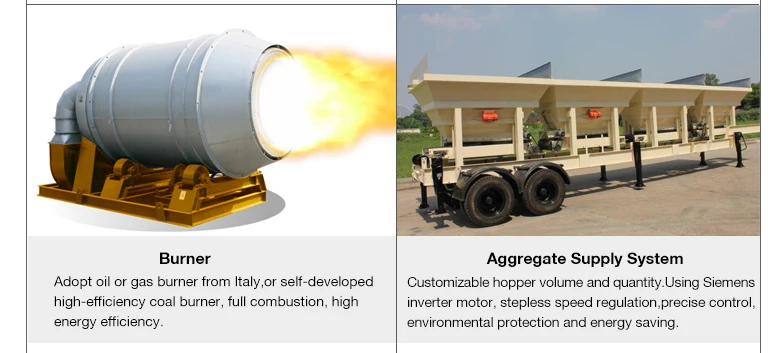

	Coal Burner	Max Burning Amount(kg/h)	1300
	Oil Burner	Max Burning Amount(kg/h)	110-550

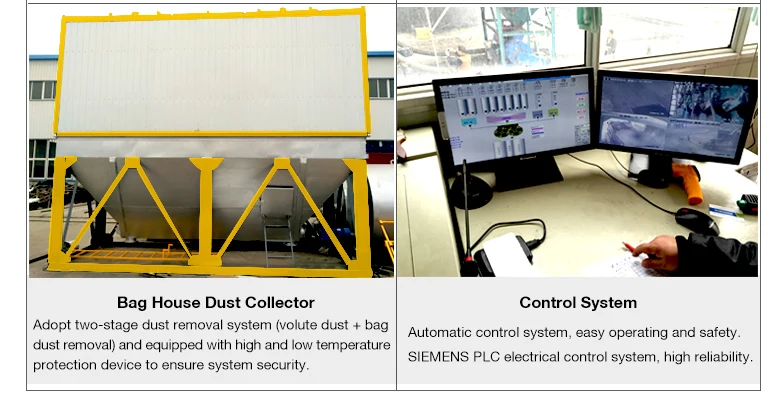

Dust Collecting System(Mobile Type)	Primary Gravity Dust Collector		Cyclone Dust Collector, Volute Casing Collector
	Baghouse Dust Collector	Filter Area(m²)	380
		Filter Bag	NOMEX (USA. DuPont)
		Air Emissions	≤20mg/Nm³
		Air Black	RingelmannⅠ
		Blower(m³/min)	570
Mixing Tower (Mobile Type)	Hot Aggregate Elevator	Type	Chain Elevating
		Capacity(t/h)	110
	Vibrating Screen	Screening Decks	4
		Screening Area(m²)	14.7
	Hot Storage Bin	Quantity	4+1
		Capacity(m³)	24
	Mixer	Mixer Capacity(kg)	1000
		Type	Double Axis Forcing Stirring Batch Mixer
		Mixing Period(s)	45
		Mixing Power(kw)	2*18.5
	Weighing System		Hot Aggregate:±0.5%; Bitumen: ±0.25%; Filler:±0.2%

Features:

1, Mobile modular structure, easy and convenient for moving and installation;

2, high efficient energy saving aggregate heating system;

3, Adopted accurate measurement technology;

4, Innovative higly efficient mixing technology ;

5, Ergonomic automatic control system;

6, Emission meets environment protection requirements;

7, Stable and reliable, easy for maintenance;

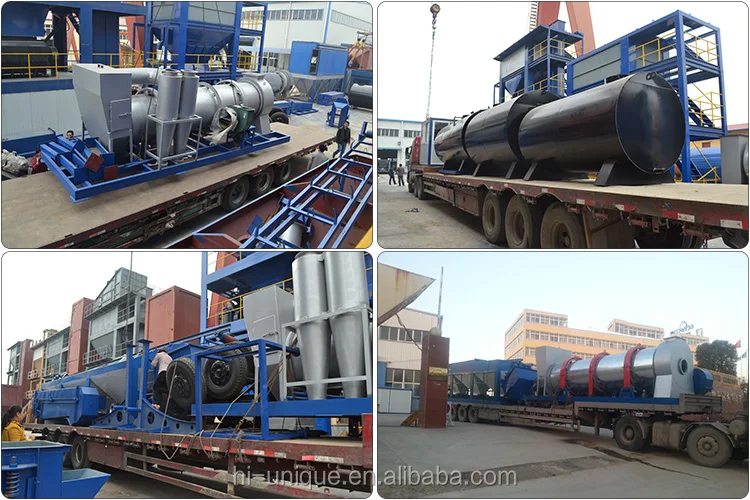

Packaging & Shipping

The goods are going to be shipped with the standard packing of the mobile asphalt plant.

Packing is to be protected the goods against any damage or corrosion when the goods are transported by sea transportation. And we will send our engineers to guild installation according to your requirement.
