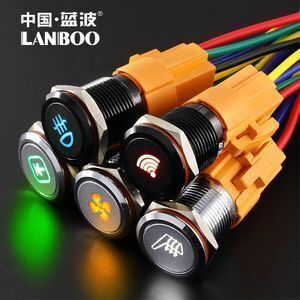

Metal Push Button Switch LANBOO Customize Metal Push Button Switch High Current High Reliability and Long Life
- 1.20 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Switch Rating: | 3A / 250VAC -- 15A/250VAC; | Max. Current: | 3A~15A; |
| LED Voltage: | 2V/3V/6V/12V/24V/36V/110V/220V/250V; | Operation type: | Momentary or Latching; |
| Emitting Color: | Red,Green, Yellow, Blue, White ,Orange, Purple, Pink; | Packaging Detail: | Blister Package+ Foam+Color box Or according to your requirements; |
| Mounting hole diameter: | 16mm~40mm; | Emitting Type: | Ring LED/Symbol LED/Dot LED; |
| Max. Voltage: | 250VAC; | Brand Name: | LANBOO; |
| Protection Level: | IP67/ IK10; | Model Number: | LB Customize Push button switch; |
| Head shape: | Flat head; | Crust material: | Stainless Steel/Copper plating/Aluminum oxide; |
| Port: | Ningbo / Shanghai Port; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Place of Origin: | Zhejiang China; | Supply Ability: | 10000 Piece/Pieces per Day; |
| Contact configuration: | 1NO1NC / 2NO2NC; |
Product Description
1.3A-15A metal push button switch;
2.Optional connector,To ensure contact performance,reduce waste of labor;
3.With concave design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP67;
6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7.1NO1NC/2NO2NC function;
8.It has applied of many patents ,CQC,CCC,CE ,ROHS,ISO9001,approved;
Technology Parameter
| Model Description | |
| Model NO. | LB-16A customize metal push button switch |
| Mounting diameter | 16MM |
| Head shape | Flat Head |
| Switch Combination | 1NO1NC / 2NO2NC |
| Operation type | Momentary/ latching |
| Illuminating type | Annular,power symbol,dot |
| Illuminating color | red,green,blue,yellow,orange,white,purple,pink |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless steel,aluminum oxide,copper plating |
+
|
The Others Parameters
|
|||
|
Project
|
Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.8mm,Total:3.1mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 4N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤11mm. customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/Aluminum Oxide/Copper plate / According to the request |
| Protection Levels | IK10 | Diffuser | Environmental protection PC |
| Electrical Life |
Rated:2A250VAC- 100,000 times |
Nut | Nickel brass |
| Rated:5A250VAC-50,000 times | Base Seat | PA66 | |
| Rated:8A250VAC-20,000 times | Bottom Seat | ||
| Reated:10A250VAC- 20,000 times | Insert seat | ||
| Mechanical Life | Momentary-500,000 times | Pins | H65 / H65 Silver Plated / Gold |
| Latching-300,000 times | Contact | Environment-friendly Silver Contact | |
| Waterproof | IP65/IP67 | Spring | Imported steel wire |
+
|
Switch Rated Load
|
|||||
| Project | Parameter | ||||
| Reated Insulation Voltage | AC250V | ||||
| Fusing Current | 5A | ||||
| Rated Voltage | DC12V | DC24V | AC110V | AC250V | |
| Rated Current | Nonreactive Load | 3 | 2 | 2 | 3 |
| Inductive Load | 1 | 0.5 | 0.5 | 0.5 | |
+
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
