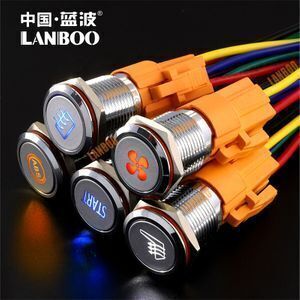

symbol can be customized 16 , 19mm , 22mm1NO1NC 2NO2NC dot illuminated power symbol push button switch for car , yacht

Click here to contact

Product details

Supply Ability:	10000 Piece/Pieces per Day;	Max. Voltage:	250VAC;
Max. Current:	3A~15A;	Switch Rating:	3A / 250VAC;
Place of Origin:	Zhejiang China;	Emitting Type:	Ring LED/Symbol LED/Dot LED;
Emitting Color:	Red,Green, Yellow, Blue, White ,Orange, Purple, Pink;	Head shape:	Flat head;
Crust material:	Stainless Steel/Copper plating/Aluminum oxide;	Operation type:	Momentary or Latching;
Mounting hole diameter:	16mm~40mm;	Protection Level:	IP67/ IK10;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	LED Voltage:	2V/3V/6V/12V/24V/36V/110V/220V/250V;
Model Number:	LB16A Push button switch;	Packaging Detail:	Blister Package+ Foam+Color box Or According to your request;
Contact configuration:	1NO1NC-Normal Open/Normal Close;	Port:	Ningbo / Shanghai;
Brand Name:	LANBOO;

Product Description

1.3A metal push button switch;

2.Optional connector,To ensure contact performance,reduce waste of labor;

3.With concave design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP67;

6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;

7.1NO1NC function;

8.It has applied of many patents ,CCC,CE ,ISO9001,approved;

9.16MM DPST ON OFF IP67 IK10 momentary stainless steel push button;

Technology Parameter

Model Description
Model NO.	LB-16A metal push button switch
Mounting diameter	16MM
Head shape	Flat Head
Switch Combination	1NO1NC / 2NO2NC
Operation type	Momentary/ latching
Illuminating type	Annular,power symbol,dot
Illuminating color	red,green,blue,yellow,orange,white,purple,pink
Lamp voltage	2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material	Stainless steel,aluminum oxide,copper plating

The Others Parameters
Project	Parameter	Project	Parameter
Contact type	Slow moving single contact	Operation Schedule	Connected:1.8mm,Total:3.1mm
Contact Resistance	≤50mΩ	Actuating Force	about 4N
Insulation Resistance	≥1000mΩ	Mounting panel thickness	≤11mm. customised the others
Dielectric Strength	1000VAC min	Nut torque	5~14N.m
Ambient Temperature	-30℃~+80℃	Outshell/Press Key	Stainless Steel/Aluminum Oxide/Copper plate / According to the request
Protection Levels	IK10	Diffuser	Environmental protection PC
Electrical Life	Rated:2A250VAC- 100,000 times	Nut	Nickel brass
	Rated:5A250VAC-50,000 times	Base Seat	PA66
	Rated:8A250VAC-20,000 times	Bottom Seat
	Reated:10A250VAC- 20,000 times	Insert seat
Mechanical Life	Momentary-500,000 times	Pins	H65 / H65 Silver Plated / Gold
Mechanical Life	Latching-300,000 times	Contact	Environment-friendly Silver Contact
Waterproof	IP65/IP67	Spring	Imported steel wire

Led Lamp Parameters
Project	Parameter
Led type	High Brightness LED lamp,cool
Luminous color	Red,Green,Blue,Yellow,Orange,White,Purple,Pink
Rated Voltage	AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current	≤20mA
Reference Life	40,000hours
