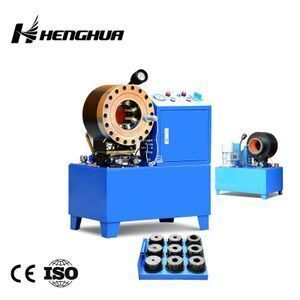

Core Patent Hot DX68 DX69 Factory Outlet 2''(6-51mm) 220V 12 Sets Free Dies Hydraulic Hose Crimping Pressing Machine

Product details
Key Selling Points:High-accuracy;Marketing Type:New Product 2019;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Rated pressure:31.5MPA;
Certification:CE ISO9001;Package Preview:;
Condition:New;Dimension(L*W*H):670(L)*490(W)*780(H)mm;
Weight:260kg,250kg;Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Dies size:15,18,23,26,31,36,41,47,55,61;Power(W):3KW/4KW;
Machinery Test Report:Provided;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Brand Name:HENGHUA;After Warranty Service:Online support;
Power (kW):3KW/4KW;Warranty of core components:1 Year;
Oil pump displacement:5ml/rad (380V); 2.5ml/rad (220V);Crimping force:449T;
Supply Ability:3000 Set/Sets per Month;Place of Origin:Tianjin China;
Overall dimensions:670(L)*490(W)*780(H)mm;Packaging Detail:Wooden case or as your required.;
Warranty:3 Years;Crimping range:6-51mm;
Voltage:220V/380V;Scale accuracy:0.02mm;
Local Service Location:none;Port:tianjin;
Showroom Location:none;Machine Type:Hose Crimping Machine;
Video outgoing-inspection:Provided;

hose crimping machine
Model DX68 DX76 DX102 DX150
Crimping range

6~51mm(1/4" ~2")

6~76mm( 1/4~3" )

6~102m( 1/4~4" )

6-150mm(1/4~6")

Max crimping Force 449T 500T 1400T 2500T
Rated Pressure 31.5MPa 50Mpa 31.5Mpa 31.5Mpa
Weight 250kg 300kg 520kg 900kg
Mold Quantity 10 sets 13Sets 16Sets 17Sets
Power 3KW/4KW  4KW 4KW/5.5KW/7.5KW 4KW/5.5KW/7.5KW
Voltage 220V/380V 240V / 380V 380V or customized 380V or customized
Scale accuracy 0.01mm 0.01mm 0.01mm 0.01mm
Overall dimensions 670*490*780mm 730*470*930mm 900*790*1070mm 1030*630* 1160mm


Brief Introduction
Model DX68 pipe locking machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Main Technical Feature
Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T
Scale accuracy: 0.02mm Rated pressure: 31.5 MPa
Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm





Installation and Operation


1.Add sufficiently 79 liters of Great Wall brand 46# anti-abrasion hydraulic oil. If the room tem- perature is lower than 10ºC, 10% transformer oil is need to add.
Connect the electric source well as per the machine requirements, to make the direction of the motor rotation to be consistent with the rotation direction marking, and grounding protection shall be done.

2.Regulating the scale
The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead con- nection is reliable.

3.The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciprocating move- ment, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.

4.Pressure regulation
The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder (see figure), when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).

5.Operation
Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base. Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements. Because the manufactures of the pipe sleeve are different, so, specific dimension, material, hardness etc are certainly not the same. These factors would result different influences on the pipe locking result, therefore, the data in the table is only for reference, the detailed data take the pressure test as the basis.





Packaging & Delivery



FAQ

1. What level of service do you provide ?

*Your inquiry will be replied in 24 hours.

*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .

* We offer free spare parts and service within 14 month warranty period.

* Technology Support by providing operation training videos .

* Professional after-sales service team.

* Give reasonable offers with the best quality.

2. What is our advantages?

* Competitive price: We can meet your budget and best-selling business very well.

* OEM Accepted: We can produce customized design.

* Good Service: We treat clients as friends and provide problem solving anytime you need.

* Good Quality: We have strict quality control system. Good reputation in the market.

* Fast & Delivery: We have big discount from forwarder (Long-term Contract).

* Door To Door Service.

3.  Can you customize the machine for the customer?

Yes. We can, we also provide OEM for customers; If you need customized services, please contact us

4.  What is the MOQ?

We usually provide 1 set for customers to test.

Notices
1.When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.
2.Prevent tool and other foreign matter from entering the locking head.
3.After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.
4.When working, the hand should not stretch into the locking head.
5.The power supply must be switched off when maintenance is done.

Maintenance and Care
Maintenance
The hydraulic oil in the oil tank should be frequently checked, if oil amount is found to be insuf- ficient, the oil shall be timely supplemented. If the oil liquid is polluted, it shall be filtered or replaced.
The locking head shall keep internal cleanliness. Avoid the foreign matters during processing to enter into the locking head oil cylinder via the mould to affect the normal use. Wipe out the foreign matters, which are brought by the mould body in time when buckling the joint.
Frequently fill suitable grease into the mould body for lubrication.


Promise
We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.

The Packing List
1.The high pressure locking tube machine in model DX 68 one set
2.Mold (Total 10 Sets)Φ6 1 set
Φ10 1 set
Φ13 1 set
Φ16 1 set
Φ19 1 set
Φ22 1 set
Φ25 1 set
Φ32 1 set
Φ38 1set
Φ51 1set
