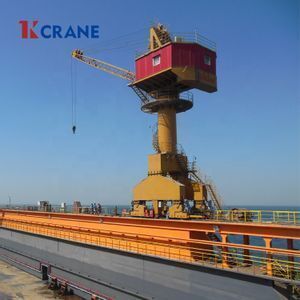

Mobile Harbour Shipyard Container Port Jib Luffing Dock Portal Crane 80t

Supplier: Xinxiang Kehao Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Erica Zhang
Price: $180000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Rated Lifting Moment:	50KN~5000KN;
Local Service Location:	Bangladesh;	Applicable Industries:	Lifting Industry;
Feature:	Portal Crane;	Basal spur:	8~22;
Type:	four-bar portal boom or Single girder;	Brand Name:	KCRANE;
Place of Origin:	Henan China;	Structure:	box type boom or frame type;
Warranty of core components:	1 Year;	Span:	22m;
Standard:	GB/T 24001-2004;	Video outgoing-inspection:	Provided;
After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;	Power Supply:	3-Phase;
Showroom Location:	none;	Working duty:	A7;
Payment Terms:	L/C,T/T;	Machinery Test Report:	Provided;
Certification:	CE, ISO 9001, CCS, BV, ABS;	Packaging Detail:	Mobile Harbour Shipyard Container Port Jib Luffing Dock Portal Crane 80t 1. Plastic cloth and Carton for Power machinery and important parts 2. Main structure Sections in Container ( about 12 sets to 25 sets 40 ft container ) Wooden Carton, Plastic cloth, Container;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Gear;	Application:	shipyard, vessel, Outdoor,Warehouse etc;
Gauge:	6~22;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Rated Loading Capacity:	5 tons~500 tons;	Package Preview:	;
Supply Ability:	50 Set/Sets per Year;	Max. Lifting Height:	50m;
Product name:	Harbour Shipyard Container Port Jib Luffing Dock Portal Crane 80t;	Port:	Qingdao/Shanghai;
Industry working voltage:	Local (User);	Marketing Type:	Ordinary Product;
Condition:	New;

Harbour Shipyard Container Port Jib Luffing Dock Portal Crane

Product Description

Portal crane has been widely used at port, yard, station,shipyard, stack and so on. In order to quicken the turnover of the vehicles, loading and unloading, transshipment of goods on the shipping and car needs high efficiency. With the advantage of advanced capability, high working efficiency, compact frame, calm movement, comfortable operation, safety and reliability, convenience maintenance, nice appearance and so on, it can make good use of the limited space of the port, yard and other places, and is available for empty and full loaded work of shipping and can meet requirement of surface car transportation. And especially to general use port, it is a kind of hoisting machine with small investment and swiftness benefit for loading and unloading front apron container, sundries and bulk cargo. Including Four-bar Linkage Portal Crane and Single-arm Portal Crane.

Product Component

Technical Parameter

Single link portal crane parameters table
Product specification			MQ0518	MQ1030	MQ1625	MQ2519	MQ2525	MQ4019
Working class			A8	A8	A8	A8	A8	A8
Load capacity (grab/hook)			5	10	16	25	25	40
Luffing	Max (grab/hook)	m	18	30	25	19	25	19
Luffing	Min	m	8	8.5	10	10	9	9
Lifting height	Rail(grab/hook)	m	12	25	16	16	16	18/25
Lifting height	Under rail	m	13.5	15	15	15	12	15
Working speed	Lifting(grab/hook)	m/min	40	60	35	23	28.4	17.3
	Luffing	m/min	30	50	21	21	15.5	15.5
	Rotation	Rpm	1.32	1.5	1.2	1.2	1.03	1.03
	Traveling	m/min	25	25	16.5	16.5	18.2	18.2
Max wheel pressure		KN	190	230	200	200	230	230
Gauge		m	7.5	10.5	10.5	10.5	10.5	10.5
Basal spur		m	7.5	10.5	10.5	10.5	10.5	10.5
Recommended track			43kg	QU70	QU70	QU70	QU70	QU70
Installed capacity		Kw				216.8	262	262
Power supply			3-phase AC 50HZ 380V

Products Show

Packaging & Shipping

Application Case

Our Services

Pre-Sales Service After-Sales Service

* Inquiry and consulting support. * One year warranty.

* Drawings support. * Engineers available overseas.

* Technical support. * Installation training.

* Commissioning. * Using training.

* View our Factory. * Maintenance training.

* Two years spare parts for maintenance

Buying Guides

Please tell us your specification according the above different drawing, if difficult to you, kindly see the below the basic parameters or tell us your questions. We will choose a suitable products for you.

Basic Parameters: What should I do if I want to buy a protal crane?

Answer: please try to finish the main specification as below:

1). Max load capacity: ---ton

2). Max working /Min radius: ---m

3). Lifting height above rail/below rail: ---m

4). Rail distance or guage: ---m

5). Travelling distance: ---m

6). Voltage: ---380V/50HZ/3P or others
