99.99% HEPA ceiling fan filter unit FFU for modular cleanroom

Product details
EN1822:h11/h12/h13/h14;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
gasket:one side gasket;Construction:Box Filter;
Efficiency:H11/H12/H13/H14;Package Preview:;
type:ffu;Packaging Detail:99.99% HEPA ceiling fan filter unit ffu for modular cleanroom packed in carton box and pallet;
Place of Origin:Henan China;use:modular cleanroom;
Dimension(L*W*H):575mm*1175mm*320mm;sealant:polyurethane;
Port:Shanghai/Qingdao/Tianjin;Brand Name:BF;
After-sales Service Provided:Online support;Condition:New;
Payment Terms:L/C,T/T,Western Union;filter frame:aluminum/galvanized/SS;
test:to EN1822 standard;Filter Type:panel hepa filter;
Weight:31kg;Porosity:0.3 micron;
Warranty:1 Year;Supply Ability:1000 Set/Sets per Month;
faceguard:glass fiber/plastic coated metal;Certification:ISO9001;

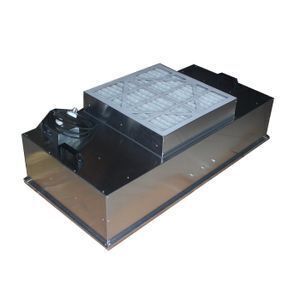

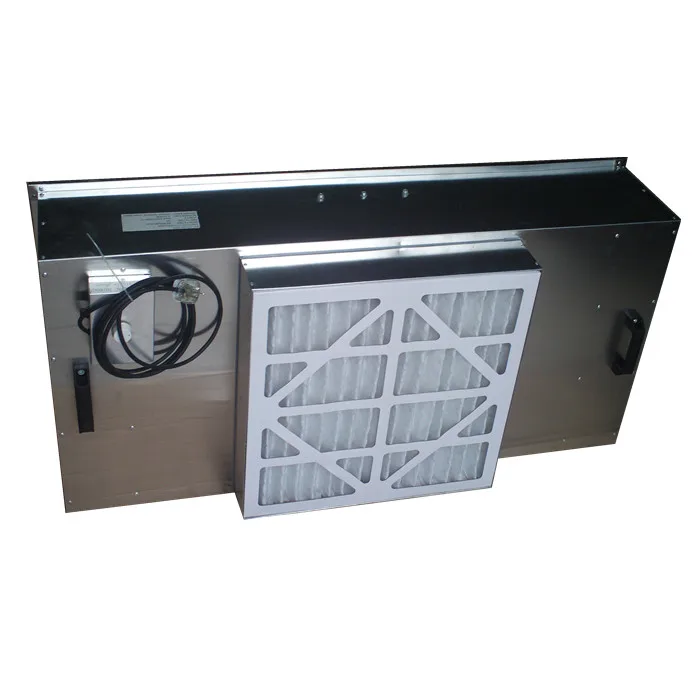

99.99% HEPA ceiling fan filter unit FFU for clean air

Product Description



 FFU Fan Filter Unit which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.

  Application: FFU's are commonly used in the construction of Class 1 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc…

  FFU Fan Filter Unit Specification and technical parameters

ModelFFU-1175FFU-1228FFU-1178
  FFU-578


FFU-618

Dimensionmm
575*1175*320
616*1228*320578*1178*320578*578*320618*618*320


air filter sizemm575*1170*69610*1220*69570*1170*69     570*570*69610*610*69
air Volumem³/h700-1800700-1900        700-1800   350-900350-950
External static pressurePa989898 9898
Main body

-
Standardcold rolled steel plate with powder coated
OptionStainless steel
Galvanized steel
Aluminum coated zinc plate
SUPER GALUM
Power supplyStandardV/Hz220V 50Hz
OptionV/HzPls contact us if you have any other requirement about the power.
Output poewr140-150

Filter
Efficiency-HEPA Over 99.99% @ 0.3um
-ULPA Over 99.9995% @ 0.1um
Frame-Aluminum
Shockm/s2≤0.4≤1.1≤0.4
NoiseDb(a)≤55≤55≤55
Option-Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter
 Special size can be customized.

   FFU Fan Filter Unit Features :Nice appearance , human centered design--Adding stainless handle, easy installation and delivery, and perpendicular design.High performance and low noise fans--Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spreads evenly, stable air velocity, low consumption, low running cost, service life can reach to longer than 80 thousand hours.Light, thin shape--Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available. Flexible, diversified design--Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.Premium Current-averaging design of the inside--Ensures deviation of the blowing side lower than ±10%.







Packaging & Shipping







Company Information







FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.


Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
