China Supply FFU laminar air flow hood

Product details
Product name:China Supply FFU laminar air flow hood;Packaging Detail:carton ;
Single package size:126X43X66 cm;Selling Units:Single item;
Certification:ISO9001;Model Number:FFU;
Type:Clean Room Booth;Package Preview:;
Usage:High Cleanliness;Delivery Detail:12 days after payment;
Power:220V/50Hz;Application:100 Lab / Laboratory Clean Room;
After-sales Service Provided:Overseas service center available;Material:Stailess Steel SUS304/201/Q195 /galvanized Sheet;
Single gross weight:34.99 KG;Brand Name:Beifang;
Place of Origin:Henan China;

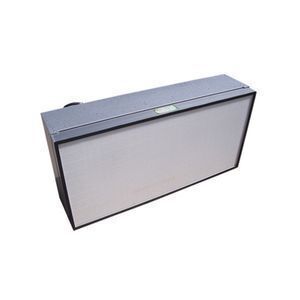

China Supply FFU laminar air flow hood



Product Overviews



Product Description

China Supply FFU laminar air flow hood

FFU is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.



Superior Advantages
1. The construction period can be shortened;
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;
3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;
4. Bay method or through the wall method is possible by the arrangement of layout of FFU;
5. The velocity of the air flow can be set at each area;
6. Flexible increase or change of the clean room is possible by the arrangement of FFU.



Market prospect
1. To reduce running cost by saving energy;
2. To reduce construction cost and term by thin, light and compact structure;
3. To reduce initial cost by total design of clean room including noise spec. etc;
4. We development FFU units basing upon the above concept to meet all the requirements for constructing, operating and maintaining clean rooms.

 Applicaton



Technical Parameters

Model

FFU901B-S

FFU901C-S

FFU901B-S

FFU901C-S

Parameters

FFU-901B-AZ

FFU-901C-AZ

FFU-901B-AZ

FFU-901C-AZ

Rated Flow (m³/h)

900

Noise A (dB)

≤54

HEPA Filter Efficiency

≥99.99% @ ≥0.3μm

Power Supply

AC220V±10%, 1Φ, 50HZ±2HZ

Input Power (VA)

180

Dimensions L*W*H (mm)

1220-610-320

1170-570-320

1220-610-320

1170-570-320

HEPA Filter Size (mm)

1220-610-69

1170-570-69

1220-610-69

1170-570-69

Pre Filter Size (mm)

450-400-25

N/A

Weight (kg)

32

31

32

31

Note:The above for reference,odd sizes avaliable.



Company Information

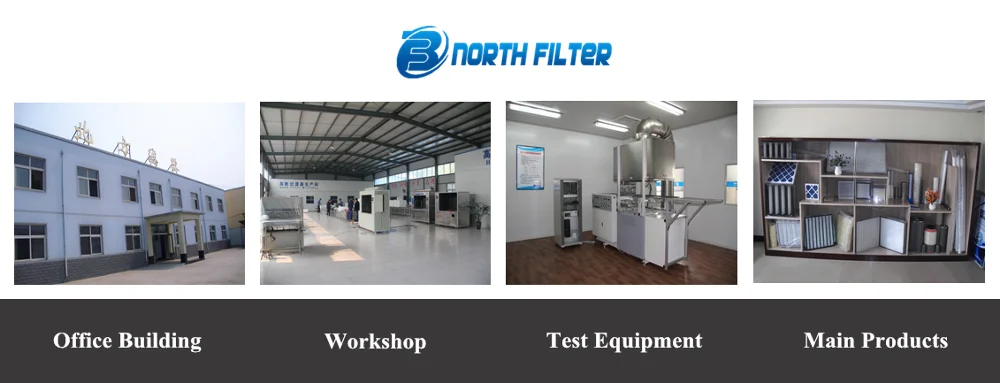

Xinxiang North Filter Co., Ltd. is a high-tech enterprise specializing in developing and manufacturing various filters and purification equipments.

The company's leading products are divided into four series of products ,namely, air filters, water filters, oil filters, water-oil separation devices, etc.

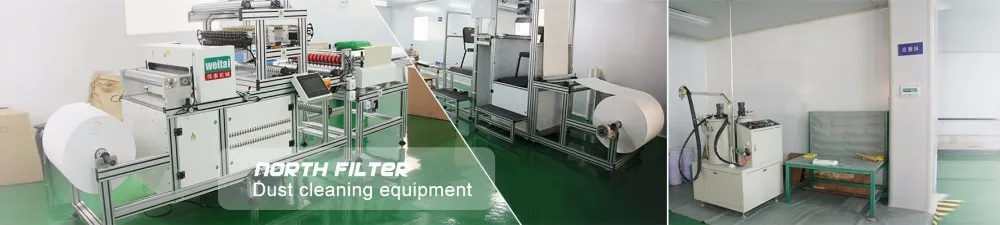

Our company has many kinds of advanced production and testing equipments, HEPA filter production lines and a 500-square-meter cleaning room for thousands of grade filtration.

Advantages
Our company regards “reasonable prices, efficient production time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits.



Certifications

Now our company has attained ISO9001 Quality Management Certification, BV Certification etc.







Clients

Our products are already exported to Southeast Asia, North America, Middle East, Australia and Turkey 20 other countries and regions. We have always focused on research, development, innovation and put the product quality and customer service in the first place.



FAQ

Q1. Are you a manufacturer?
Yes, we are a high-tech enterprise which with 20 years experience in developing and manufacturing various filters and purification equipments.

Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% rigorous test before delivery.
