• Supplier: Xinxiang North Filter Co., Ltd.
  • Region: Henan, China
  • Contact: Ms. North FilterJob Title:Sales Manager
  • Price: $215.00-$225.00 /Piece
  • Min. Order: 1 Piece (MOQ)
Low Noise HEPA Fan Filter Unit for Clean Room details
Application:Clean Room;Place of Origin:Henan China;
Construction:Panel Filter;Warranty:Within 3 Months,1 Year;
Certification:ISO9001, SGS;Package Preview:;
HS Code:8421999090;Keyword1:Fan Filter Unit;
Condition:New;Machinery Test Report:Provided;
Input Power:180V;Dimension(L*W*H):1170*570*320;
Porosity:0.3um;After-sales Service Provided:Online support;
Showroom Location:none;Efficiency:99.99%;
Packaging Detail:Carton box and pallet for Low Noise HEPA Fan Filter Unit for Clean Room;Noise:≤54dB;
Keyword2:HEPA Fan Filter Unit;After Warranty Service:Online support;
Brand Name:BF;Packaging:Carton Box and Pallet;
Port:Shanghai, Tianjin etc.;Rated Flow:900m3/h;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Video outgoing-inspection:Provided;Local Service Location:none;
Weight:Standard Weight;Core Components:Motor;
Filter Efficiency:99.99%;Supply Ability:1000 Piece/Pieces per Month Low Noise HEPA Fan Filter Unit for Clean Room;
Warranty of core components:1 Year;Marketing Type:Hot Product 2019;

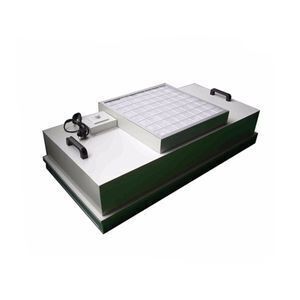

Low Noise HEPA Fan Filter Unit for Clean Room


Product Description


1. Low vibration, low noise
2. Air distribution evenly
3. Automatic wind speed or multi-speed adjustment
4. Wind box and filter are divided and easy to replace
5. The air box can be made of stainless steel, galvanized sheet or aluminum plate, can meet different needs of working environment.



Fan filter unit (FFU) are widely used in clean room, clean operating station, clean production line, assembled clean room and partial 100 level occasions. It can provide high quality clean air to different size and different cleanliness level's clean room and microenvironment.
In new clean room and the renovation of clean workshop, it can improve the clean level of partial area, greatly reduce the cost of construction or renovation. It's a ideal component of partial high quality clean environment provision. It's convenient to install and maintain, even air supply and so on.

Model FFU901B-S FFU901C-S FFU901B-S FFU901C-S
Parameters FFU-901B-AZ FFU-901C-AZ FFU-901B-AZ FFU-901C-AZ
Rated Flow (m³/h) 900
Noise A (dB) ≤54
HEPA Filter Efficiency ≥99.99% @ ≥0.3μm
Power Supply AC220V±10%, 1Φ, 50HZ±2HZ
Input Power (VA) 180
Dimensions L*W*H (mm) 1220-610-320 1170-570-320 1220-610-320 1170-570-320
HEPA Filter Size (mm) 1220-610-69 1170-570-69 1220-610-69 1170-570-69
Pre Filter Size (mm) 450-400-25 N/A
Weight (kg) 32 31 32 31


Detailed Images




Quality Control

1. All filter components are subjected to a factory in-coming Quality Control checking and testing procedure.
2. Filter media are controlled by the Quality Control Laboratory to ensure all design parameters and test criteria meet specifications and performance results.
3. Throughout production & assembly, on line and laboratory controls & tests are made to ensure every perfect filter.
4. Representative filter from each batch type and production run are subjected to a complete test flow evaluation to determine efficiency, pressure drop and dust holding capacity.
5. To ensure that ex-factory products are maintained in perfect condition and are not damaged during transport to final destination.


Packaging & Shipping

1. Package Requirements: Carton box and pallets.

2. Delivery Time: 7-15 working days after advanced payment.
3. Ways of Transportation: By International express / air / sea / railway.
4. Loading Port: Shanghai Port, Tianjin Port, Qingdao Port or other Chinese ports.


About Us

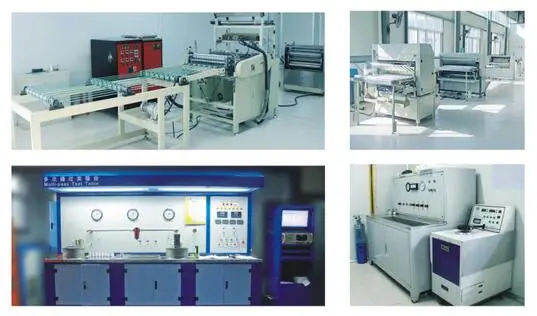

Xinxiang North Filter Co., Ltd. is a high-tech enterprise specializing in developing and manufacturing various filters and purification equipments. The company's leading products are divided into four series of products ,namely, air filters, water filters, oil filters, water-oil separation devices, etc. Our company has many kinds of advanced production and testing equipments, HEPA filter production lines and a 500-square-meter cleaning room for thousands of grade filtration.

Currently, our products are already exported to Southeast Asia, North America, Middle East, Australia and Turkey 20 other countries and regions. We have always focused on research, development, innovation and put the product quality and customer service in the first place. Now our company has attained ISO 9001 Quality Management Certification, SGS Certification and BV Certification etc.

Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. Welcome potential buyers to contact us and visit our factory.



Why Choose Us

1. Customized is also available.

2. Good quality control procedure and advanced production line.

3. Professional experience on filters.

4. Good quality and long service life but competitive price.



1. Are you a manufacturer?

Yes, we are a high-tech enterprise which with 17 years experience in developing and manufacturing various filters and purification equipments.

2. What information should I provide if I want to order your filters?

Please provide us your requirements for dimension, media, frame material, efficiency and application etc, so that we can quote the price as soon as possible.

3. What’s your MOQ?

Our MOQ is 10 pieces for each model.

4. Can you provide free samples?

Yes, we can provide free samples with the amount below 200 RMB.

5. Do you have the products in stock?

For water filters, we have stock of common models. But for air filters, we will make them according to different requirements of clients.

6. What’s your lead time?

Generally our lead time is about 5-7 days after receiving your advanced payment, of course it’s also depend on your order quantity.

7. What payment method can you accept?

We accept T/T and Western Union. 30% deposit, 70% balance to be paid before shipment.

8. Do you have any distributor in other countries?

No, we don’t have distributor in other countries and regions. You can purchase filters from us directly.



Application:Clean Room;Place of Origin:Henan China;Construction:Panel Filter;Warranty:Within 3 Months,1 Year;Certification:ISO9001, SGS;Package Previe
above is detail introduction of Low Noise HEPA Fan Filter Unit for Clean Room, include price, model, picture and supplier of Low Noise HEPA Fan Filter Unit for Clean Room.
