50mm Plastic Pall ring

Supplier: Jiangxi Pingxiang Dier Chemical Packing Co., Ltd.
Region: Jiangxi, China
Contact: Ms Flora Liu
Price: $300.00 /cubic meter
Min. Order: 1 cubic meter

Click here to contact

Product details

Certificate:	ISO9001:2008;	Plastic type:	PP,PVC,CPVC.PE,PVDF,PFA,etc;
Usage:	Thermal &Heat transfer media;	Port:	Nngbo /Sanghai/Shenzhen;
Brand Name:	Dier;	Supply Ability:	400 Cubic Meter/Cubic Meters per Month;
Packaging Detail:	Jumbo plastic bags or customized;	Payment Terms:	T/T;
Merits:	Lower pressure drop,big flux,high efficiency,etc;	Place of Origin:	Jiangxi China;

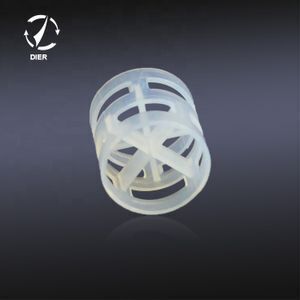

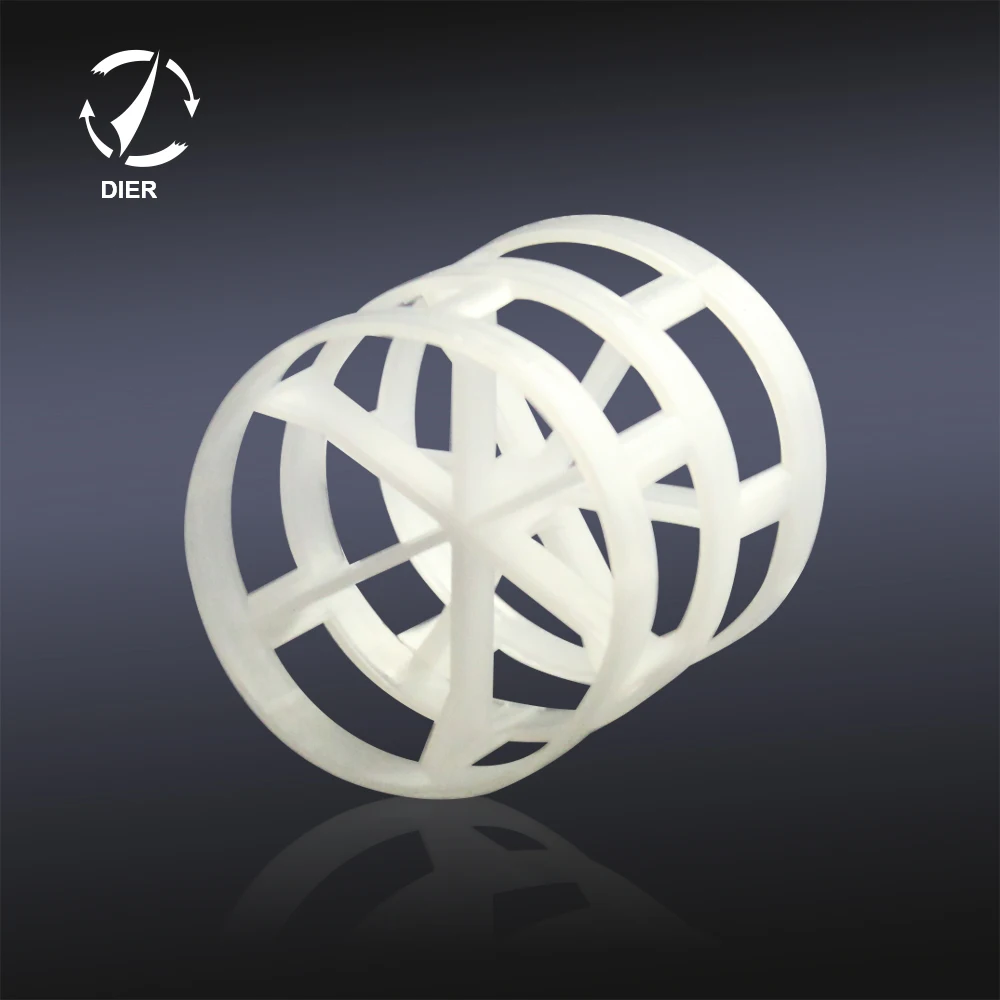

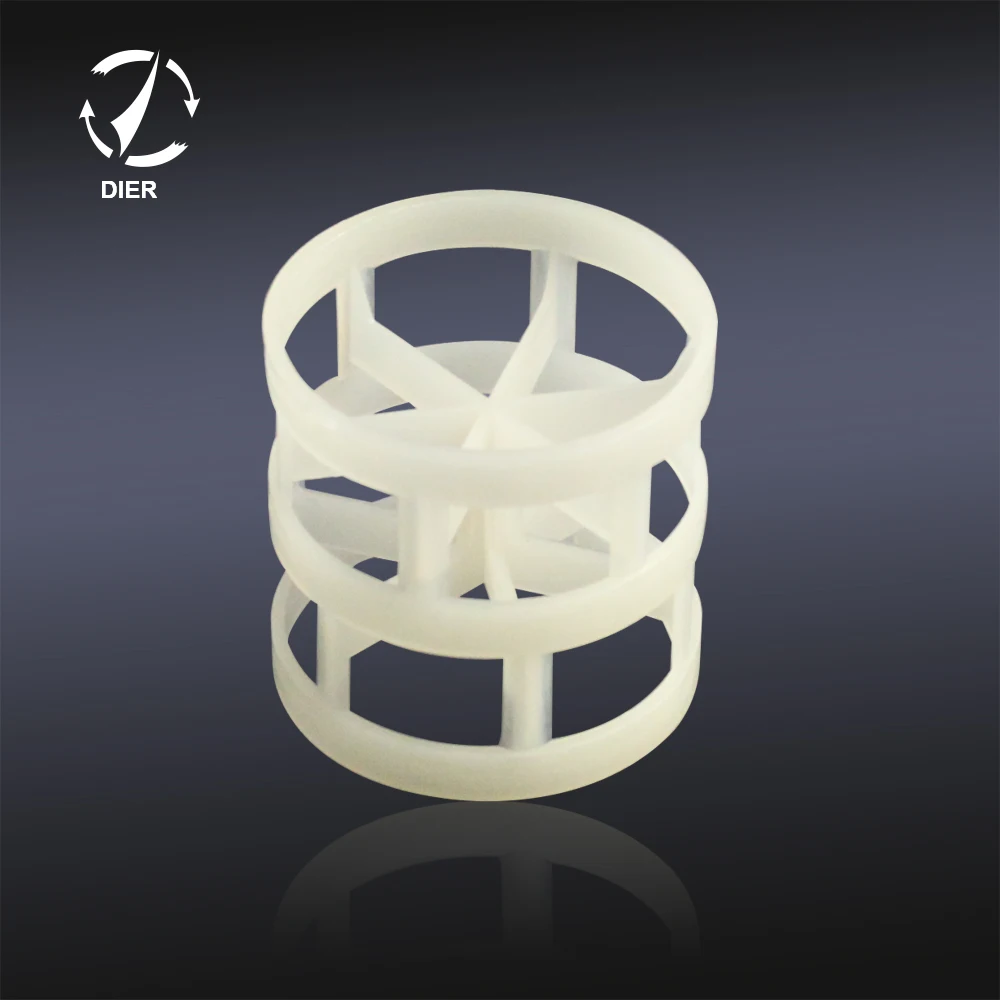

50mm Plastic Pall ring

Pall ring ,the structure improve distribution of gas-liquid and its efficiency can be improved above 50%,and only half of pressure drop compared with Raschig ring

Features: Lower pressure drop,big flux,high efficiency,

Application: It can be applied to various of device of isolation,absorption,desorption,common decompression such as Toluene separation,Ethylbenzene separation,Isooctane separation,and desulfurization system and so on.

Perameters Features of Plastic Pall Ring

Model	Size DHδ/mm	No. Per Volume n/m3	Specific Area m2/m3	Void Volume %	Drying Packing Factor m-1
Dg16	16X16X1.0	180000	188	91.1	275
Dg25	25X25X1.2	49000	175	90.0	239
Dg38	38X38X1.4	13600	155	89.0	220
Dg50	50X50X1.5	6300	93	90.0	127
Dg76	76X76X2.6	1830	73.2	92.0	94
