Tianjin Cast Iron steam bellow seal water control valve globe valve price pn16

Product details
Power:Manual;Body material:Cast Iron, Ductile Iron;
Certificate:ISO9001:2008 CE;Media:Water Oil and Gas;
Packaging Detail:Plywood Case;Product name:globe valve;
Structure:Stop;Brand Name:IMGV;
Port:TIANJIN;Customized support:OEM,ODM;
Place of Origin:Tianjin China;Temperature of Media:Normal Temperature;
Standard:BS5152, ANSI B16.10;Connection:Flange Ends;
Application:General;Supply Ability:5000 Piece/Pieces per Week;
Model Number:W-006;Standard or Nonstandard:Standard;
Size:DN50-600;Payment Terms:L/C,D/A,D/P,T/T;
Color:Customer's Request;Port Size:50mm-600mm;
Type:2-way,Globe Valves;

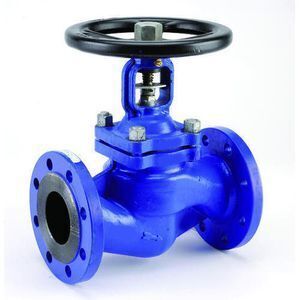

Tianjin Cast Iron steam Globe Control Valve

Product Description

Size DN50—DN600

Nominal Pressure PN10/PN16

Working Temperature -10°C~120°C

Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc

Performance:

Nominal pressue (MPa) 1.0 1.6
Nominal diameter(mm) Shell 50-600 50-600
Test pressure Seal 1.5 2.4
(MPa) 1.1 1.76
Applicable temperature 150
Applicable medium Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.
Operating mode manual, worm gear, pneumatic, electric, etc.



Standard:

Design & Manufacture Flange Connection Face to Face Dimension Test&Inspection
MSS SP70 BS5152 BS5152

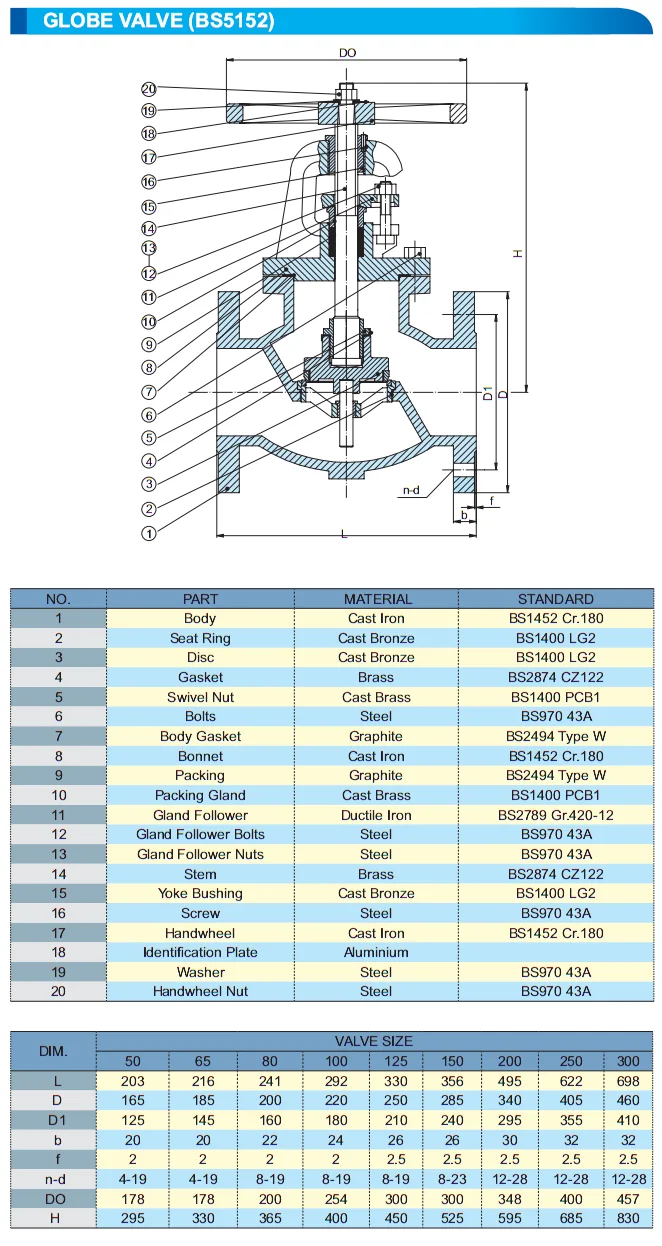

Material List:

NO. Part Name Material
1 Body Cast Iron/Ductile Iron
2 Body Seat Ring Cast Bronze
3 Reaction Member Brass
4 Disc Cast Bronze
5 Gasket Brass
6 Swivel Nut Cast Brass
7 Boll Steel
8 Body Gasket Graphite
9 Bonnet Cast Iron
10 Packing Graphite
11 Packing Gland Cast Brass
12 Gland Follower Ductile Iron
13 Gland Follower Bolts Steel
14 Gland Follower Nuts Steel
15 Stem Brass
16 Yoke Busing Cast Bronze
17 Screw Steel
18 Handwheel Cast Iron
19 Identification Steel
20 Handwheel nut Ductile Iron




production process



Packaging & Shipping



Company Information

 IMGV---Tianjin Union Valve Co., Ltd. is a professional valve manufacturer with high quality products and internal management standards. It has a high reputation in the foundry industry. Our company has a modern factory, advanced manufacturing processing and testing equipment, strong technical force.

We have More than 200 employees, more than 30 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE certification, our main products are concentric butterfly valve,eccentric butterfly valve, triple-eccentric butterfly valve, soft seat gate valve, ball valve, check valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East, Australia, North Africa, South Korea, Hong Kong,Taiwan and so on. Our company's purpose is: professional and technical support, perfect after-sales service!
We welcome you to contact us for more information and look forward to working with you!



chat now



FAQ

1. Q: Are you a manufacturer or trading company ?

A: we are valve manufacturer and factory ,and not trading company.

2. Q: Do you have agent or representative abroad?

A: We dont have agent abroad,please contact us to purchase valves

from TIANJIN UNION VALVE CO.,LTD. directly.

3. Q: What's your product range?

A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

4. Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes. The lead time depends on your quantity,

generally 30-35 days.

5. Q: Which countries do you export to ?

A: We export directly to vast majority of countries in the world.

6. Q: What certificates will you provide ?

A: We can provide CE/ ISO / WRAS

7. After-sales service
18 monthes year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service

8. Payment
T/T, L/C, OA, D/P, D/A

9.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea

10. Do you provide free sample?
Free sample is ok for us.

11. Do you accept custom design on size?
Yes, if the size is reasonable
