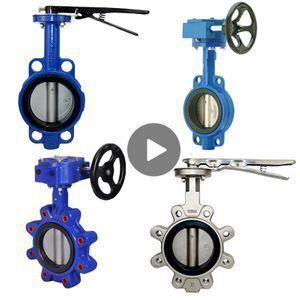

4 10 inch ptfe type Ductile Iron cast iron stainless steel wafer butterfly valve price list

Supplier: Tianjin Union Valve Co., Ltd.
Region: Tianjin, China
Contact: Mr Jack wang
Price: $9.80 / >=3 pieces
Min. Order: 3 pieces

Click here to contact

Product details

Certificate:	ISO9001:2008 CE;	Seal material:	force sealed;
Port Size:	Dn50-Dn1000 2"~24" 50mm-1000mm;	Power:	Manual;
Place of Origin:	Tianjin China,CN;TIA;	Color:	Customizable;
Type:	Butterfly Valves,wafer butterfly valve;	Connection:	wafer;
Temperature of Media:	Low Temperature;	Medium:	Handle Pneumatic motorized electric;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Standard or Nonstandard:	Standard;
Brand Name:	IMGV;	Body material:	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel;
Application:	General;	Product name:	wafer type butterfly valve;
Model Number:	W-002;	Media:	Water Oil and Gas;
Package Preview:	;	Supply Ability:	2000 Piece/Pieces per Month;
Packaging Detail:	Plywood Case electric pneumatic actuator butterfly valve keystone butterfly valve cad drawings titanium butterfly valve dn700 harga dn100 pn16 butterfly valve kitz stainless steel butterfly valve 7600 grooved lug butterfly valve for cement bare shaft butterfly valve aluminum butterfly valve 1 inch high plastic performance wafer type vanessa ductile iron butterfly valve dn100;	Structure:	BUTTERFLY;
Port:	Tianjin Shanghai Qingdao;

1. Factory price
2. Custom design
3. High quality
4. Small order accepted

Notice:
We are a factory have more than 30 years experience ,we believe we have absolute advantages at the price and quality ,if you interest ,please don't be hesitate to send

a inquiry .
Provide free samples

Product Description

Specifications:

Nominal pressue (MPa)		1.0	1.6
Nominal diameter(mm)		50-1000	50-1000
Test pressure	Shell	1.5	2.4
(MPa)	Seal	1.1	1.76
Applicable temperature		150
Applicable medium		Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, Alkalis, etc.
Operating mode		manual, worm gear, pneumatic, electric, etc.

Standards:

Design & Manufacture	Flange Connection	Face to Face Dimension	Test & Inspection
MSS SP-67 API609 EN593	DIN PN10/16/25; ANSI B 16.1 BS4504; ISO PN10/16 JIS B 2212/2213 BS 10 table D; BS 10 table E	API609 ISO5752 series 20 BS5155	API 598

Material:

No.	Part Name	Material
1	Body	Carbon Steel/Stainless Steel/Cast Iron/Ductile Iron/ Al-Bronze
2	Disc	Al-Bronze/CF8M/Ductile iron/WCB
3	Seat	EPDM/PEFE/Buna/NBR/Hypalon
4	Stem	Carbon Steel/Stainless Steel314/Stainless Steel316
5	Bushing	PTFE/Lubricating
6	O ring	EPDM/PEFE/Buna/NBR/Hypalon
7	Pin	SS316/SS416/SS304

Features:

1. Small in size, light in weight, easy installation and maintenance.

2. Simple and compact construction, quick 90 degree on-off operation.

3. Minimized operating torque, energy saving.

4. Flow curve tending to straight line, excellent regulation performance.

5. Long service life, standing the test of tens thousands opening/closing operations.

6. Wide selection of materials, applicable to various medium.

Application:

Chemicals, air, water, steam, oil, acids, salts ect

production process

Packaging & Shipping

Company Information

IMGV---Tianjin Union Valve Co., Ltd. is a professional valve manufacturer with high quality products and internal management standards. It has a high reputation in the foundry industry. Our company has a modern factory, advanced manufacturing processing and testing equipment, strong technical force.

We have More than 200 employees, more than 30 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE certification, our main products are concentric butterfly valve,eccentric butterfly valve, triple-eccentric butterfly valve, soft seat gate valve, ball valve, check valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East, Australia, North Africa, South Korea, Hong Kong,Taiwan and so on. Our company's purpose is: professional and technical support, perfect after-sales service!
We welcome you to contact us for more information and look forward to working with you!

chat now

FAQ

1. Q: Are you a manufacturer or trading company ?

A: we are valve manufacturer and factory ,and not trading company.We have 30 years of valve manufacturing experience

2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery/agaist the B/L copy. We'll show you the photos of the products and packages before you pay the balance.

3. Q: What's your product range?

A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint We can build the molds and fixtures.
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

4. Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes. The lead time depends on your quantity,generally 20-35 days.

5. Q: What certificates will you provide ?

A: We can provide CE/ ISO / WRAS

6. After-sales service

18 monthes year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service

7. Payment

T/T, L/C, OA, D/P, D/A

8.Transportation

Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea

9. Do you provide free sample?

Free sample is ok for us.

10.How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
