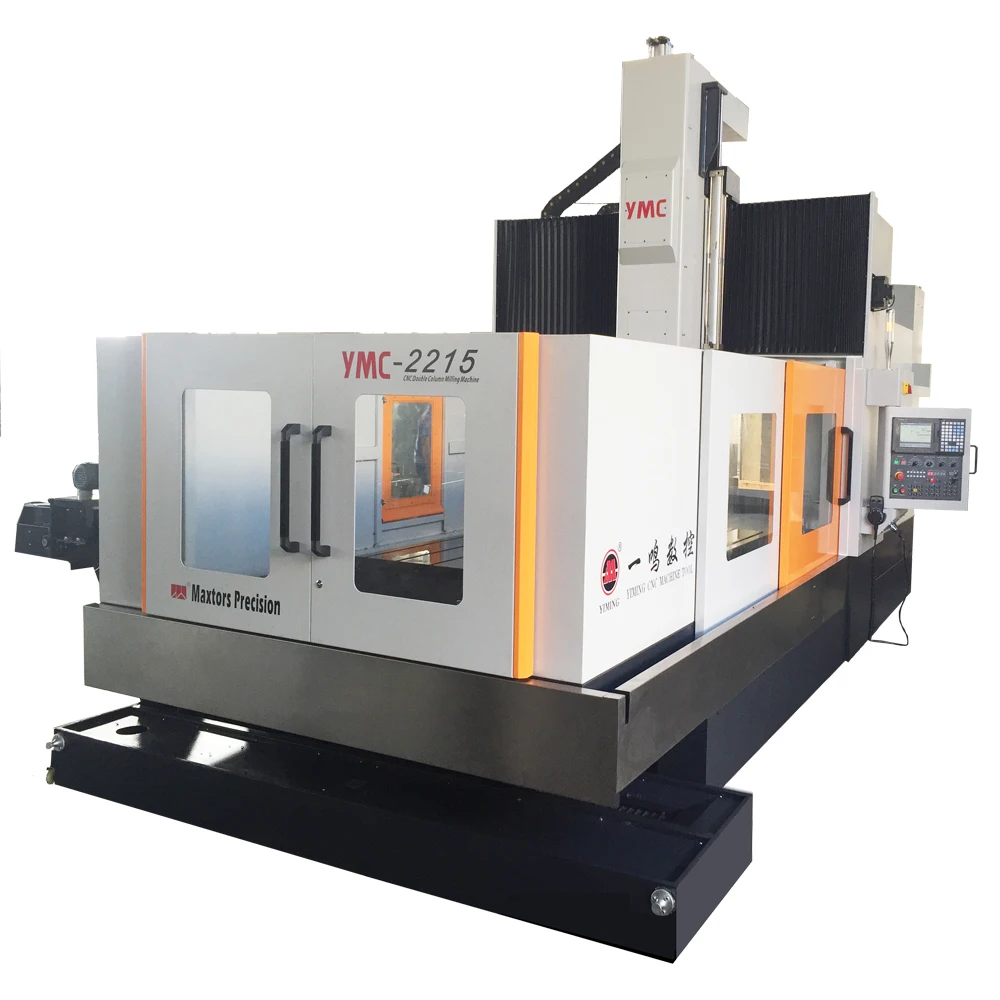

Maxtors Low Price Heavy duty CNC Milling Machine Center 3 Axis with LNC SYNTEC FANUC SIEMENS MITSUBISHI FAGOR Controller

Supplier: Ningbo Maxtors CNC Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Bing Wang
Price: $129980.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Double Column;	CNC or Not:	CNC;
Power:	15/18.5KW;	Voltage:	380V;
Positioning Accuracy (mm):	0.02;	Condition:	New;
Selling Units:	Single item;	Number of Axes:	3;
CNC Controller:	LNC/FANUC/SIEMENS;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support,Engineers available to service machinery overseas;
Repeatability (X/Y/Z) (mm):	0.01;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Spindle Taper:	BT50;	Certification:	CE ISO9001;
Weight:	18000kg;	Single gross weight:	1.0 KG;
Dimension(LWH):	583025503700mm;	Single package size:	1X1X1 cm;
Model Number:	YMC-2215;	Product name:	Heavy duty CNC Milling Machine;
Range of Spindle Speed(r.p.m):	0 - 6000;	Warranty:	1 Year;
Machining Capacity:	Medium Duty;	No. of Spindles:	Single;
Brand Name:	Maxtors;	Spindle Motor Power(kW):	15/18.5;
Packaging Detail:	Standard Packed by iron pallet.Others packing method are avaiable;	Key Selling Points:	High Productivity;
Other Name:	Gantry CNC Milling Machine Center;	Max. Table Load(kg):	5000;
Weight (KG):	18000;	Place of Origin:	Zhejiang China;
Spindle type:	Mechanical Spindle;

Maxtors Low Price Heavy duty CNC Milling Machine Center 3 Axis with LNC SYNTEC FANUC SIEMENS MITSUBISHI FAGOR Controller

Welcome Send us Inquiry

Item		Unit	YMC-2215
Travel	XYZ Travel	mm	2200/1500/800
Travel	Distance from Spindle Nose to Table	mm	150~950
Worktable	Table Size	mm	2200×1480
Worktable	Max.Loading on Table	KG	5000
Spindle	Spindle Taper		7/24 Taper No.50
	Spindle Speed	rpm	6000
	Spindle Motor Power	KW	15/18.5
Feeding	Rapid Feedrate(X/Y/Z)	m/min	15/15/7.5
Feeding	Cutting Feedrate(X/Y/Z)	m/min	6/6/6
ATC/Tool Magazine	ATC Type		Arm type
	No.of Tools		24T
	Tools Size(Full Tools)	mm	Φ80/260
	Max.Tool Weight	KG	8
Accuracy	Positioning Accuracy	mm	±0.008/300
Accuracy	Re-Positioning Accuracy	mm	±0.005/300
Others	Footprint	mm	6000×2580
	Machine Height	mm	3200
	G.W.	KG	18000
CNC Controller			SYNTEC/FANUC

CNC Controller: KND/GSK/LNC/SIEMENS/FANUC/Mitsubishi/Heidenhain (Optional)

>>Send Inquiry Get a Discount

1,Send Inquiry

2,In stock! Send out within 15 Working days, click "Start Order" and pay directly!

(Input quantity, choose your country, then you can see total price)

Please do write your Name, Address, Zip code and Phone number for delivery!

All Size Available (Others Size & Configuration will customize accordingly)

Item	Customize Model
X Travel(mm)	1200~20000
Y Travel(mm)	1000~12000
Z Travel(mm)	500~2000
Spindle	BT40/BT50/HSK-A63/HSK-A100
Spindle Speed(rpm)	2500~20000
CNC Controller	KND/GSK/LNC/SIEMENS/FANUC/Mitsubishi/Heidenhain

I Want The Best Price >> “ Send Inquiry ”

More Related CNC Machines Recommendation

Slant Bed CNC Turning Center/CNC Turn Mill	CNC Engraving & Milling Machine	Flat Bed CNC Lathe Turning Machine

Bridge type 5 Axis	Double Column CNC Milling Machine	CNC Tapping Center

5 Axis VMC Vertical Machine Center	Double Column 5 Axis CNC Milling Machine	Built-in Table 5 Axis CNC Machine Center

MAXTORS CNC HOMEPAGE

Send Inquiry to Maxtors Sales Engineers

Want to Get the Best Price

Direct Ask Supplier of One-Step Turning & Milling Solutions

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is 1 set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, HEIDENHAIN,LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Regular Machines,We will delivery then within 20 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films. Others packing methods also available.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .

Contact Supplier

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

If you still have any more FAQ, Please feel free to contact us directly.
