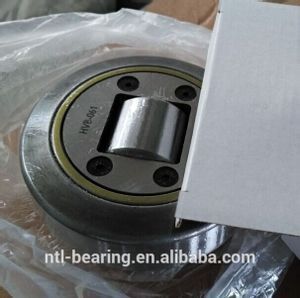

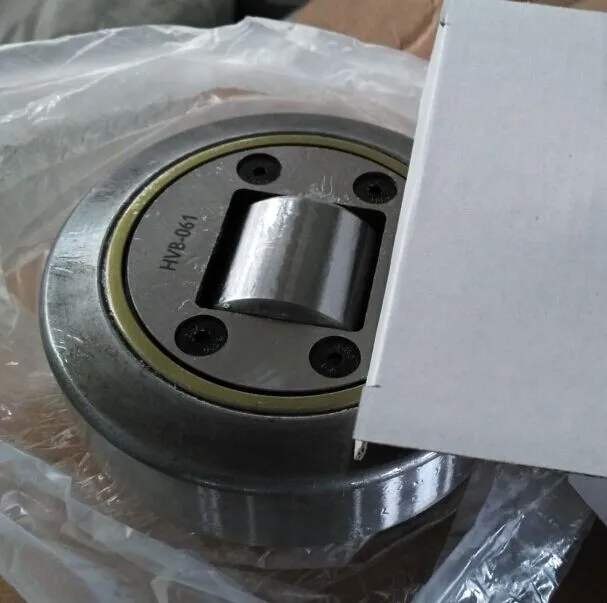

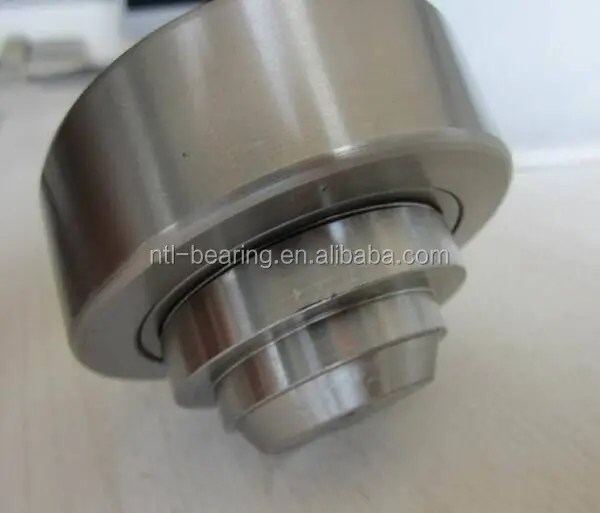

60x107.7mm winkel bearing type 4.061 forklift bearing

Supplier: Changsha Terry Machinery Co., Ltd.
Region: Hunan, China
Contact: Ms Mery Zhou
Price: $20.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Type:	Roller;	Brand Name:	NTL;
Material:	Steel;	Port:	shanghai;
inner diamater:	60mm;	outer diamater:	107.7mm;
Place of Origin:	Zhejiang China;	Delivery Detail:	3-5 days;
Number of Row:	Single Row;	Precision Rating:	P0,P6,P5,P4;
Outside Diameter:	52 - 149 mm;	Packaging Detail:	industry packing or as your requriement;
Structure:	Cylindrical;	Product Name:	60x107.7mm winkel bearing type 4.061 forklift bearing;
Bore Size:	30 - 60 mm;	Supply Ability:	100000 Piece/Pieces per Month;
Model Number:	4.061;	application:	used for Forklift;
Seals Type:	OPEN ZZ 2RS RS;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;

Product Description

60x107.7mm winkel bearing type 4.061 forklift bearing

feature

Combination of the advantages of the bearing system:
Reduce design and production costs;
Acceptable high radial and axial loads;
Sturdy rails, suitable for high dynamic loads and static load;
Carrying capacity on the rail can be well distributed;
Bearing and guideway long life;
By welding bolt assembly, economical and practical;
Easy replacement of the bearing member.

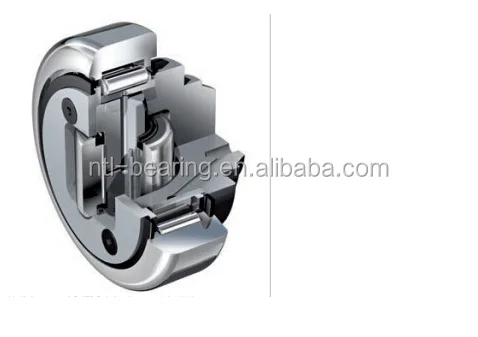

Winkel series combine roller bearing model :

Forklift Trucks Axis Combined Roller Bearing Size 4.055 70.1*48*35 - Buy Forklift Trucks Axis Combined Roller Bearing Size 4.055 70.1*48*35,Forklift Trucks Axis Combined Roller Bearing Size 4.055 70.1*48*35,Forklift Trucks Axis Combined Roller Bearing Size 4.055 70.1*48*35 Product on Alibaba.com

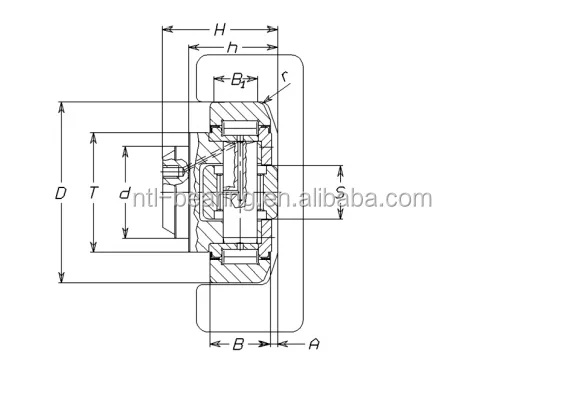

Model no.	D mm.	T mm.	d -0.05 mm.	H mm.	h mm.	B mm.	A mm.	S mm.	r mm.	C KN	COKN	COAKN	r/pm max.	Weight kg
4.053	52,5	40	30	33,0	27,0	17	5,0	15	2	24,0	32,0	7	800	0,46
4.054	62,5	42	30	37,5	30,5	20	2,5	20	3	31,0	35,5	11	900	0,53
4.055	70,1	48	35	44,0	36,0	23	2,5	22	4	45,5	51,0	14	900	0,80
4.056	77,7	54	40	48,0	36,5	23	3,0	26	4	48,0	56,8	18	800	1,00
4.057	77,7	53	40	40,0	29,0	23	3,0	26	4	48,0	56,8	18	800	0,87
4.058	88,4	59	45	57,0	44,0	30	3,5	26	3	68,0	72,0	23	750	1,62
4.059	101,2	67	50	46,0	33,0	28	3,0	30	3	73,0	82,0	27	700	1,74
4.060	107,7	71	55	54,0	39,0	31	3,0	34	5	81,0	95,0	36	650	2,27
4.061	107,7	71	60	69,0	55,0	31	4,0	34	5	81,0	95,0	36	650	2,82
4.062	123,0	80	60	72,3	56,0	37	5,0	40	5	110,0	132,0	50	550	3,89
4.063	149,0	103	60	78,5	58,5	43	5,5	50	3	151,0	192,0	71	450	6,52
