MachineryOffers

acetylene plant

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Dimension(L*W*H):AS SIZE;
Packing:Nude;Process:full;
Certification:GB;Place of Origin:Shandong China (Mainland);
Condition:New;Price:factory price;
Use:manufacture acetylene gas;Port:Qingdao PORT;
After-sales Service Provided:Overseas service provided;Supply Ability:200 Set/Sets per Month acetylene plant;
Spare parts:free;Flow rate:20m3/Hr - 100m3/Hr;
Weight:AS SIZE;Brand Name:HA;
Purity:98% - 99.9%;Voltage:220V/380V/440V;
MOQ:1 set;Warranty:one year;
After-sales Service Provided:Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;Packaging Detail:standard exporting package acetylene plant;
Product name:acetylene plant;Usage:ACETYLENE PLANT;
Production Rate:AS SIZE;

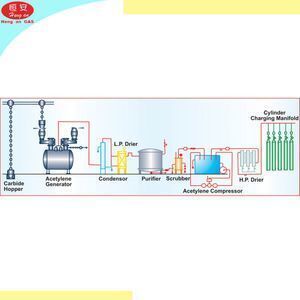

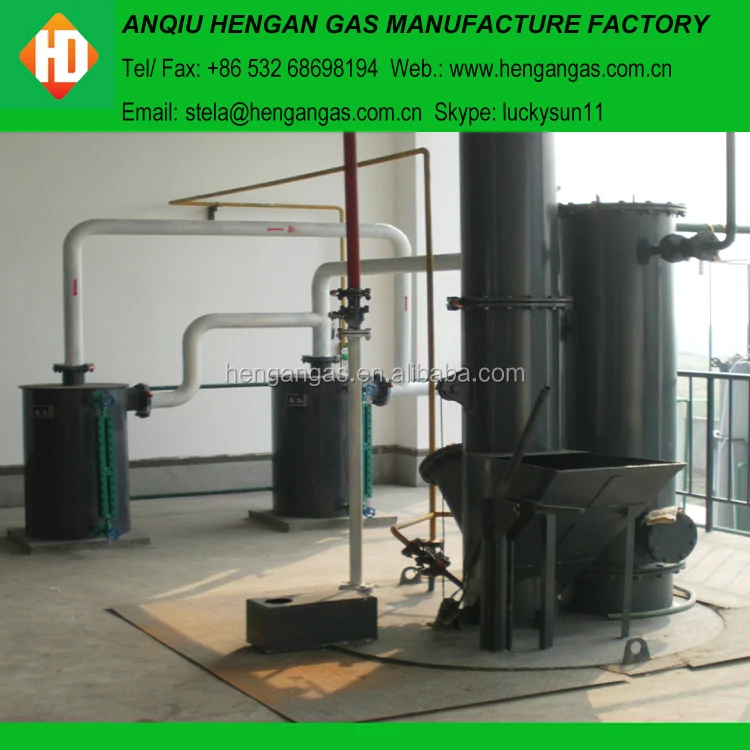

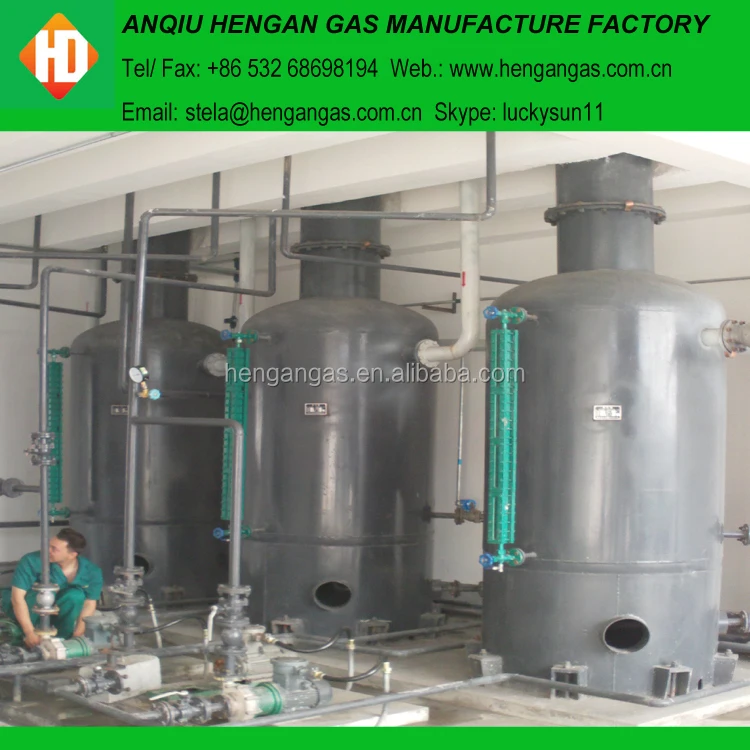

Acetylene Plant



Product Description



-  20M3 acetylene production plant  -Main technical parameter:

   Capacity:                        20Nm3 /h

   Purity of acetylene:                C2H2>98%  PH2<0.02% H2S<0.05%

   Pressure at outlet of generator:       400~500mmH2O

   Water temperature of generator:      <65°C

   Size of calcium carbide:            8~250mm

   Consumption of calcium carbide:     98kg/h

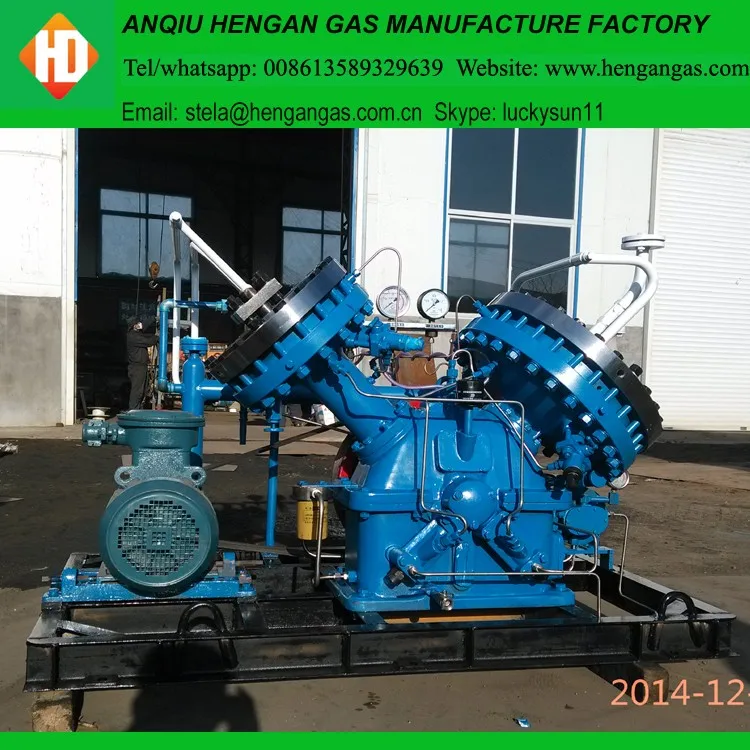

   Model of acetylene compressor:      Z1.2-0.38/25

   Electric motor for compressor:       YB132M-4  B4d7.5KW

   Charging pressure:                25kgf/cm2

   Charging board specific:            20×2



MODEL

NRY-20

NRY-40

NRY-60

NRY-80

NRY-100

NRY-120

NRY-140

NRY-160

Acetylene Volume

20m3/h

40m3/h

60m3/h

80m3/h

100m3/h

120m3/h

140m3/h

160m3/h

Acetylen Purity

C2H2≥98%

C2H2≥98%

C2H2≥98%

C2H2≥98%

C2H2≥98%

C2H2≥98%

C2H2≥98%

C2H2≥98%

Generator outlet Pressure

<0.007Mpa

<0.007Mpa

<0.007Mpa

<0.007Mpa

<0.007Mpa

<0.007Mpa

<0.007Mpa

<0.007Mpa

Generator Water Temperature

≤70°C

≤70°C

≤70°C

≤70°C

≤70°C

≤70°C

≤70°C

≤70°C

Cac2Granularity

10-200mm

10-200mm

10-200mm

10-200mm

10-200mm

10-200mm

10-200mm

10-200mm

CaC2 Consumption

95kg/h

190kg/h

285kg/h

380kg/h

475kg/h

570kg/h

665kg/h

760kg/h

Compressor Type

M2V2-20/25

M2V2-20/25

M2V2-20/25

M2V2-20/25

M2V2-20/25

M2V2-20/25

M2V2-20/25

M2V2-20/25

Motor

5.5KW

5.5KW×2

5.5KW×3

5.5KW×4

5.5KW×5

5.5KW×6

5.5KW×7

5.5KW×8

Cylinder Filing Pressure

2.45Mpa

2.45Mpa

2.45Mpa

2.45Mpa

2.45Mpa

2.45Mpa

2.45Mpa

2.45Mpa

Filling Platform

36

72

108

144

180

216

252

288

Water Consumption

1.5m3/h

3m3/h

4.5m3/h

6m3/h

7.5m3/h

9m3/h

10.5m3/h

12m3/h



Product Overviews





Company Information

Our products are successfully selling to more than 30 countries or regions in the world where we gained wide compliment and good repulation. Such as Germany, France, Sweden, the Nertherlands, Spain, Russia, Australia, Bulgeria, Fiji, New Zealand, Sevilla, Columbia, Jamaica, Peru, Chile, Ecuador, Bolivia, Singapore, Indonesia, Vietname, Philippine, South Africa, Nigeria, Ghana, Burkina Faso, Angola, Congo, etc.

Best sell products

+

High purity argon gas

High purity helium gas

Disposable helium kit

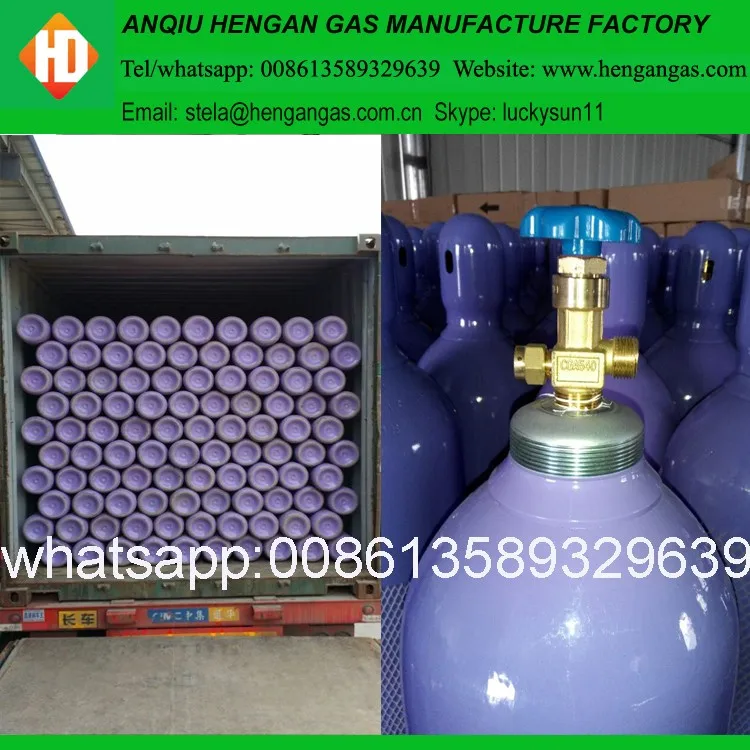

Acetylene gas
