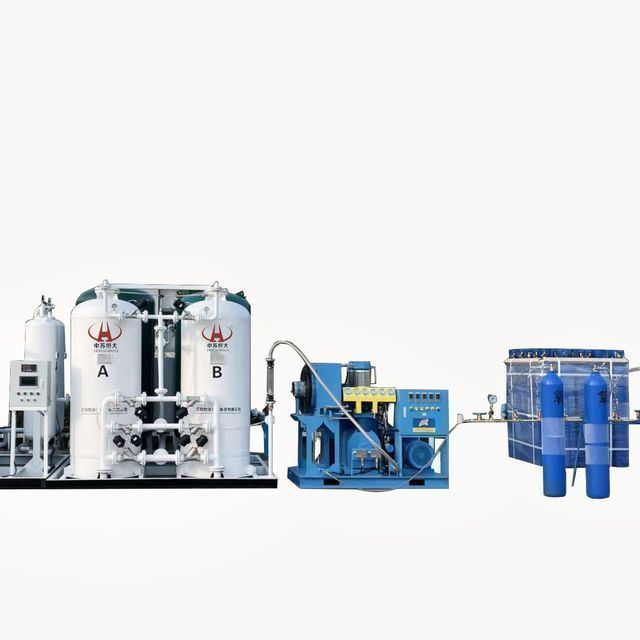

Oxygen plant

Supplier: Suzhou Hengda Purification Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sophia Xin
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

technology:	PSA system	Voltage:	220V/380V
Mechanical test report:	if	Video shipment inspection:	if
Types of:	Pressure swing adsorption (PSA)	Warranty:	1 year
Package preview:		Dimensions (LWH):	Actual size)
Material:	Carbon steel	application:	General industry
weight:	1000 kg	place of origin; place of origin:	Jiangsu, China
productivity:	100%	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
product name:	air separation unit	usage:	oxygen
color:	white/custom	purity:	90%-95%
capacity:	1-3000Nm3/h	Core component warranty:	1 year
Marketing Type:	New Products 2020	Applicable industries:	Manufacturing plants, food and beverage plants, farms, home use, construction, energy and mining
Showroom location:	not any	Packaging Details:	Standard wooden box packing
brand:	Evergrande	Main selling points:	easy to operate
Core components:	PLC, pressure vessel	State of health:	new
After-sales service provided:	Video Technical Support	Supply capacity:	60 sets per month
port:	Shanghai	MOQ:	1 set

Model	purity	flow	Outlet pressure
HDFO-1	93±2%	1 Nm3/hour	Normal outlet pressure 1-5Mpa adjustable
HDFO-5	93±2%	5 Nm3/h
HDFO-10	93±2%	10 Nm3/h
HDFO-15	93±2%	15 Nm3/h
HDFO-20	93±2%	20 Nm3/h
HDFO-25	93±2%	25 Nm3/h
HDFO-30	93±2%	30 Nm3/h
HDFO-40	93±2%	40 Nm3/h
HDFO-50	93±2%	50 Nm3/h
HDFO-60	93±2%	60 Nm3/h
HDFO-70	93±2%	70 Nm3/h
HDFO-80	93±2%	80 Nm3/h
HDFO-90	93±2%	90 Nm3/h
HDFO-100	93±2%	100 Nm3/h
HDFO-110	93±2%	110 Nm3/h
HDFO-120	93±2%	120 Nm3/h
HDFO-130	93±2%	130 Nm3/h
HDFO-140	93±2%	140 Nm3/h
HDFO-150	93±2%	150 Nm3/h
HDFO-180	93±2%	180 Nm3/h
HDFO-200	93±2%	200 Nm3/h

our company

Suzhou Hengda Purification Equipment Co., Ltd. is located in Suzhou City, the hometown of gas equipment in China. Our company specializes in the development and manufacture of gas-fired power generation equipment.

As a manufacturer specializing in R&D, production and development of gas and water equipment, Hengda can provide customers with PSA nitrogen generators and nitrogen purification equipment, PSA oxygen generators, VPSA oxygen generators, HDAQ series, HDFC series ammonia decomposition hydrogen generators, HDFQ series high-purity hydrogen purification device, gas recovery device, air purification device, etc. We can also provide a variety of gas supply solutions according to customer requirements, and provide users with maintenance, technical training and technical consultation. Nitrogen, oxygen, hydrogen production equipment and related equipment.

Hengda's goal is to provide customers with gas separation equipment and the best technical services. As a result, customers are able to produce high-quality products with great efficiency.

Quality is the life of an enterprise, and service is the basis of cooperation. Therefore, we always adhere to the principle of "creating the future with quality and creating the brand with service", and are committed to providing users with the best products and the most satisfactory service.

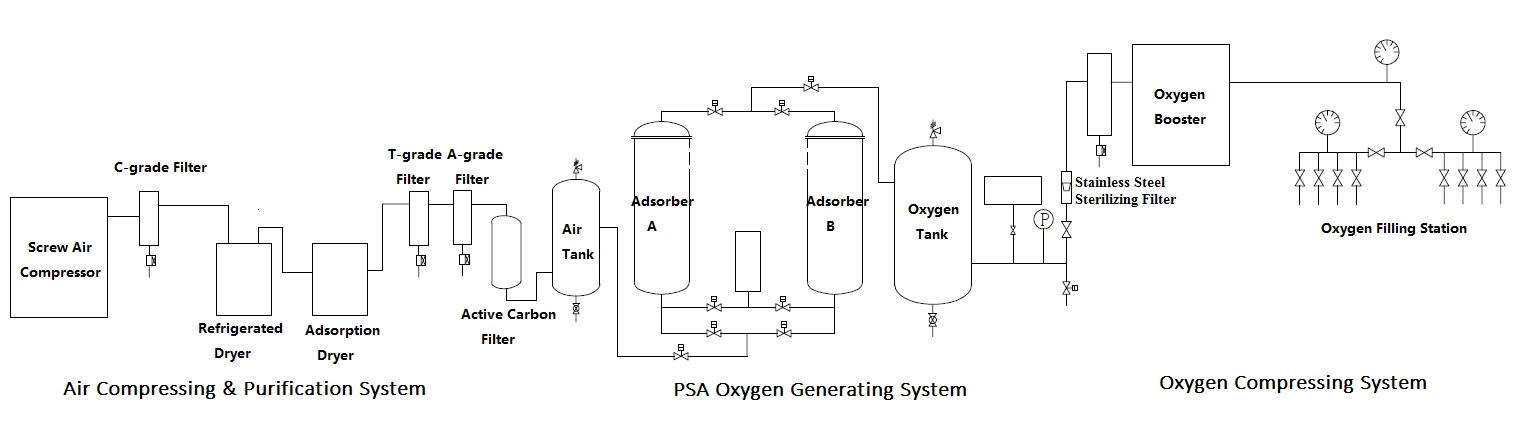

Advantages of PSA oxygen generator

The traditional way to obtain oxygen is to liquefy air and then distill it at a temperature of around -180°C.
The technological process is very complicated, and the total cost of oxygen production is very high.
It is suitable for producing oxygen ≥99.5% and multi-component gases.

PSA generator can operate under normal pressure, its advantages are as follows:
1. Low yield jacket.
2. Simple process, less equipment, high degree of automation and convenient operation.
3. Fast start, easy stop. The system can provide product gas within 30 minutes after starting up, and it can also run intermittently.
4. Low working pressure and safe.
5. Good flexibility. Oxygen purity and output can be easily adjusted.
Suitable for fields that only require oxygen <95%
