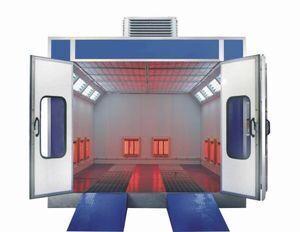

Hot sell High quality /Automotive paint spray booth / car baking oven

Click here to contact

Product details

Environmental certificate:	CE;	Place of Origin:	Shandong China;
Type:	Spray Booths;	Inside Dimension:	690039002400mm(LWH);
Filters:	High Efficiency Filter;	Delivery Detail:	shipped in 15 days after payment;
Disc Dia.:	none;	Color:	Red White Orange Blue;
Payment Terms:	L/C,T/T;	Power:	33kw;
Packaging Detail:	Automotive paint spray booth / car baking oven.According to conventional packing.;	Internal Size:	690039002400mm(LWH);
Port:	QINGDAO;	Outside Dimension:	700053003200mm(LWH);
No Load Speed:	Loaded Booth;	Model Number:	JD-A2;
Lighting System:	24pcs LED Lights;	External Size:	700053003200mm(LWH);
Usage:	Car Painting Baking;	Supply Ability:	100 Set/Sets per Month;
Product name:	Automotive paint spray booth / car baking oven;	Heating System:	Infrared Lamps;
Certification:	ce;	Voltage:	220V/380V;
Brand Name:	Jinding;	Warranty:	One Year. Service;

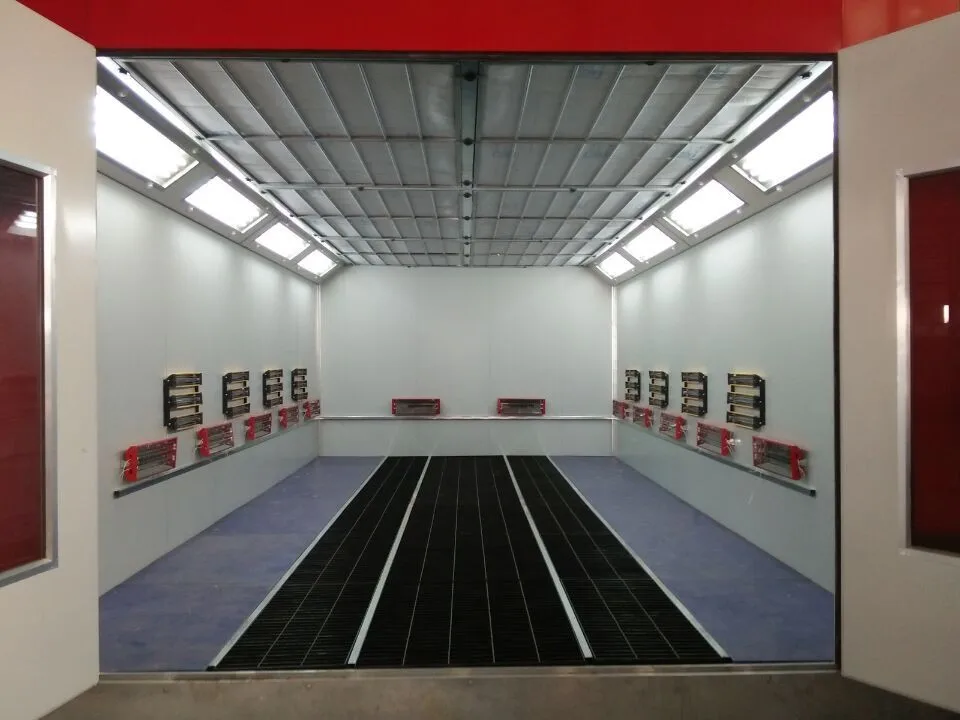

Automotive paint spray booth / car baking oven

product specificatio

Model	JD-A2
Inside Dimension	690039002400mm (L×W×H)
Outside Dimension	700053003200mm (L×W×H)
Personal Door	1fold ,800×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock .
composite board	75mm foam board, density:10kg, Ironhide thickness:0.4mm
Basement and Floor	Galvanized steel assemble,Full metal foundation, height is 300mm.
	Five rows flat steel Grilles (galvanized)
	3 pieces of Ramps, each size 900×2000mm (W×L),diamond plate construction.
Climbing platform	Size:1.60.7m, Mechanism of bonding35 grille
Lighting System	LED lighting, 24 groups
Generator	-Side upper intake air, quadrate steel frame, coated steel.
Setting Type	-Electric damper actuates from the spraying to baking cycle.

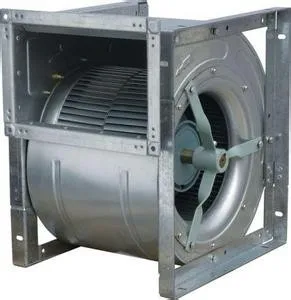

Inlet Fan	2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h.

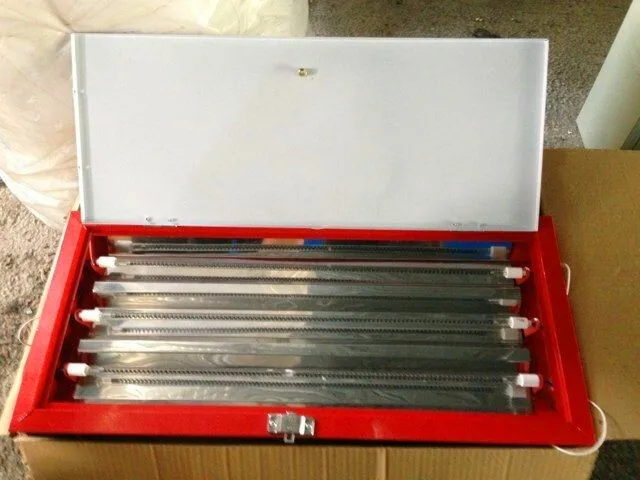

Heating Method	8 groups of three electric heating tube infrared heat lamp, each 1kw.
Filter System	-The primary filter can capture granules larger than 10μm , filtering rate > 83%.
	-Ceiling filter can capture granules bigger than 4μm, 1*5.5KW YDW filtering rate> 98%.
	-Floor filter( fiberglass paint-stop filter ),filtering rate > 70%.
	-Activated carbon filter or granules put in cabinet.
Control System	Lighting switch, spraying , heat spraying , baking , temperature controller,
Control System	time setting, emergency stop , failure indicator, hour meter, thermostat .
Total Power	33KW
