PCB circuit boards manufacture
- 0.10 >=5 pieces
| Number of Layers: | Single, Double, Multilayers; | Base Material: | FR-4 94v0,FR-4; |
| Port: | Shenzhen, HongKong; | Packaging Detail: | Vaccum package and standard carton outside Hot products crt tv circuit boards in China for sale; |
| PCB Item: | Fr4 94V0 Rohs Pcba Pcb; | Soldermask: | Green, White, Red, Brown, Black; |
| Board Thickness: | 0.5~3.2mm; | Copper Thickness: | 1oz~4oz; |
| Lead Free Technology: | Yes; | Min. Hole Size: | 0.1mm; |
| Brand Name: | Rogers 4300B; | Model Number: | FC-pcb051; |
| Name: | Hot products crt tv circuit boards in China for sale; | Supply Ability: | 50000 Square Meter/Square Meters per Month Hot products crt tv circuit boards in China for sale; |
| Min. Line Width: | 0.1mm; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
| Min. Line Spacing: | 0.1mm; | Silkscreen: | White; |
| Certificate: | RoHS, UL,SGS, ISO/TS16949, ISO9001; | Place of Origin: | Guangdong China; |
| Product name: | tv boards; | Surface Finishing: | ENIG; |
| packing: | Vacuum+Dessicant for inner pack; |

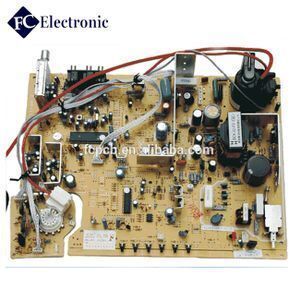

Hot products crt tv circuit boards in China for sale

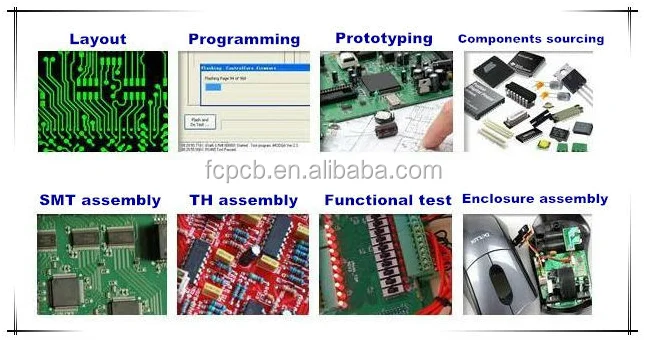

* PCB design,pcb layout and pcb production
* Every board is to IPC Class II or higher standard
* All boards are UL approved and made in ISO-9001 certified facilities
* 100% tested (flying probe or E-test)
* Free panelizing and PCB design check with no extra cost
* 24/7 engineering support. We work with customers closely to ensure the boards are standards compliant.

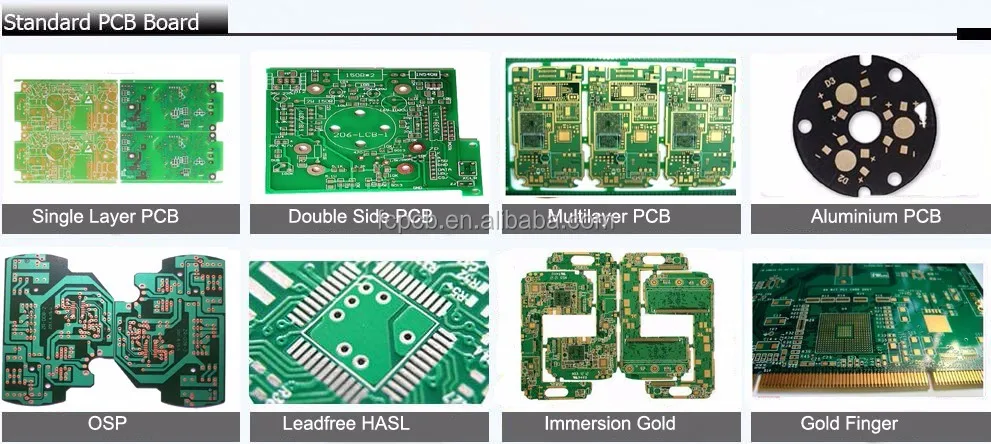

PCB Capability
|
PCB Manufacturing Capability |
||||
 |
|
Content |
General |
Advanced |
|
1 |
Base material: |
SY S1141, S1000-2,KB,Aluminum |
Rogers 4003,Hybrid FR4+Rogers,PTFE |
|
|
Thickness: |
0.4mm-3.2mm |
0.2mm-7.0mm |
||
|
2 |
Copper: |
0.5OZ-3OZ |
0.5OZ-5OZ |
|
|
3 |
Min line width: |
4mil(0.1mm) |
3mil(0.075mm) |
|
|
Min line space: |
4mil(0.1mm) |
3mil(0.075mm) |
||
|
4 |
Min through hole: |
8mil(0.2mm) |
6mil(0.15mm) |
|
|
5 |
Min blind/burried hole: |
4mil(0.1mm) |
NA |
|
|
Min stacked hole: |
4mil(0.1mm) |
NA |
||
|
6 |
Layer: |
1-20L |
1-30L |
|

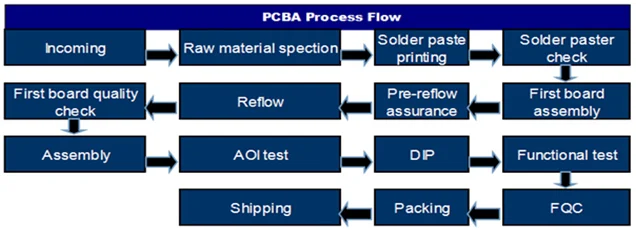

PCBA Capability
|
PCBA Manufacturing Capability |
||||
 |
|
Content |
General |
Advanced |
|
1 |
TH components: |
Wave-soldering |
NA |
|
|
2 |
Min. Chip Placement: |
0402 |
0201 |
|
|
3 |
QFN Lead Pitch: |
0.4mm |
0.3mm |
|
|
4 |
Min. IC Pitch: |
0.4mm |
0.3mm |
|
|
5 |
Maximum BGA Size: |
50mm X 50mm |
74mm X 74mm |
|
|
BGA Ball Pitch: |
0.4mm |
0.3mm |
||
|
6 |
Max. PCB Size: |
350mm X 400mm |
410mm X 600mm |
|
|
Foot Pin: |
SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA |
|||
LEAD TIME FOR PRODUCTION ORDERS:
Sample Lead time(days) Mass production lead time (days)
Single sided PCB 1-3 4-7
Double sided PCB 2-5 7-10
Multilayer PCB 7-8 10-15
PCB and Assembly 8-15 15-20

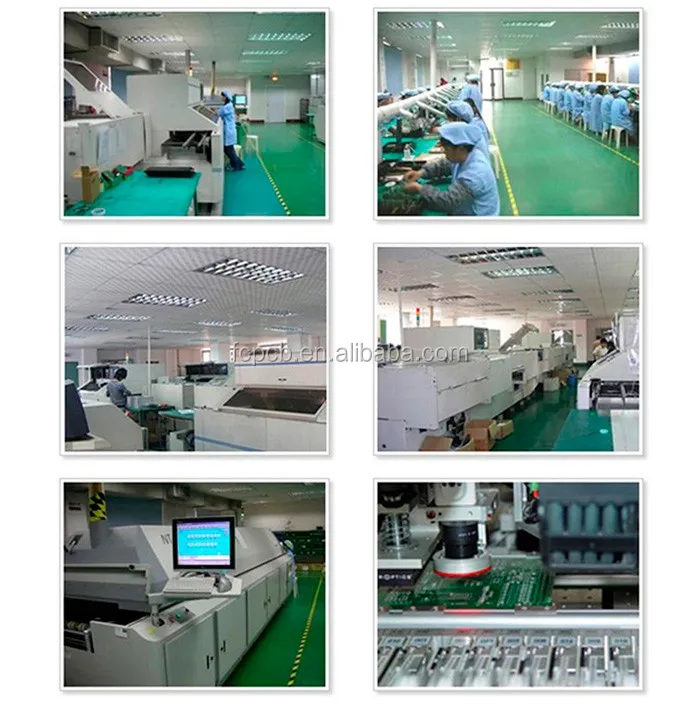

Our Factory
Packing
Shipments
FAQ:
Q:1.Can i have a sample to test?
A:Yes,we can send you samples to test.
Q:2.Do you have MOQ limit?
A:Even 1 pcs,we care.
Q:3.Can you offer the best price for us?
A:Yes,we are specialized PCB manufacturer directly,we can offer lower price than any trading company.
Q:4.How do you ship the goods and how long does it take arrival?
A:We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5days to arrive.
Q:5.Can we visit your factory?
A:Yes,welcome to visit our factory anytime,and we will lead you to visit our factory and our production line.
Q:6.What specifications do you need for PCB quotation?
A:We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
