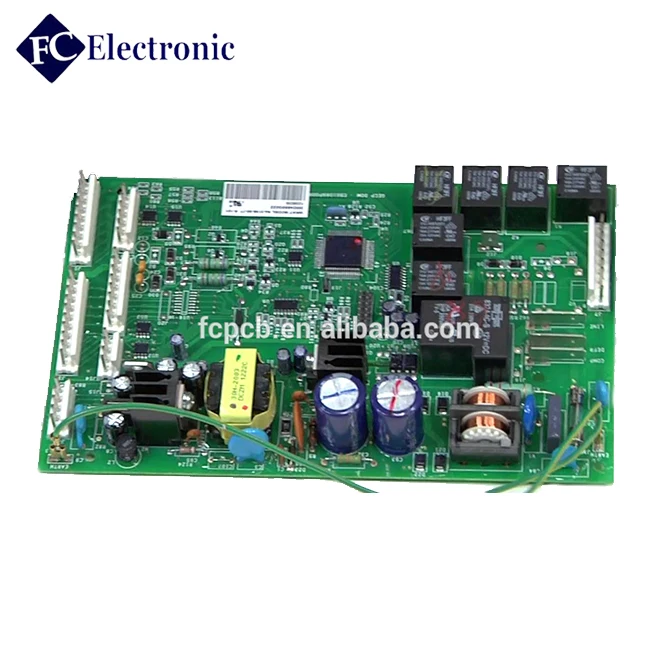

High quality electronic controlador PCB assembly for refrigerator

Product details
Min. Line Spacing:0.1mm;Soldermask:Green, White, Red, Brown, Black;
Certificate:RoHS, UL,SGS, ISO/TS16949, ISO9001;Port:Shenzhen, HongKong;
Packaging Detail:Vaccum package and standard carton outside High quality electronic controlador PCB assembly for refrigerator;Surface Finishing:HASL;
Product name:Electronic Controller Printed Circuit Board;Lead Free Technology:Yes;
Place of Origin:Guangdong China;Name:High quality electronic controlador PCB assembly for refrigerator;
Silkscreen:White;Delivery Detail:Shipped within 10days after payment Electronic Controller Prin;
Board Thickness:0.5~3.2mm;Model Number:FC-pcb0199;
PCB Item:Fr4 94V0 Rohs Pcba Pcb;packing:Vacuum+Dessicant for inner pack;
Min. Line Width:0.1mm;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Copper Thickness:1oz~4oz;Brand Name:Rogers 4003B;
Base Material:FR4,FR-4;Min. Hole Size:0.1mm;
Number of Layers:Single, Double, Multilayers;Supply Ability:50000 Square Meter/Square Meters per Month High quality electronic controlador PCB assembly for refrigerato;
Product Description





Our production capacity

PCB Item Manufacture Capacity
   Layer Counts   1--20L
   Base Material   FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)
   Material Thickness(mm)   0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
   Max board size(mm)   1200x400mm
   Board Outline Tolerance   ±0.15mm
   Board Thickness   0.4mm--3.2mm
   Thickness Tolerance   ±8%
   Minimum line/space   0.1mm
   Min Annular Ring   0.1mm
   SMD Pitch   0.3mm
Holes
   Min  Hole Size(mechanical)   0.2mm
   Min Hole Size(laser hole)   0.1mm
   Hole Size Tol (+/-)   PTH:±0.075mm;NPTH: ±0.05mm
   Hole Position Tol   ±0.075mm
Plating
   HASL/LF HAL   2.5um
   Immersion Gold   Nickel  3-7um  Au:1-5u''
   Surface Finish   HAL,ENIG,Plated Gold,Immersion Gold,OSP
   Copper
   Copper Weight   0.5--6oz
Color
   Solder mask   Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
   Silk screen   White, Black, Blue,Yellow
   Acceptable File Format   Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000
   Certificate   ROSH,ISO9001,UL



OEM/ODM/EMS Services for PCBA:

  • PCBA, PCB Board assembly: SMT & PTH & BGA
  • PCBA and enclosure design
  • Components sourcing and purchasing
  • Quick prototyping
  • Plastic injection molding
  • Metal sheet stamping
  • Final assembly
  • Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
  • Custom clearance for material importing and product exporting

Capability - SMT

  • Lines                   9(5 Yamaha,4KME)
  • Capacity                 52 million placements per month
  • Max Board Size           457*356mm.(18”X14”)
  • Min Component size       0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
  • Speed                   0.15 sec/chip,0.7 sec/QFP

Capability - PTH

  • Lines                   2
  • Max board width         400 mm
  • Type                   Dual wave
  • Pbs status               Lead-free line support
  • Max temp               399 degree C
  • Spray flux               add-on
  • Pre-heat                 3

       Product Type













          To ensure an accurate quote, be sure to include the following information for your project:

          •Complete GERBER files including the BOM list
          •Other file types (Altium,Protel,OrCAD)
          •"Read Me" notes for additional fabrication information
          •Quantities
          •Turn time
          •Panelization Requirements
          •Materials Requirements
          •Finish requirements
          Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.







          AOI Testing
                              Checks for solder paste
                              Checks for components down to 0201"
                              Checks for missing components, offset, incorrect parts, polarity
          X-Ray Inspection
                              X-Ray provides high-resolution inspection of:
                              BGAs
                              Micro BGAs
                              Chip scale packages
                              Bare boards
          In-Circuit Testing
                              In-Circuit Testing is commonly used in conjunction with AOI minimizing functional
                              defects caused by component problems.
          Power-up Test
                              Advanced Function Test
                              Flash Device Programming
                              Functional testing





                              We purchase material from Original Company and distributers.
                              We make products by strict engineer processes.
                              We have strict inspection processes.
                              We send products by vaccum package,antistatic package and carton box.





          1. Are my design files secure when I send them to you?



          Your files are held in complete safety and security.Your files are never shared nor will any third               parties have access to your design files.Fulltronics can sign an NDA(Non-disclosure                               agreement) before sending files.



          2. For small quantity orders, can you produce prototype PCBs?



          Yes. Fulltronics can produce prototypes. but the greater the quantity, the greater the cost                         savings.



          3. What file formats do you accept for PCB and assembly?



          Gerber ,CAM Auto CAD DXF, DWG formats.



          4. Do you have after-sales product servicing available for your customers?



          Yes, for any quality problems Fulltronics will take our responsibility to solve it for you any time.
