High Performance vacuum evaporator jam concentrator food grade milk honey water alcohol oil vaccum evaporation
-
Supplier: Wenzhou Leno Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Jason Chen -
Price: $1980.00 /set -
Min. Order: 1 set
| Warranty: | 1 Year; | Main uses: | falling film vacuum pressure ball spherical; |
| Certification: | CE; | volume: | 50L-50000L; |
| Applicable Industries: | Food & Beverage Factory,Food & Beverage Shops; | Brand Name: | LENO; |
| Application Industries: | Pharmaceutical; | Process: | Drum Evaporator; |
| Origin: | China wenzhou Lenotank; | Dimension(L*W*H): | customized; |
| Port: | Ningbo and shanghai port; | Name: | Short-range Molecular Distillation System; |
| Power Source: | steam and electric; | Place of Origin: | China; |
| Packaging Detail: | Plywoodcases(according to customer's requirement); | Voltage: | 120V-480V; |
| Product name: | vacuum evaporator concentrator; | Supply Ability: | 30 Set/Sets per Month; |
| heating way: | steam or electric; | After-sales Service Provided: | Online support; |
| Power: | 0.55kw-30kw; | Weight: | customized; |
| Payment Terms: | L/C,T/T,MoneyGram,Alibaba insurance; | vaccum pump: | 1.5KW-11KW; |
| Condition: | New; | Material: | SS304 SS316L; |
| application: | juice food oil; |
High Performance vacuum evaporator jam concentrator food grade milk honey water alcohol oil
| High Performance vacuum evaporator jam concentrator food grade milk honey water alcohol oil | |||
| Profile type | vacuum evaporator concentrator | ||
| Material | SS304 or SS316L | ||
| Capacity | 0.1T/H-5T/H (Customized) | ||
| Heater type | Electric heating / Steam heating | ||
| The Working Temperature | 40°C~80°C | ||
| The Working Pressure | -0.08Mpa | ||
| Power | 0.55KW-30KW | ||
| PARTS DETAILS | 1.Quick open manhole / Pressure manhole | ||
| 2.Various types of CIP cleaners | |||
| 3.Sterile respirator | |||
| 4.Adjustable Legs | |||
| 5.Inlet and Outlet sanitary valve. | |||
| 6.Thermometer (According to customer requirements ). | |||
| 7.Scraped wall mixer .(According to customer requirements). | |||
| 8.Liquid level meter and lever controller (According to customer requirements) . | |||

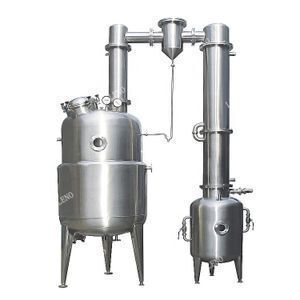

1. vacuum concentrator makes use of the methods of vacuum evaporation or mechanical separation to concentrate the materials. vacuum concentrator is composed of heater, evaporation chamber, foam remover, condenser, cooler and liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.
2. vacuum concentrator is suitable for the liquid evaporation&concentration in the industries of pharmacy, food, chemical, light industry, etc. This equipment features short concentration time, fast evaporation time and can protect the thermal sensitivity materials well.
3. At present, in order to improve the concentrated products’ quality, concentrator widely adopts vacuum concentration process. Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.
| Model | (L) Equipment volume | (KG/H) Evaporation quantity | (Mpa) Working Pressure in jacket | (Mpa) Vacuum degree in tank | KW Vacumm Pump | (KG) Weight of equipment | (RPM) Agitator speed |
| RVC100 | 150 | 100 | ≤0.1MPa (According to customer requirements) | -0.08Mpa | 1.5KW | 320 | (According to customer requirements) |
| RVC200 | 250 | 200 | 2.2KW | 460 | |||
| RVC500 | 600 | 500 | 3.0KW | 680 | |||
| RVC1000 | 1000 | 1000 | 4.0KW | 860 | |||
| RVC2000 | 2000 | 2000 | 5.5KW | 1120 | |||
| RVC3000 | 3000 | 3000 | 7.5KW | 1300 | |||
| RVC5000 | 5000 | 5000 | 11.0KW | 1700 |
More Related Products:
FAQ
1.Q:Are you trade or manufacturer ?
A : We are a factory with an international sales company specialized in support for global distributors.
2.Q:How long is the service time?
A:It could use several year without external force factors.We have 1 year warranty.
3.Q:What is the payment terms?
A:We accept T/T and L/C,also can use alibaba trade assurance.
4.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customers).
5.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer requirements.
