single knot fishingnet machine
- 47000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Needles: | Single Needle Bar; | Automatic Grade: | Automatic; |
| Driving control: | 3- Phase Line 380; | After-sales Service Provided: | Video technical support,Online support; |
| Video outgoing-inspection: | Provided; | Keywords: | Fishing Net Machine; |
| Condition: | New; | Core Components: | Engine; |
| Supply Ability: | 30 Set/Sets per Month; | Applicable Industries: | FISHING AND FARMING; |
| Usage: | Mesh Net Produce; | Payment Terms: | L/C,D/A,D/P,T/T; |
| Local Service Location: | None; | Brand Name: | SNC; |
| Knot type: | Single; | COLOUR: | Customer Required; |
| After Warranty Service: | Video technical support,No service,Online support; | Warranty of core components: | 1 Year; |
| PITCH: | 7.5mm; | Mesh Size: | 12-200mm; |
| Certification: | CE; | Warranty: | 1 Year; |
| Application: | knot netting machine; | Voltage: | 380V; |
| Place of Origin: | Jiangsu China; | Product Name: | Factory produced best price raschel knitting machine manufacturers; |
| Packaging Detail: | High speed CTL Fishing Net Machine for single, double and U knot Sea wooden box packaging; | Marketing Type: | Ordinary Product; |
| Weight: | 2000KG; | Machinery Test Report: | Provided; |
| Showroom Location: | None; | Speed: | High Speed; |
| Port: | Shanghai; |

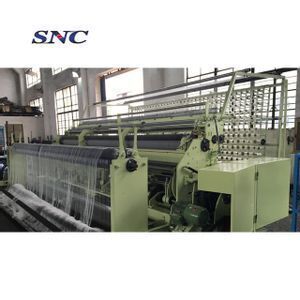

CTL Netting Machine
- High speed: 26 r.p.m
- spool diameter:180mm & 200mm & 230mm 250mm 270mm
- All cam with heat treatment
- We can use Tsubaki(Japan) cam clutch
- Main bearing use Japan brand
- Laser and accounter use Omlon
Specifications:Quick Details Place of Origin Jiangsu, China (Mainland), china Brand Name SNC Model Number CTLS CTLD CTLU Type FISHING NET MACHINE Packaging & Delivery Packaging Details NO PACKING, LOAD IN CONTAINER Delivery Detail 90 DAYS AFTER PAYMENT Pitch 7.5mm up to 22mm Speed up to 26RPM Bobbin up to 270mm Knot type Single, Double, U-knot Shuttle brass or plastic
| CTLS for single knot machine | ||||||||||
| Item/Model | 07/05/20 | 07/05/20 | 07/05/03 | 07/08/20 | 08/08/20 | 30/09/30 | 30/09/20 | 11/07/20 | 13/02/80 | 16/02/10 |
| Pitch(mm) | 7.5 | 7.5 | 7.5 | 8.8 | 8.8 | 10 | 10 | 12.7 | 14.2 | 17.2 |
| Width(number of meshes) | 620 | 720 | 803 | 520 | 620 | 430 | 520 | 420 | 380 | 310 |
| Diameter of reel(mm) | 180 | 180 | 180 | 200 | 200 | 230 | 230 | 270 | 270 | 270 |
| nylon twine denier/ply | 210d/2-12 | 210d/2-12 | 210d/2-12 | 210d/3-18 | 210d/3-18 | 210d/3-30 | 210d/3-33 | 210d/6-48 | 210d/9-60 | 210d/9-90 |
| PE twine denier/ply | 250d/2-380d/6 | 250d/2-380d/6 | 250d/2-380d/6 | 380d/3-9 | 380d/3-9 | 380d/3-12 | 2380d/3-12 | 380d/6-21 | 380d/9-30 | 380d/9-43 |
| Mesh Size(mm) | 30/11/00 | 30/11/00 | 30/11/00 | 13-300 | 13-300 | 14-300 | 14-300 | 18-300 | 20-300 | 28-300 |
| Rotative velocity(r/mm) | 22 | 23 | 23 | 22 | 23 | 22 | 22 | 23 | 23 | 23 |
| Motor Power(kw) | 4 | 5.5 | 5.5 | 5.5 | 5.5 | 4 | 5.5 | 5.5 | 5.5 | 5.5 |
| CTLU for U knot machine | ||||||||
| 07/05/20 | 07/08/20 | 30/09/30 | 30/09/20 | 11/07/20 | 13/02/80 | 16/02/10 | 22-242 | |
| Pitch(mm) | 7.5 | 8.8 | 10 | 10 | 12.7 | 14.2 | 17.2 | 22 |
| Width(number of meshes) | 620 | 520 | 430 | 520 | 420 | 380 | 310 | 242 |
| Diameter of reel(mm) | 180 | 200 | 200 | 230 | 250 | 270 | 270 | 270 |
| nylon monofilamentD(MM) | 0.15-0.33 | 0.23-0.42 | 0.25-0.45 | 0.25-0.45 | 0.30-0.62 | 0.35-0.70 | 0.40-0.85 | 0.52-1.1 |
| nylon twine denier/ply | 210d/2-9 | 210-03-14 | 210d/4-21 | 210d/4-21 | 210d/6-36 | 210d/9-60 | 210/9-84 | 210d/18-120 |
| Mesh Size(mm) | U;45-300 D:16-300 S:16-300 | U;55-300 D:18-300 S:18-300 | U;60-300 D:20-300 S:20-300 | U;60-300 D:20-300 S:20-300 | U;60-300 D:28-300 S:28-300 | U;60-300 D:31-300 S:31-300 | U;60-300 D:36-300 S:36-300 | U;60-300 D:40-300 S:40-300 |
| Rotative velocity(r/mm) | U:17 D:24 S:24 | U:16 D:23 S:23 | U:17 D:26 S:26 | U:16 D:21 S:22 | U:16 D:21 S:21 | U:16 D:21 S:21 | U:16 D:21 S:21 | U:16 D:21 S:21 |
| Motor Power(kw) | 4 | 4 | 4 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
