Electric motor gearbox with reliable quality manufacturer in China
- 76.24 >=100 sets
| Voltage: | 380V; | Output Speed: | 14~186.7rpm; |
| Material: | Aluminum; | Color: | Blue, silver, green or other; |
| Ratio: | 1:5-100; | Bearing: | QC; |
| Package Type: | Inner Pack: use plastic bag and foam box; Outer Pack: carton or wooden case per set or based on customer's request.; | Selling Units: | Single item; |
| Delivery Detail: | 0 days after payment; | Brand Name: | Hengbai; |
| Quality Control System: | ISO 9001:2000; | Output Torque: | 4~2320Nm; |
| Place of Origin: | Zhejiang China (Mainland); | Frequency: | 50Hz; |
| Package Preview: | https://sc02.alicdn.com/kf/HLB1V3fBT6TpK1RjSZKPq6y3UpXa8.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1F6fDT7PoK1RjSZKbq6x1IXXaN.jpg_640x640.jpg; | Warranty: | 1 year; |
| Input Speed: | 1400rpm(4pole); | Oil Seal: | CTY; |
| Efficiency: | IE2; | Gearing Arrangement: | Worm; |
| Single gross weight: | 15 KG; | Single package size: | 50X30X30 cm; |

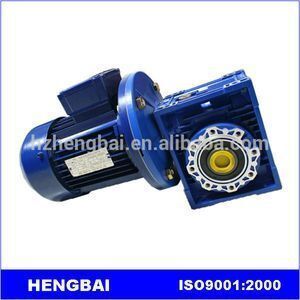

Type: | RV Series Worm Gearbox Motor |

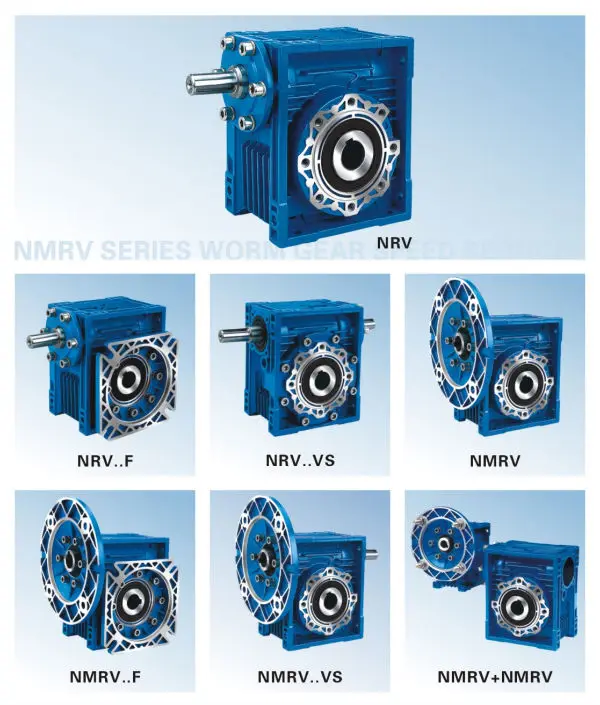

Model: | NMRV030, 040, 050, 063, 075, 090, 110, 130 |
Ratio: | 1:5, 7.5,10,15,20,25,30,40,50,60,80,100 |
Color: | Blue/silver/green or on customer’s request |

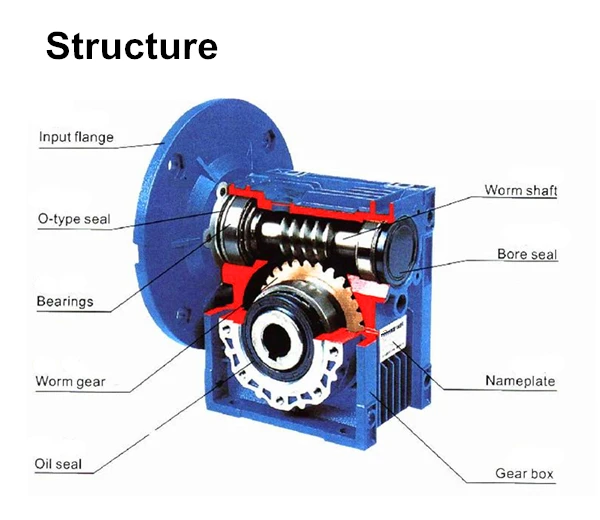

Material: | Housing-aluminum with oven painting for RV030-090 gearbox, cast iron for RV110 and 130 gearbox. |
Worm Whele-ZQAl9-4-4-2 | |
Worm Shaft- 20Cr steel.The hardness of surface is 56-62HRC with carbonized layer 0.3-0.5mm | |
Bearing: | QC |
Oil Seal: | CTY |
Packing: | Inner pack: use plastic bag and foam box, Outer pack: carton or wooden case per set or based on customer's request. |
Warranty: | 1 year |
Application: | Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass. |

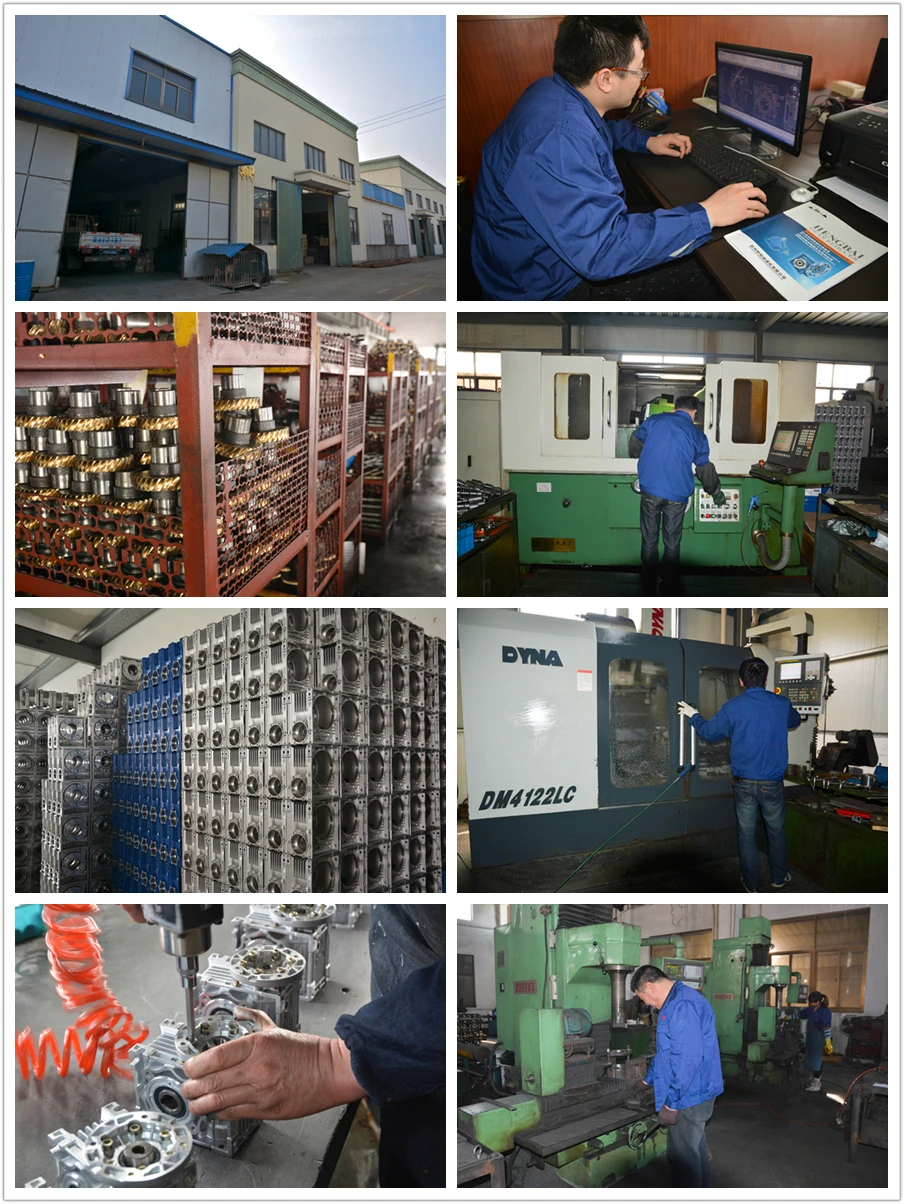

Hangzhou Hengbai Gear Reducer Co.,Ltd. has been a specialized manufacturer in designing and
producing gearboxes for nearly 20 years. We imported advanced technology from United States,
Germany and Japan, adopted CAD design and reasonable arrangement. The Hengbai products
always receive faith from old and new customers.
Website: http://www.hangzhoureducer.com/
(1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
Kindly, pls send the Model, Ratio, and Quantity to us, then we will give you the best price.
