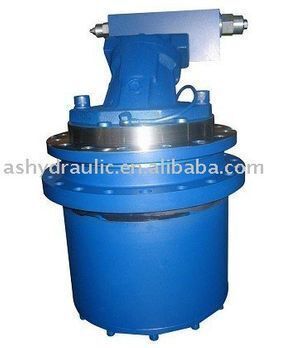

Rexroth GFT of GFT13T2,GFT17T2,GFT17T3,GFT24T3,GFT36T3,GFT50T3,GFT60T3,GFT110T3,GFT220T3,GFT330T3 high speed reducer

Click here to contact

Product details

Supply Ability:	3000 Set/Sets per Month;	Rated Power:	13000-330000 N.m;
Port:	Ningbo/Shanghai;	Output Torque:	13000-330000 N.m;
Model Number:	GFT13T2,GFT17T2,GFT17T3,GFT24T3,GFT36T3,GFT50T3,GFT60T3,GFT110T3;	Output Speed:	Rexroth GFT high speed reducer;
Brand Name:	Rexroth;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Alipay,Wechat;
Packaging Detail:	Standard export plywood case;	Place of Origin:	Zhejiang China (Mainland);
Rexroth GFT high speed reducer:	Rexroth GFT high speed reducer;	Gearing Arrangement:	Planetary;
Input Speed:	2000 r/min;	Delivery Detail:	Within 15 days after receipt of payments;

Rexroth GFT of GFT13T2,GFT17T2,GFT17T3,GFT24T3,GFT36T3,GFT50T3,GFT60T3,GFT110T3,

GFT220T3,GFT330T3 high speed reducer

1. Completely interchangeable with original

2. Range from GFT 13T2 to GFT 330T3

3. Planetary Gearboxes for Mobile Equipment

4. For travel drives in tracked and wheeled vehicles

5. Also suitable for other applications, e.g. rotary motion sequences,

drum drives, milling drum drives etc.

6. High speed cranked shell reducer

7. Compact two-, three- or four-stage planetary gearboxes

8. Cageless planetary gear bearing

9. Robust main bearing

10. Optimized seals

11. Integr. multi-disc parking brake

12. Optional with wheel drives: mechanical disconnecting device

13. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VE)

14. Easy mounting, easy oil change, low-noise operation

15. Very competitive price

16. 1 year of warranty.

Technical Specifications

Model	Max. output torque Tmax N.m	Rotation Ratio	Hydraulic Motor		Max. input rotating r/min	Static brake torque Tbrmax. N.m	Brake working pressure Mpa
GFT 13T2	13000	16.3,22.6,32.1,37.6	A2FE45, A2FE56, A2FE63	A6VE28, A6VE55	2000	450-900	1.8-5
GFT 17T2	17000	26.4,32.1,45.5,54	A2FE45, A2FE56, A2FE63	A6VE55	2000	500-1000	1.8-5
GFT 17T3	17000	77.9,88.2,102.6	A2FE28, A2FE32, A2FE45, A2FE56	A6VE28, A6VE55	2000	220-450	1.8-5
GFT 24T3	24000	90.1,102.6,120.5	A2FE45, A2FE56, A2FE63	A6VE55	2000	400-750	1.8-5
GFT 36T3	36000	67,79.4,100,116.6	A2FE45, A2FE56, A2FE63, A2FE80, A2FE90	A6VE55, A6VE80	2000	450-800	1.8-5
GFT 50T3	50000	84.2,91.1,99.8,125.7,146.4	A2FE80, A2FE90	A6VE80, A6VE107	2000	600-1100	1.8-5
GFT 60T3	60000	86.5,94.8,105.5,119.8,139.9,169.9	A2FE80, A2FE90, A2FE107, A2FE125	A6VE80, A6VE107, A6VE160	2000	800-1200	1.8-5
GFT 110T3	1100000	95.8,114.8,128.6,147.2,173.9,215	A2FE107, A2FE125, A2FE160, A2FE180	A6VE107, A6VE160	2000	900-2000	1.8-5
GFT 220T3	2200000	188.9,246.1,293	A2FE107, A2FE125, A2FE160, A2FE180	A6VE107, A6VE160	2000	1200-2400	1.8-5
GFT 330T3	3300000	168.9,209.9,252,302.4	A2FE250, A2FE355	A6VE250, A6VE355	2000	1500-3500	1.8-5
