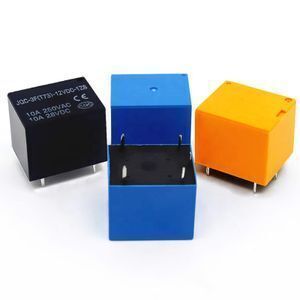

JQC-3F T73 DC 3V 5V 6V 9V 12V 24V 7A 10A 5PIN SPDT Sugar Cube Relay

Supplier: Yueqing Hongshuo Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Amy OUYANG
Price: $0.08 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

type:	jqx-14ff3 t73 relay;	Contact load:	10A 250VAC 12A 125VAC;
voltage:	relay t73 dc12v;	Supply Ability:	400000 Piece/Pieces per Month;
Contact material:	AgSno;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
usage:	PCB;	Size:	1915.515.5mm;
Contact Load:	High Power;	Place of Origin:	Zhejiang China;
Usage:	PCB;	Theory:	Electromagnetic Relay;
Color:	Black/ Blue/ Yellow/ Green;	Brand Name:	HUNGO;
Protect Feature:	Sealed;	Port:	Ningbo/ Shanghai/ Shenzhen;
Model Number:	JQC-3F(T73);

JQC-3F T73 DC 5V 6V 9V 12V 24V 7A 10A 5PIN SPDT Sugar Cube Relay

OEM welcome

Product Description

What's the Specification of Our Relay ?

Contact Data:

Contact Material	AgsnO
Contact Form	1H(1A) 1Z(1C)
Contact Ratings	1Z(1C):12A/125VAC 7A/250VAC
Contact Resistance	100mΩ Max. at 6VDC 1A
Max Switching Current	15A
Max Switching Voltage	250VAC/ 30VDC
Max Switching Power	1750VAC/210W
Life Expectancy Electrical	100,000 Operations ( at 30 operations/minutes)
Life Expectancy Machanical	1,000,000 Operations

Coil Data:

+

Nominal Voltage (VDC)	Coil Resistance(Ω)		Max Operation Voltage(VDC)	Mix Release Voltage(VDC)	Max Applicable Voltage(VDC)
Nominal Voltage (VDC)	0.36W	0.53W	Max Operation Voltage(VDC)	Mix Release Voltage(VDC)	Max Applicable Voltage(VDC)
3	25	17	2.25	0.3	3.9
5	70	47	3.75	0.5	6.5
6	100	68	4.5	0.6	7.8
9	225	152	6.75	0.9	11.7
12	400	270	9	1.2	15.6
18	900	611	13.5	1.8	23.4
24	1600	1086	18	2.4	31.2

Charateristics:

+

Temperature Range	-40º~+70º
Vibration Resistance	10~55Hz, 1.5mm
Operations Extremes	10g
Damage Limits	100g
humidity	40%~85%
Insulation Resistance	100mΩ Min at 500VDC
Safety Standard	CQC CE
Dielectric Strength Between Open Contacts	750VAC( for one minute/sec)
Between Contacts and Coil	1500VAC( for one minute/sec)
Operate Time	10ms
Release Time	5ms
Weight	9.1g Approx

Back to Homepage

Product Pectures:

Main Product

Company Information

Packaging & Shipping

FAQ

Q: Are you the MANUFACTURER or Trader?

A: we are both the factory and trade company for switching power supply, as well as other products, the products are of high quality with most reasonable price.

Q: What is your MOQ?

A: the MOQ can be only 1pc, we suggest for wholesaler order for smaller order online, welcome to contact us for details.

Q: What is the LEAD TIME?

A: the lead time is usually 2-20 days, it depends on your exact product and quantity.

Q: Do you accept OEM?

A: Yes, it is highly welcome.
