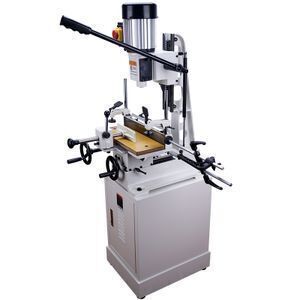

Mortising Machine Power Drills Square Hole Drilling for Woodworking Hollow Chisel Mortising Machine

Product details
Motor Speed:2800rpm;Warranty:Motor warranty for one year;
Marketing Type:New Product 2020;Place of Origin:China;
Application:woodworking drilling;Supply Ability:3000 Set/Sets per Month;
Drill Diameter:6-15mm;Machinery Test Report:Provided;
Power:1500W;Core Components:Motor;
Key Selling Points:Easy to Operate;Showroom Location:None;
Local Service Location:None;Condition:New;
Automatic Grade:Manual;Color:Silver grey;
Dimension(L*W*H):480*380*1500mm;Warranty of core components:Motor warranty for one year;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Construction works ,woodworking;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Voltage:220v;Brand Name:Tongchen;
Port:Shanghai;After Warranty Service:Online support;
Name:Door Lock Mortising Machine;Video outgoing-inspection:Provided;
Packaging Detail:wooden box package;
Product Description


Motor power

1500W

Rotate speed

2800rpm

Tenon knife

16mm

The size of drill

6.0-15mm

Diameter of the cutting tools

20mm

Drill chuck

3-16mm

Clamping range

145mm

Vertical working stroke

320mm

Left and right working stroke

175mm

Baffle size

400*350mm

Travel of spindle

320mm

Max clamping width

145mm

Drill stroke

190mm

Left and right stroke

175mm

Drilling depth

76mm

Before and after stroke

150mm

Work table size

400*148mm

Height

1500mm

Pillar size

88*15*480mm

Pedestal size

380*480*580mm

Net weight

110/119kg

Packing size

560*480*830mm
