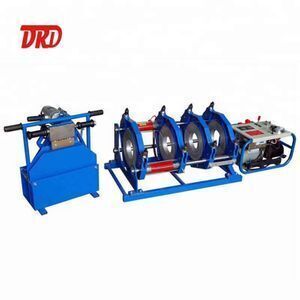

Hydraumatic type hdpe plastic pipe welding machine 90-315mm

Click here to contact

Product details

Welding method:	Butt fusion/ hot fusion;	Warranty:	1 Year;
Packing:	Standard polywood cases;	Weight:	107kg;
Welding range:	90-315mm;	Packaging Detail:	Standard Wooden Box. Hydraumatic type hdpe plastic pipe welding machine 90-315mm;
Frequency:	40.68MHz/27.12MHz;	Application:	Plastic pipe welding;
Port:	Tianjin Port;	Warranty:	1 Year;
After-sales Service Provided:	Free spare parts,Online support,Video technical support;	Function:	Power;
Usage:	Plastic Welding;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Color:	Customer's Requirement;	Place of Origin:	Tianjin China (Mainland);
Welding Area:	Depend;	Power:	5KW;
Brand Name:	DRD;	Applicable Industries:	Building Material Shops,Farms,Retail,Construction works ,Energy & Mining;
Dimensions:	standard;	Type:	Automatic Plastic Touch Welding Machine;
Delivery time:	within 5 days;	Product name:	Hydraumatic type hdpe plastic pipe welding machine 90-315mm;
Voltage:	220V/380V;	Supply Ability:	500 Set/Sets per Month Hydraumatic type hdpe plastic pipe welding machine 90-315mm;

Product Description

Hydraumatic type hdpe plastic pipe welding machine 90-315mm

The main parameters:

Welding Size:	Dn90,Dn110,Dn125, Dn140,Dn160, Dn180,Dn200, Dn250, Dn280, Dn315
Sealing Deviation:	≤0.3mm
Temperature Control Range:	0~300℃
Temperature Error:	±5℃
Operation Pressure of the Hydraulic System:	0~6Mpa
Power:	4.85KW/220V
Heating Power:	3KW/220V
Cutter Power:	1.1KW/220V
Hydraulic Power:	0.75KW/220V

Main parts:

Application and features:

♥Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop

♥Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.

♥Removable PTFE coated heating plate with high accurate temperature control system;

♥ Electric Planning Tool with reversible double cutting edge blades.

♥Hydraulic Unit provides welding machine with compressing power

♥ Be made of Aluminum material

♥Low starting pressure ensures reliable welding quality of small pipes.

♥ Temperature Controller and Timer, easy to know the exact time and temperature.

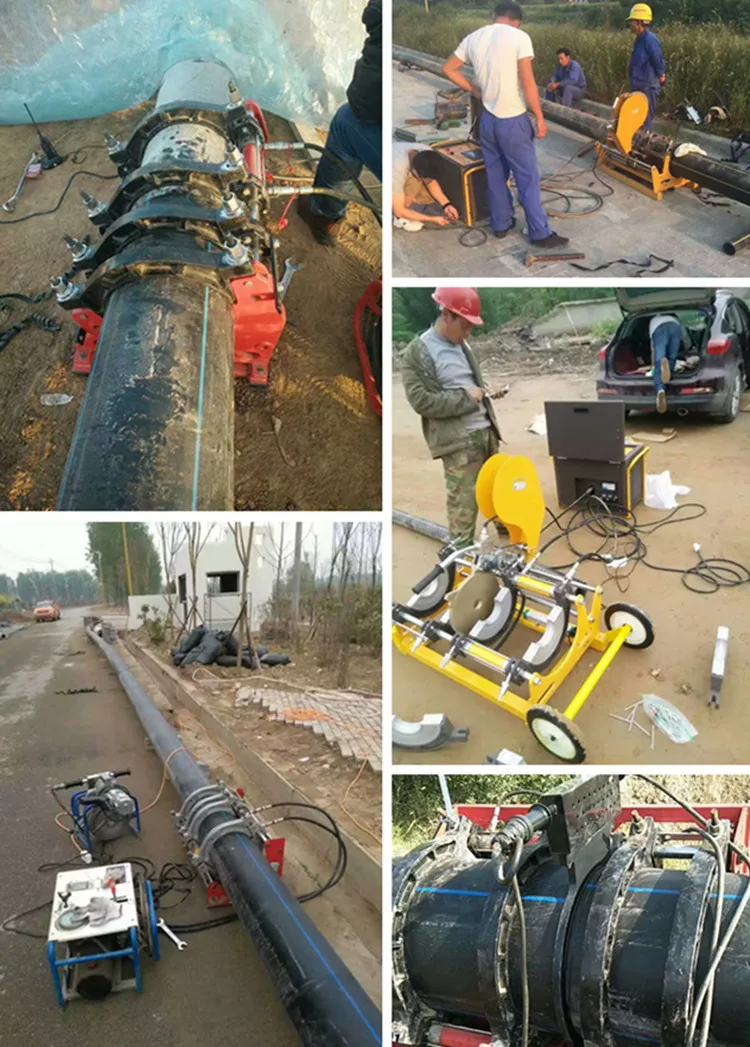

Welding process

Packaging & Shipping

Machine are well packed in polywood cases suit for Sea freight or Air freight

Our Services

Our advantage :

Professional factory, best quality,reasonable price and best after -sales service .

we are the manufacturer, we are the source. All accessories can be supplied by ourselves.

According to the customer’s needs, our designer can designer special types of welding machine. And color as customer’s request.

High output, delivery in time.
